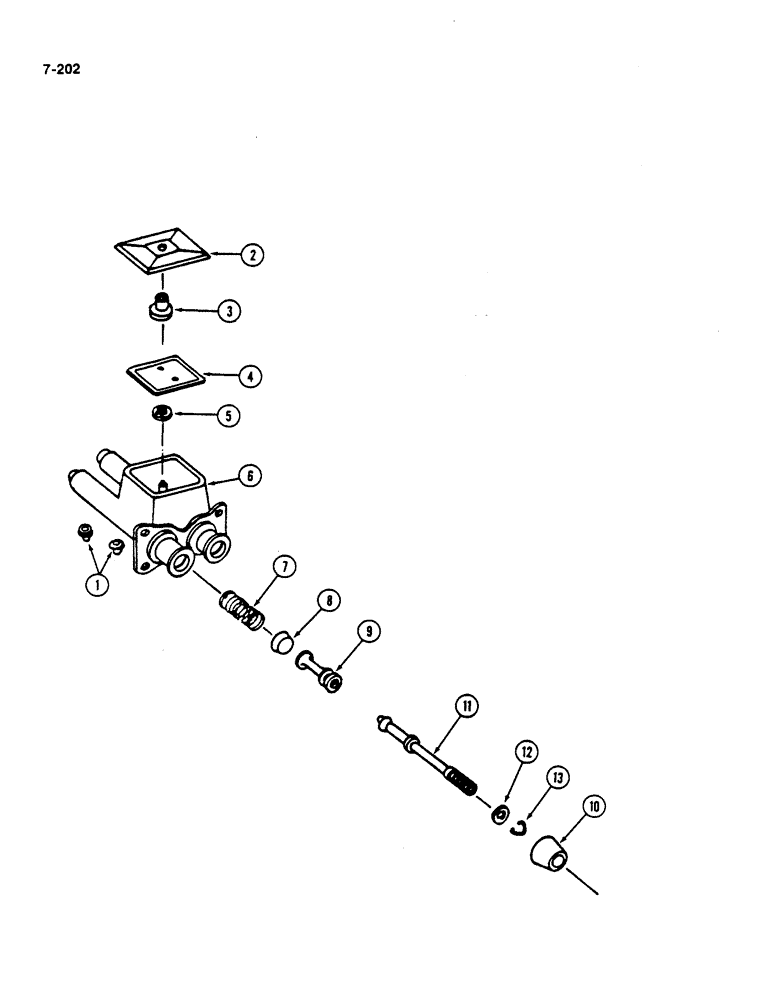

Запчасти Case IH 782 (7-202) - BRAKE MASTER CYLINDER LOW DRUM MACHINES P.I.N. 682 & AFTER HIGH DRUM MACHINES P.I.N. 2125 & AFTER (5.1) - BRAKES

222834C91

MASTER CYLINDER,124.46mm Stroke

CYLINDER ASSEMBLY, brake master

1шт.

1

222846C1

INSERT

- body

1шт.

2

222843C1

CAP

- filler

1шт.

180050

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

1шт.

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch (7 x 16 x 1 mm)

1шт.

3

NSS

NOT SOLD SEPARAT

SLEEVE - automatic adjuster (Order cylinder assembly 222834C91)

1шт.

4

222844C1

GASKET

- filler cap

1шт.

5

222845C1

WASHER

RING - external retaining

1шт.

6

NSS

NOT SOLD SEPARAT

BODY (Order cylinder 222834C91)

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING (Order cylinder 222834C91)

2шт.

8

NSS

NOT SOLD SEPARAT

CUP - piston (order cylinder 222834C91)

2шт.

9

NSS

NOT SOLD SEPARAT

PISTON - (Order cylinder 222834C91)

2шт.

10

NSS

NOT SOLD SEPARAT

BOOT - (Order cylinder 222834C91)

2шт.

11

222841C1

ROD

- push

2шт.

12

222842C1

WASHER

RETAINER - push rod

2шт.

13

NSS

NOT SOLD SEPARAT

RING - lock (Order cylinder 222834C91)

2шт.

222835C91

KIT

- cylinder repair (Consists of reference number 1, 2, 4, 5, 11 and 12)

1шт.
