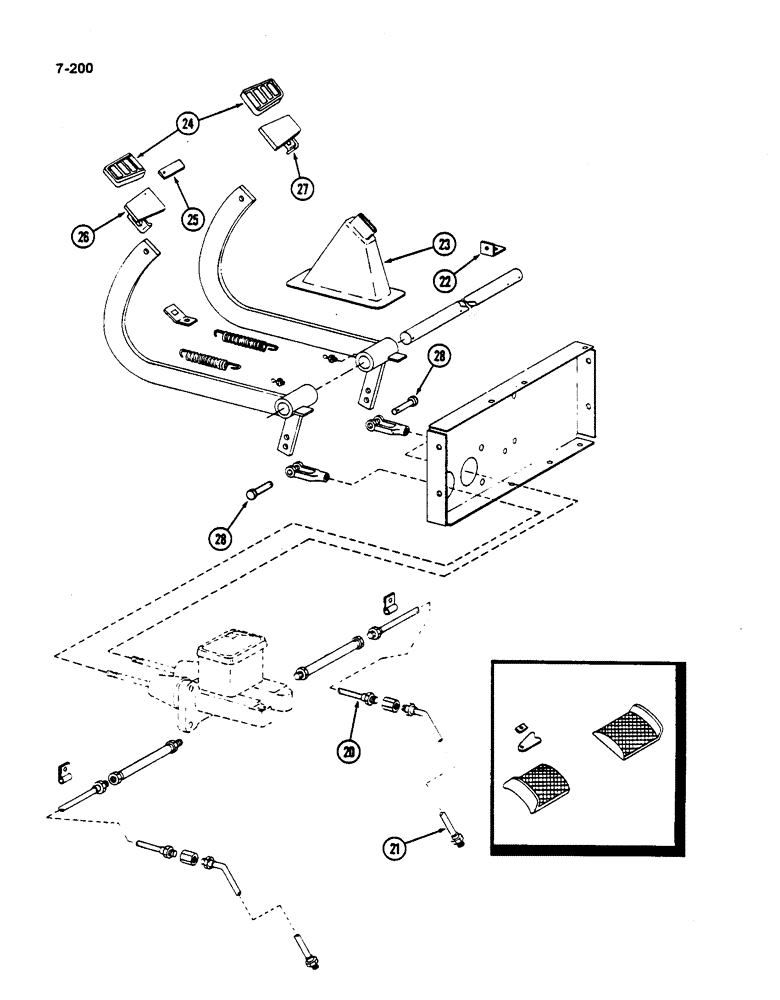

Запчасти Case IH 782 (7-200) - MASTER BRAKE CONTROL (5.1) - BRAKES

20

215997C1

TUBE

- brake upper right (Continued from Page 7-199)

1шт.

21

215996C1

TUBE

- brake lower right

1шт.

22

165900C1

ANGLE

CLIP - brake and clutch shaft

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

23

198074C1

ISOLATOR

BOOT - foot pedal

2шт.

24

863426R1

PAD

- brake pedal

2шт.

25

614251R1

BAR

- brake locking

1шт.

19938R1

PIN,1/8" x 7/8", Coiled

1шт.

26

163426C1

PEDAL

- brake left

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

27

163427C1

PEDAL

- brake right

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

29

20614R1

CLEVIS PIN,9.53mm OD x 34.14mm L

PIN - clevis, 3/8 x 1-11/32 inch

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.
