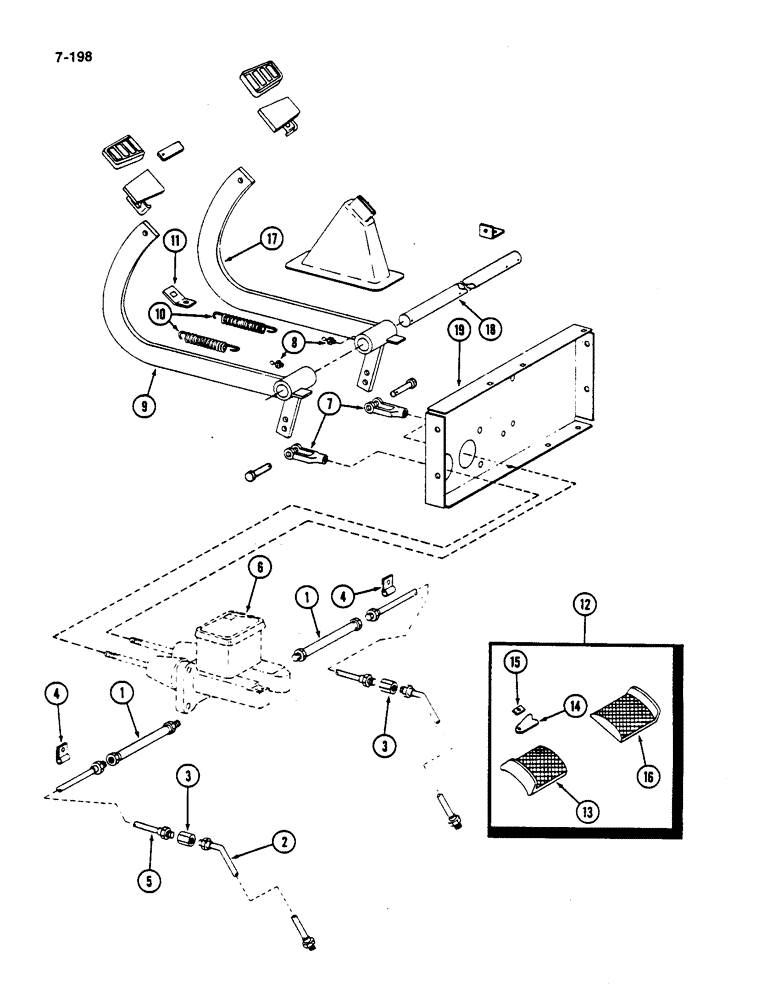

Запчасти Case IH 782 (7-198) - MASTER BRAKE CONTROL (5.1) - BRAKES

1

201902C1

HOSE ASSY.

HOSE - brake

2шт.

2

215995C1

TUBE

- brake lower left

1шт.

3

442336

SUPPORT TUBE

UNION - inverted flared tube, 7/16-24 inch thread

2шт.

4

299399C1

CLIP

CLAMP

6шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

5

215998C1

TUBE

- brake upper left

1шт.

6

REF

INSTRUCTION

CYLINDER ASSEMBLY - master brake (See Pages 7-203, 7-205)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - light adjustable rod end, 3/8-24 inch thread

2шт.

124925

JAM NUT,Jam, 3/8"-24, G5

2шт.

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch (10 x 21 x 1 mm)

2шт.

8

87414

LUBE NIPPLE,1/4" - 28

FITTING - self tapping grease, 1/4-28 inch thread

2шт.

9

672833R92

PEDAL

ARM - brake pedal left

1шт.

10

48599DA

SPRING

- brake pedal return

2шт.

11

662387R1

ANCHOR

CLIP - spring anchor

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - round head square neck, 5/16 NC x 1/2 inch

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

80298C91

PACKAGE

KIT - brake pedal (Machines build, Serial Range: prior-1982)

1шт.

13

NSS

NOT SOLD SEPARAT

PAD ASSEMBLY - brake pedal left

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

NSS

NOT SOLD SEPARAT

LOCK

1шт.

23329R1

RIVET - binding head, 1/4 x 1-1/4 inch

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING - lock

1шт.

16

NSS

NOT SOLD SEPARAT

PAD - brake pedal right

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

209901C1

PEDAL

ARM - brake pedal right

1шт.

18

209903C1

ROD

- brake and clutch

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

3шт.

21762R1

WASHER

- flat, 29/32 x 1-3/8 x 1/8 (23 x 35 x 3 mm)

2шт.

19

209904C1

CHANNEL

- platform and brake cylinder support

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

120376

NUT,5/16"-18, G5

14шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

8шт.
