(9-432) - BUMPER RAIL ATTACHMENT, LOW DRUM P.I.N. 682 AND AFTER, HIGH DRUM P.I.N. 2125 AND AFTER

Запчасти Case IH 782 (9-432) - BUMPER RAIL ATTACHMENT, LOW DRUM P.I.N. 682 AND AFTER, HIGH DRUM P.I.N. 2125 AND AFTER (09) - CHASSIS ATTACHMENTS

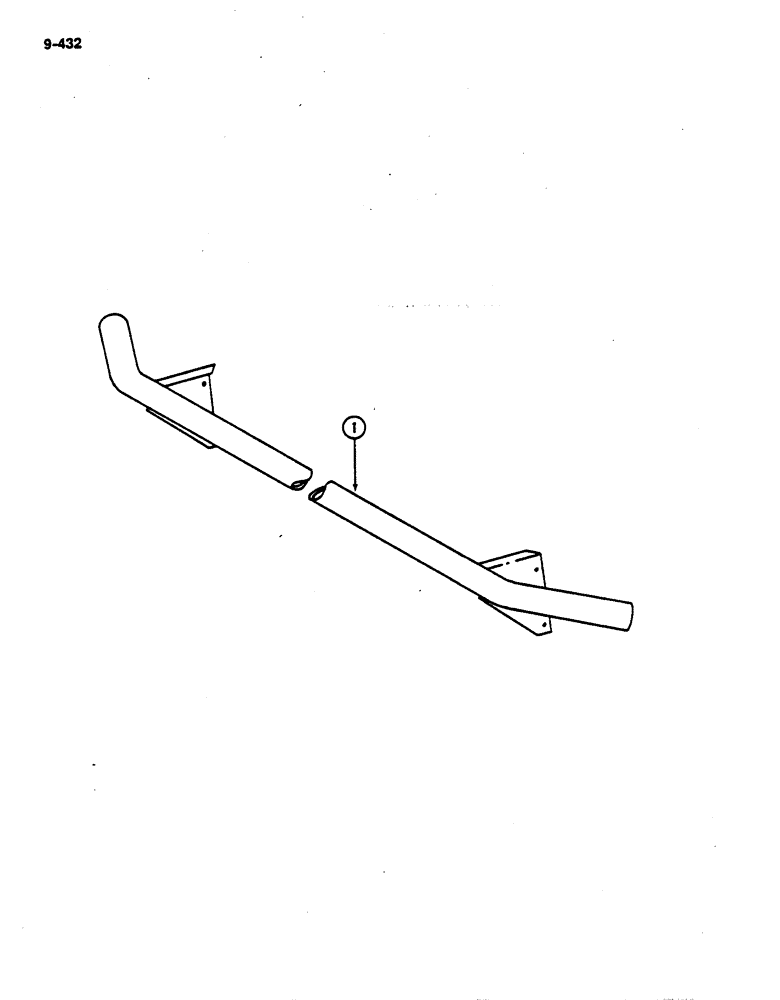

Схема запчастей Case IH 782 - (9-432) - BUMPER RAIL ATTACHMENT, LOW DRUM P.I.N. 682 AND AFTER, HIGH DRUM P.I.N. 2125 AND AFTER (09) - CHASSIS ATTACHMENTS
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

222864C1

RAIL

- bumper

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

Выбрано товаров: 4
