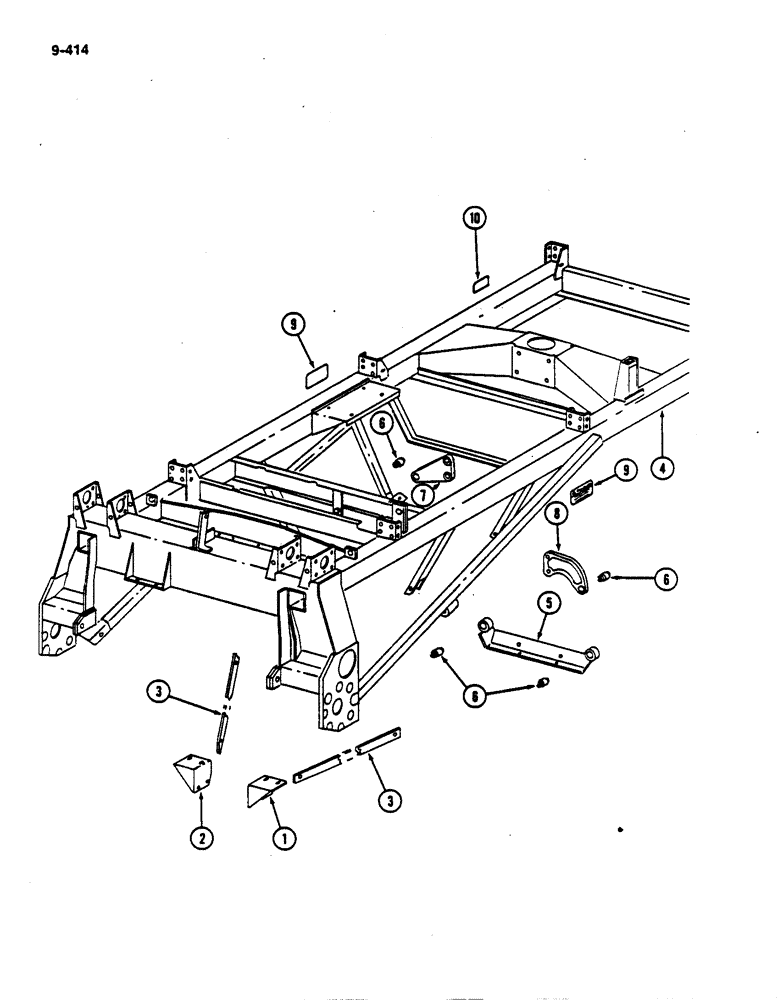

Запчасти Case IH 782 (9-414) - MAIN FRAME AND RELATED PARTS (09) - CHASSIS ATTACHMENTS

1

216209C1

SUPPORT

- transmission left

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

2

216210C1

SUPPORT - transmission right

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

3

216212C1

BAR

- support brace

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

25645R1

WASHER,17/32" x 1 1/16" x .1818", HDN

- hardened flat, 17/32 x 1-1/16 x 3/16 inch (13 x 27 x 5 mm)

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

4шт.

120396

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch (13 x 27 x 2 mm)

2шт.

4

221900C91

FRAME

W/DECAL - main (Low drum P.I.N. 682 and after) (High drum P.I.N. 2125 and after)

1шт.

4

221708C91

FRAME W/DECAL - main (Replaces 216484C91 by also ordering two pins 221667C1) (Low drum P.I.N. 507 thru 681) (High drum P.I.N. 507 thru 2124)

1шт.

5

214545C1

BRACKET

- engine front support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

6шт.

25526R1

NUT,1/2"-13, G8

- hex, 1/2 inch NC

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

6

672870R1

BUSHING

- engine support rubber

4шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

- hex, 5/8 NC x 3 inch

4шт.

9413969

NUT,5/8"-11, GB

- hex lock, 5/8 inch NC

4шт.

7

672872R1

SUPPORT

BRACKET - engine rear right support

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

672871R1

SUPPORT

BRACKET - engine rear left support

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

210600C1

DECAL

- danger

2шт.

10

204166C1

DECAL

- warning

1шт.
