Запчасти Case IH 782 (9-406) - DRUM DOWN STOP CONTROL, LOW DRUM P.I.N. 507 THRU 681, HIGH DRUM P.I.N. 507 THRU 2124 (09) - CHASSIS ATTACHMENTS

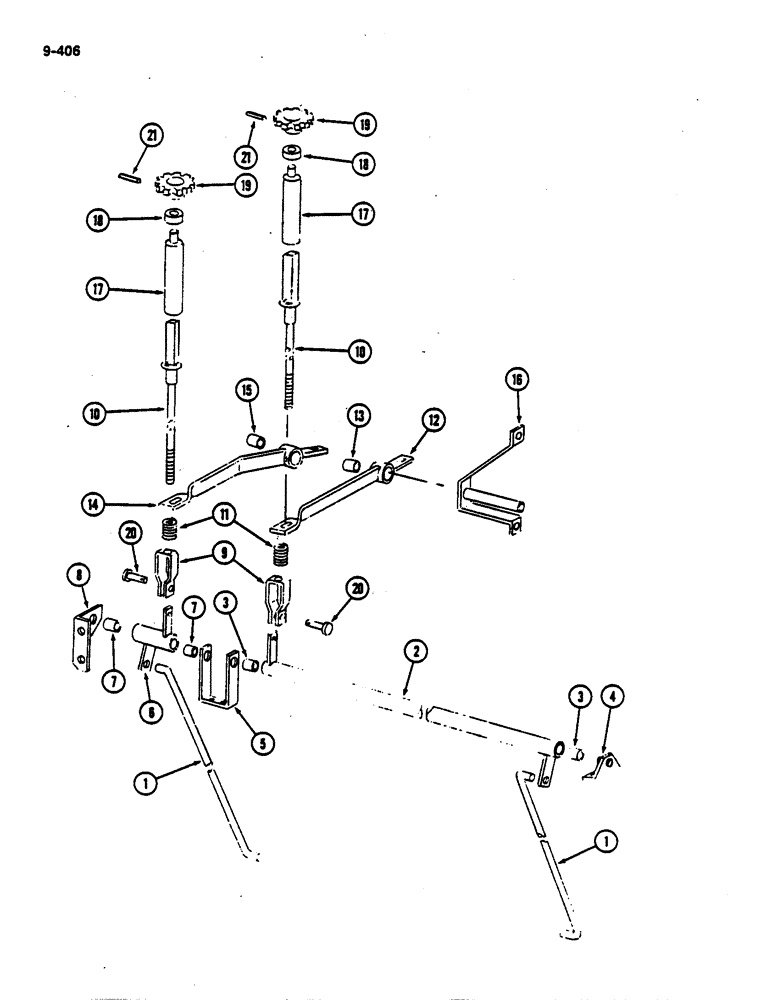

Схема запчастей Case IH 782 - (9-406) - DRUM DOWN STOP CONTROL, LOW DRUM P.I.N. 507 THRU 681, HIGH DRUM P.I.N. 507 THRU 2124 (09) - CHASSIS ATTACHMENTS
5
1
6
15
2
11
13
3
10
12
21
18
21
1
14
20
17
9
3
10
7
20
17
8
19
18
16
4
7
19

Артикул

Название

Примечание

Количество

1

215278C1

ROD - lower

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

2

215274C91

ROCKSHAFT ASSEMBLY - left

1шт.

3

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

2шт.

4

215239C1

SUPPORT

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

215236C1

BRACKET - pivot

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

6

215271C91

ROCKSHAFT ASSEMBLY - right

1шт.

7

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

1шт.

8

215241C1

SUPPORT - pivot

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

9

215261C1

CLEVIS

2шт.

10

215276C1

CONTROL ASSEMBLY

2шт.

120376

NUT,5/16"-18, G5

4шт.

557265R1

WASHER

- flat, 11/32 x 1 x 7/64 inch (9 x 25 3mm)

2шт.

11

514726R2

SPRING

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

12

215266C91

ROCKSHAFT ASSEMBLY - left

1шт.

13

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

1шт.

14

215269C91

ROCKSHAFT ASSEMBLY - right

1шт.

15

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

1шт.

16

215253C1

SUPPORT

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

17

672680R91

ROD

- upper

2шт.

18

30460V

SPACER

2шт.

19

672684R1

KNOB

2шт.

20

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 0.940 inch

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

2

23296R1

PIN - spring 1/8 x 3/4 inch

2шт.

Выбрано товаров: 37
