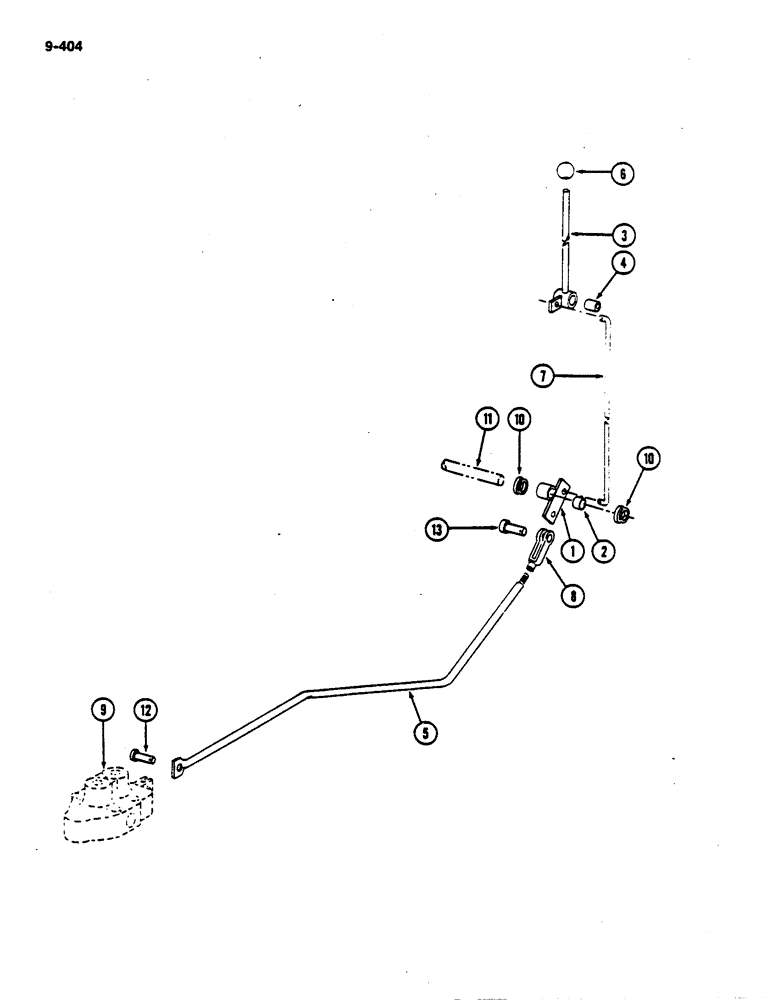

Запчасти Case IH 782 (9-404) - BASKET DISTRIBUTOR CONTROL (09) - CHASSIS ATTACHMENTS

1

214636C91

LEVER

ASSEMBLY - valve rockshaft

1шт.

2

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

1шт.

3

210126C91

LEVER

ASSEMBLY - cotton distributor valve

1шт.

4

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

1шт.

5

214926C1

ROD ASSEMBLY - basket distributor (Machines without hydraulic drum engage)

1шт.

5

216476C2

ROD ASSEMBLY - basket distributor (Machines with hydraulic drum engage)

1шт.

6

198936C1

KNOB

- lever

1шт.

7

214891C1

ROD - valve control upper

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

8

104037

CLEVIS

- adjustable rod end, 5/16 inch thread

1шт.

120368

NUT,5/16"-24, G5

1шт.

9

210295C91

VALVE

- basket distributor (See Page 8-XXX)

1шт.

10

1322910C1

CLAMP

- hose

2шт.

11

214616C1

ROD

- control rockshaft pivot

1шт.

12

26114R1

CLEVIS PIN,1/4" x 1.219"

PIN - clevis, 1/4 x 1-1/4 inch (Machines without hydraulic drum engage)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), (Machines with hydraulic drum engage) 1/8" x 3/4"

1шт.

12

27329R1

CLEVIS PIN,4.78mm OD x 29.26mm L

PIN - clevis, 3/16 x 1.152 inch (Machines with hydraulic drum engage)

1шт.

103363

PIN, SPLIT (COTTER)

PIN - cotter, 1/16 x 1 inch

1шт.

13

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x .0.940 inch

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.
