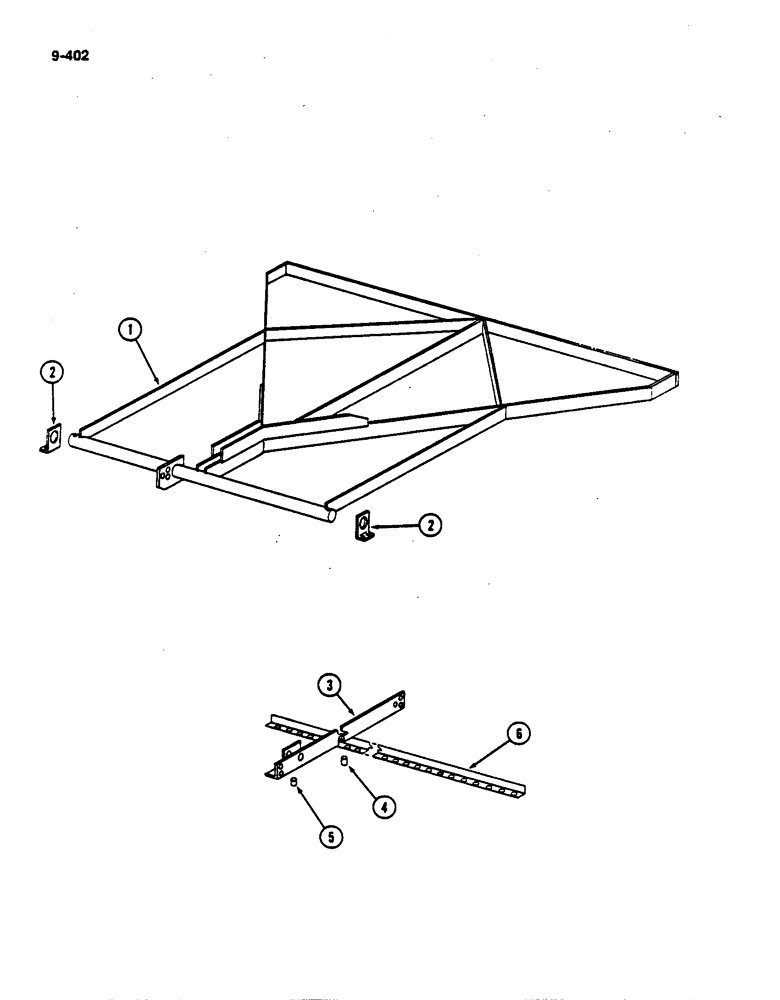

Запчасти Case IH 782 (9-402) - BASKET DISTRIBUTOR (09) - CHASSIS ATTACHMENTS

1

215357C2

DISTRIBUTOR

- compactor vane

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT - hex, 7/16 NC x 1-1/4 inch

3шт.

NLS

NO LONGER SERVICED

NUT - hex, 7/16 inch NC 3

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

137303

COTTER PIN,1/4" x 2 1/4"

PIN, SPLIT (COTTER), 1/4" x 2 1/4"

2шт.

2

214602C1

ANGLE

- compactor pivot

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT - hex, 7/16 NC x 1-1/4

3шт.

3

221752C2

ANGLE

ANCHOR - angle cylinder (Low drum P.I.N. 682 and after) (High drum P.I.N. 2125 and after)

1шт.

3

214601C2

ANCHOR - angle cylinder (Low drum P.I.N. 507 thru 681) (High drum P.I.N. 507 thru 2124)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

4

K11064

SPACER,3/8" Pipe x 1 1/4"

6шт.

5

358285R1

SPACER,3/8" Pipe x 1 3/8"

2шт.

6

214654C1

ANGLE

- basket bottom support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

514026R1

SPACER - pipe, 1 x 1-1/8 inch

1шт.

21788R1

WASHER

- flat, 1-1/32 x 1-7/16 x 3/64 inch (26 x 37 x 1mm)

1шт.
