Запчасти Case IH 782 (9-394) - FAN DRIVE AND CONTROLS (09) - CHASSIS ATTACHMENTS

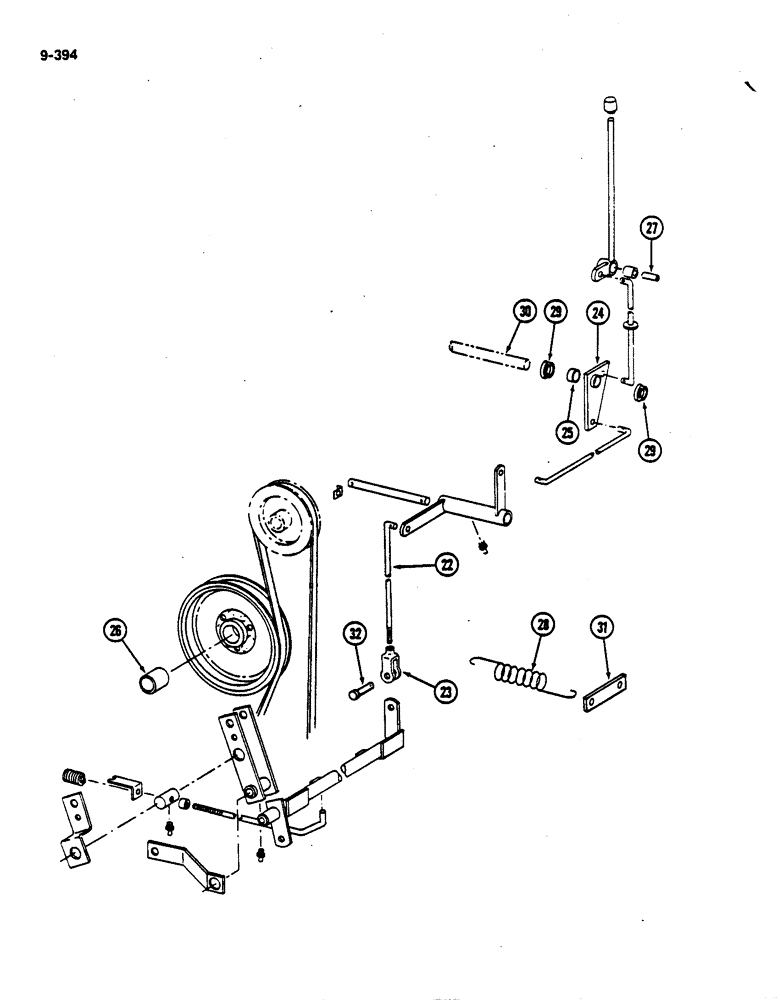

Схема запчастей Case IH 782 - (9-394) - FAN DRIVE AND CONTROLS (09) - CHASSIS ATTACHMENTS
29
25
23
28
32
26
30
24
27
29
22
31

Артикул

Название

Примечание

Количество

22

214634C2

ROD

- fan lower control (Continued from Page 9-393)

1шт.

23

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable rod end, 3/8-24 inch thread

1шт.

24

214614C91

ARM

ASSEMBLY - fan lever front

1шт.

25

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

1шт.

26

156064C1

SPACER

BUSHING

1шт.

22258R1

WASHER

- flat, 21/32 x 1 x 1/32 inch (17 x 25 x 1mm)

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8-16 NC x 1-3/4 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- flat, 21/32 x 1-5/16 x 5/64 inch (17 x 33 x 2mm)

2шт.

27

668075R1

WASHER

SPACER - fan idler

2шт.

28

946929R1

SPRING

- fan drive linkage

1шт.

29

1322910C1

CLAMP

- hose

2шт.

30

214616C1

ROD

- control rockshaft pivot

1шт.

31

1322913C1

BAR

- spring support

1шт.

32

138084

SPLIT PIN/SAFETY PIN

PIN - clevis, 3/8 x 1-1/16 inch

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

Выбрано товаров: 17
