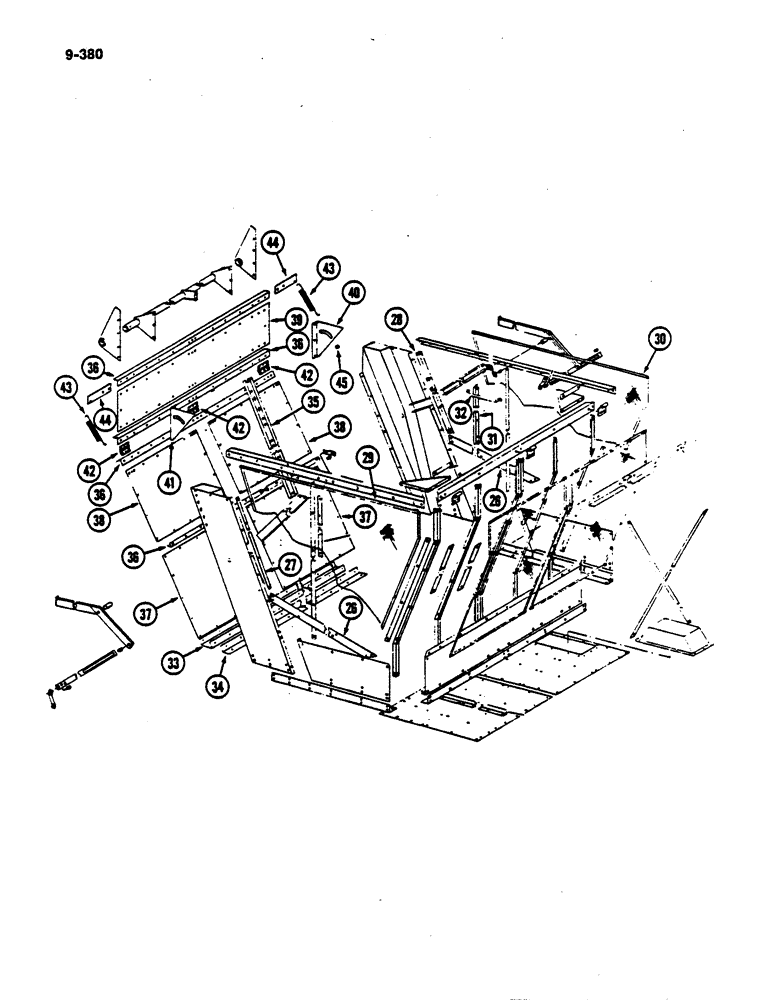

Запчасти Case IH 782 (9-380) - BASKET, LOW DRUM P.I.N. 682 AND AFTER, HIGH DRUM P.I.N. 2125 AND AFTER (09) - CHASSIS ATTACHMENTS

221684C91

BASKET ASSEMBLY (Continued from Page 9-379)

1шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

26

214655C1

SUPPORT

- basket diagonal

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

27

214586C1

ANGLE

- basket mesh support left

1шт.

28

215542C1

ANGLE

- basket mesh support right

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

29

214733C1

SCREEN

- basket end mesh rear

1шт.

30

214734C1

SCREEN

- basket end mesh front

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

14шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

12шт.

120377

NUT,3/8" - 16, Gr 5

26шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

26шт.

614452R1

WASHER

- flat, 13/32 x 1-1/4 x 3/32 inch (10 x 32 x 2 mm)

56шт.

31

216048C1

ANGLE

- step support

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

477589R1

WASHER

- flat, 13/32 x 1-1/2 x 7/64 inch (10 x 38 x 3 mm)

1шт.

32

216049C1

SUPPORT

- step

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

477589R1

WASHER

- flat, 13/32 x 1-1/2 x 7/64 inch (10 x 38 x 3 mm)

8шт.

33

221109C1

SUPPORT

- basket sloping side

1шт.

34

214501C1

SUPPORT

- sloping side bottom

1шт.

35

221093C1

CHANNEL

- sloping side center

1шт.

36

221106C1

ANGLE

- basket sloping side center

4шт.

37

214502C1

PLATE

- basket sloping side

2шт.

38

221107C1

PLATE

- basket side top

2шт.

39

221578C1

SHEET

- filler basket

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

98шт.

120377

NUT,3/8" - 16, Gr 5

98шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

98шт.

20803R1

WASHER

- flat, 13/32 x 1 x 7/64 inch (10 x 25 x 3 mm)

2шт.

40

221592C1

SUPPORT

- angle filler sheet end front

1шт.

41

221593C1

SUPPORT

- angle filler sheet end rear

1шт.

42

10810R

HINGE

3шт.

43

655919R1

SPRING

2шт.

44

222746C1

BAR

- spring anchor

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

45

27251K

SPACER,5/8" Tube x 7/16"

- 13/32 x 5/8 x 7/16 inch (10 x 16 x 11 mm)

2шт.

27701R1

WASHER

- flat, 13/32 x 1-3/4 x 7/64 inch (10 x 44 x 3 mm)

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.
