Запчасти Case IH 782 (9-356) - DRUM HEIGHT CONTROL ACTUATING PARTS (09) - CHASSIS ATTACHMENTS

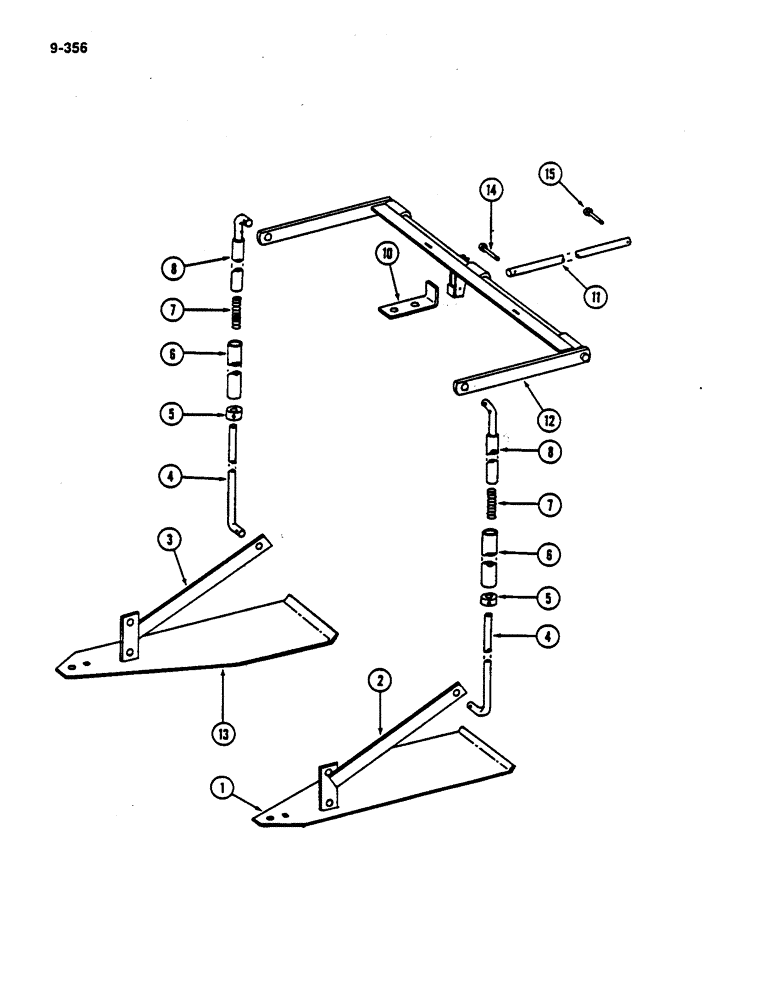

Схема запчастей Case IH 782 - (9-356) - DRUM HEIGHT CONTROL ACTUATING PARTS (09) - CHASSIS ATTACHMENTS
6
13
7
4
5
14
8
1
5
3
10
8
4
2
11
12
15
6
7

Артикул

Название

Примечание

Количество

1

673908R1

PLATE

- drum height control left

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

- hex, 3/8 NC x 1 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

658970R1

BOLT

- hex, 1/2 NC x 2-1/4 inch

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

- hex jam, 1/2 inch NC

2шт.

2

669045R91

BRACKET

- offset left

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- hex, 5/16 NC x 1 inch

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

669046R91

BRACKET

- offset right

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- hex, 5/16 NC x 1 inch

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

669075R1

ROD

- lower push (Low drum)

4шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

4шт.

4

669057R1

ROD

lower push (High drum)

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

5

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW - lower push rod lock

4шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

BOLT - square head cone point set, 1/2 NC x 5/8 inch

4шт.

6

669058R1

TUBE,30.2 mm OD, 406.5 mm Length

- spring cover

4шт.

7

523677R1

SPRING

- push rod

4шт.

8

670890R91

ROD

- upper push

4шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

10

673514R1

STOP - drum height control rockshaft

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

- hex, 3/8 NC x 1 inch

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

181639

- hex, 3/8 NF x 1-1/4 inch

2шт.

120369

NUT,3/8"-24, G5

2шт.

11

673516R1

STEM

ROD - drum height control valve

2шт.

3479

WASHER,7/32" x 9/16" x .060"

- flat, 7/32 x 9/16 x 3/64 inch (6 x 14 x 1 mm)

2шт.

12

209561C1

ROCKSHAFT

- drum height control left

1шт.

12

209562C1

ROCKSHAFT

- drum height control right

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT - hex, 3/8 NC x 3/4 inch

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13

202102C1

LARGE PLATE

PLATE - drum height control right

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

- hex, 3/8 NC x 1 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

658970R1

BOLT

- hex, 1/2 NC x 2-1/4 inch

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

- hex jam, 1/2 inch NC

2шт.

14

20286R1

SPLIT PIN/SAFETY PIN

PIN - clevis, 3/16 x 1-1/32 inch

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

15

20155R1

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

Выбрано товаров: 43
