Запчасти Case IH 782 (9-346) - PICKER BAR AND SPINDLES (09) - CHASSIS ATTACHMENTS

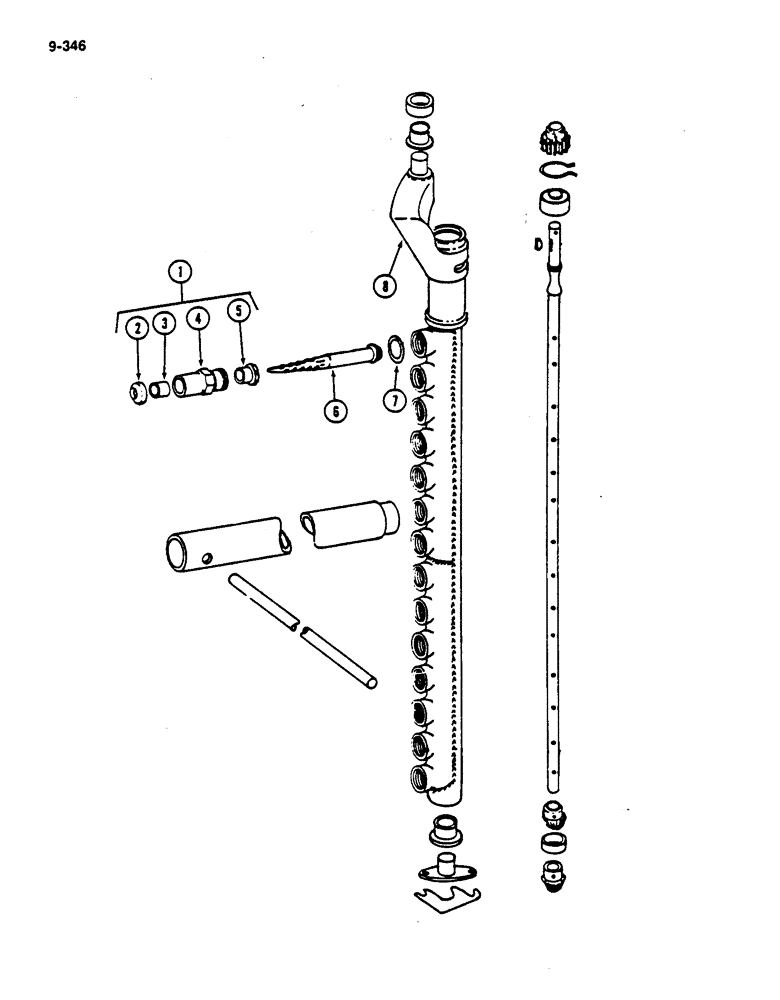

Схема запчастей Case IH 782 - (9-346) - PICKER BAR AND SPINDLES (09) - CHASSIS ATTACHMENTS
2
4
5
8
6
1
7
3

Артикул

Название

Примечание

Количество

1

661418R11

NUT

ASSEMBLY - spindle left (Left low drum) (Right low drum) (Left high drum) (Right high drum)

240шт.

1

661419R11

NUT

ASSEMBLY - spindle right (Left low drum) (Right low drum) (Left high drum) (Right high drum)

280шт.

2

661420R1

SHIELD

- picker spindle (Low drum) (High drum)

104шт.

3

10418R

BUSHING,14.15mm ID x 19.11mm OD x 19.05mm L

- spindle nut (Low drum) (High drum)

104шт.

4

661418R1

NUT

- picker spindle left (Left low drum) (Right low drum) (Left high drum) (Right high drum)

240шт.

4

661419R1

NUT

- picker spindle right (Left low drum) (Right low drum) (Left high drum) (Right high drum)

240шт.

5

656788R4

BUSHING,14.15mm ID x 19.11mm OD x 19.05mm L

- flanged (Low drum) (High drum)

104шт.

6

662606R2

SPINDLE

- picker left (Left low drum) (Right low drum) (Left high drum) (Right high drum)

24-шт.

6

662607R2

SPINDLE

- picker right (Left low drum) (Right low drum) (Left high drum) (Right high drum)

280шт.

7

11264R

SHIM,25.77mm ID x 31.75mm OD x 0.2mm Thk

(0.008"), Spindle nut (Low drum) (High drum) 0.2032mm Thk

104шт.

7

674980R2

SHIM,25.77mm ID x 31.75mm OD x 0.31mm Thk

(0.012"), Spindle nut (Low drum) (High drum) 0.3048mm Thk

104шт.

7

202099C1

SPACER

SHIM - spindle nut, 0.004 inch (0.102 mm)

1шт.

8

215726C1

BAR - picker left (Left low drum) (Right low drum)

12шт.

8

215727C1

BAR

- picker right (Left low drum) (Right low drum)

14шт.

8

215728C1

BAR

- picker left (Left high drum) (Right high drum)

12шт.

8

215729C1

BAR

- picker right (Left high drum) (Right high drum)

14шт.

8

215745C1

ARM

- picker bar cam left (Left low and high drum) (Right low and high drum)

12шт.

8

215746C1

ARM

- picker bar cam right (Left low and high drum) (Right low and high drum)

14шт.

Выбрано товаров: 18
