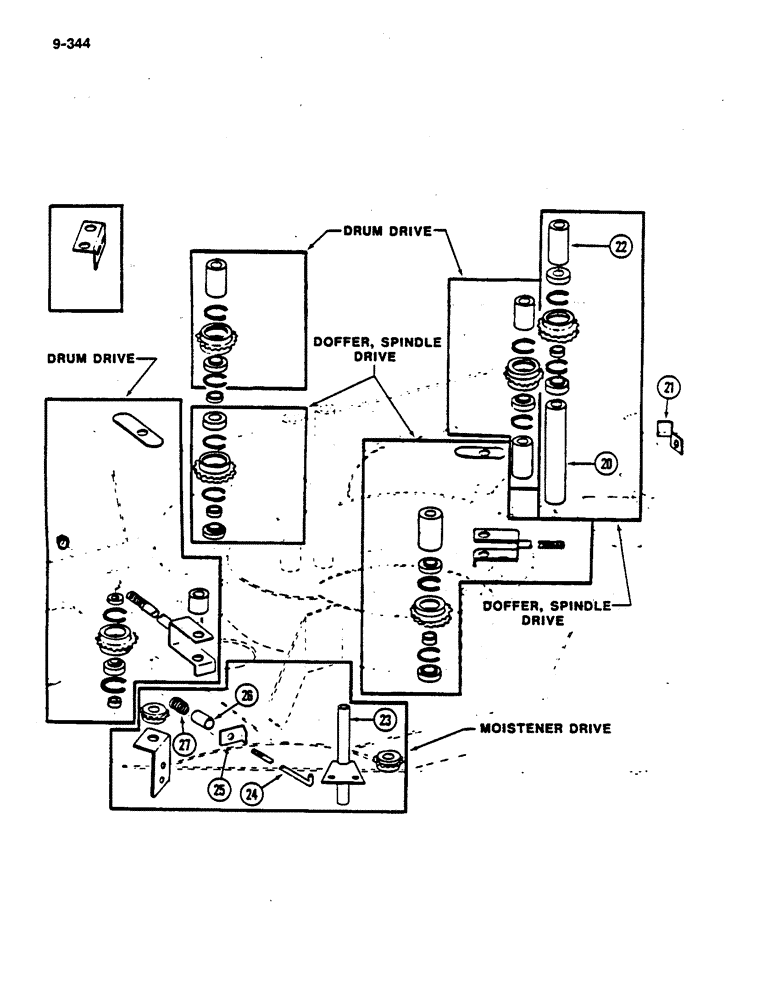

Запчасти Case IH 782 (9-344) - IDLER SPROCKETS (09) - CHASSIS ATTACHMENTS

20

665417R1

SPACER

- idler sprocket lower (Continued from Page 9-343)

1шт.

21

672455R1

CLIP

- spindle and Doffer drive idler bolt

2шт.

22

665416R1

SPACER

- idler sprocket upper

2шт.

23

222762C1

BRACKET

- chain idler

1шт.

24

1259980C1

ROD

- adjusting

1шт.

495-11053

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 5/64 inch (13 x 27 x 2 mm)

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch (13 x 32 x 3 mm)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

1765D

LINK

- #35 single pitch connecting

1шт.

25

1259981C1

SUPPORT

- spacer

1шт.

26

113068C1

SPACER

BUSHING

1шт.

27

619410C1

VALVE SPRING

SPRING - compression

1шт.

223772C91

KIT - moistener chain idler

1шт.

222762C1

BRACKET

- idler adjusting

2шт.

1259980C1

ROD

- idler adjusting

1шт.

495-11053

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 inch (13 x 27 x 2 mm)

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch (13 x 32 x 3 mm)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

1259981C1

SUPPORT

ANGLE - spring support

2шт.

113068C1

SPACER

- spring

2шт.

619410C1

VALVE SPRING

SPRING - compression

2шт.

669845R1

ANGLE

SUPPORT - stationary idler

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

469668R1

WASHER

- flat, 13/32 x 47/64 x 1/16 inch (10 x 19 x 2 mm)

4шт.

669847R91

SPROCKET ASSY.

SPROCKET - moistener drive idler, 20 teeth

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex, 1/2 NC x 2 inch

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.
