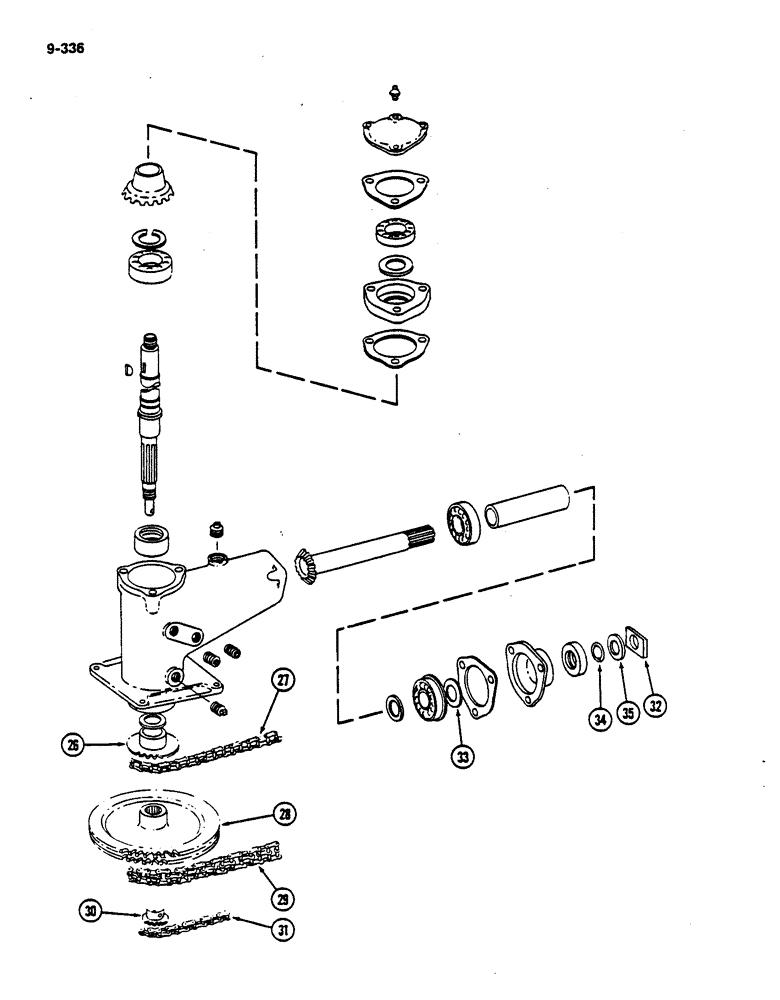

Запчасти Case IH 782 (9-336) - LEFT PICKER DRUM DRIVE (09) - CHASSIS ATTACHMENTS

26

668847R1

SPROCKET ASSY.

SPROCKET - picker drum drive 12 teeth (Continued from Page 9-335)

1шт.

27

672449R91

CHAIN (AG)

CHAIN - drum drive

1шт.

1310D

LINK

- #50 single pitch connecting

1шт.

28

662503R1

SPROCKET ASSY.

SPROCKET - spindle and doffer drive 38 teeth

1шт.

29

673489R1

CHAIN (AG)

CHAIN - spindle and doffer drive

1шт.

1378D

CHAIN LINK

LINK - #50 single pitch connecting

1шт.

30

10169RA

SPROCKET ASSY.

SPROCKET - water distributor drive 10 teeth

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

Pin, 1/4" x 7/8", Slotted

1шт.

31

672485R91

CHAIN (AG)

CHAIN - moistener drive

1шт.

32

10176RA

WASHER

- retainer

1шт.

33

595130R1

WASHER

- hardened flat, 1-5/32 x 1-3/4 x 1/8 inch (29 x 44 x 3 mm)

1шт.

34

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- 5/8 ID x 3/32 inch width (16 x 2 mm width)

2шт.

35

669017R1

GASKET

- gear box

1шт.
