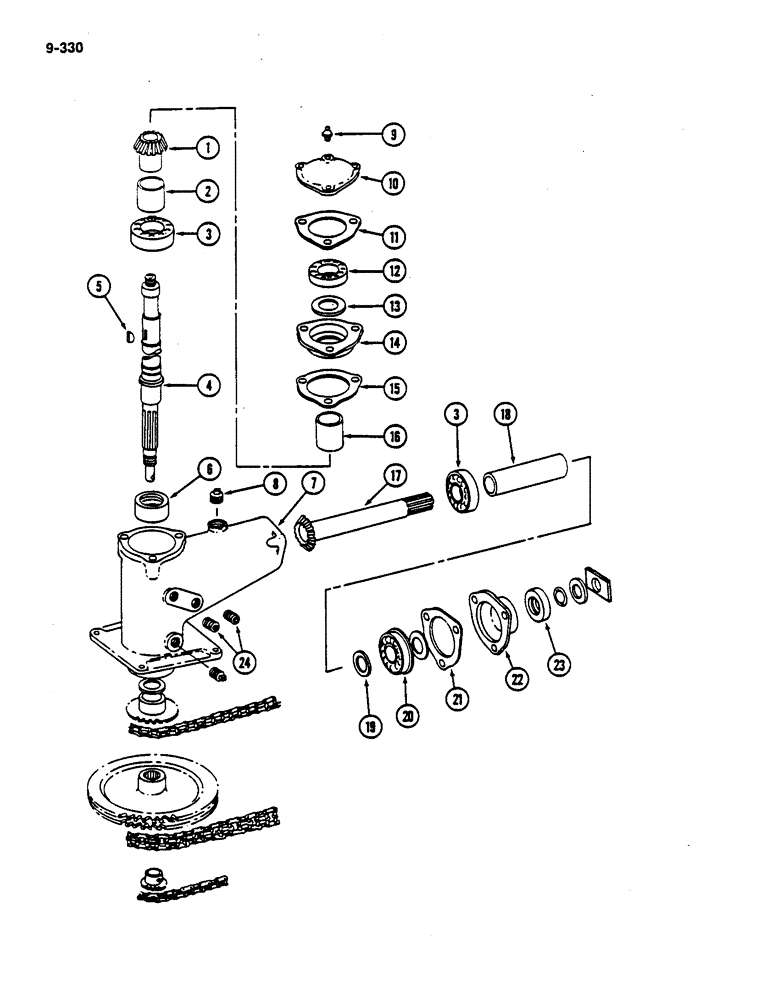

Запчасти Case IH 782 (9-330) - RIGHT PICKER DRUM DRIVE (09) - CHASSIS ATTACHMENTS

1

656143R2

GEAR

- picker drive

1шт.

2

656165R1

SPACER

- vertical shaft gear lower

1шт.

3

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING - picker drive pinion and sprocket

2шт.

656144R3

SHAFT

- picker drive sprocket

1шт.

22480R1

WASHER

- flat, 29/32 x 1-1/2 x 1/32 inch (23 x 38 x 1 mm)

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT - hex jam slotted, 7/8 inch NF

1шт.

70121D

NUT

- hex jam slotted, 1 inch NF

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

5

IH124555

WOODRUFF KEY,#16, 3/16" x 1 1/8", HT

- Woodruff, 3/16 x 1-1/8 inch

1шт.

6

659711R91

SEAL

- drive shaft oil

1шт.

7

656140R1

HOUSING

- picker drive

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

8

10728P

PLUG

- square head pipe, 1/2 inch

1шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

10

15R

CAP

- picker drive shaft bearing

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch (Right)

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

(Left) Hex, 3/8"-16 x 1 7/8", G5

3шт.

11

656630R1

GASKET

- bearing cap

1шт.

12

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING - drive sprocket shaft

1шт.

13

10156R

SHIM

- drive gear, 0.015 inch (0.381 mm)

1шт.

13

10157R

SHIM

- drive gear, 0.101 inch (0.254 mm)

1шт.

13

216499C1

SHIM

- drive gear, 0.007 inch (0.178 mm)

1шт.

14

14RA

RETAINER

- bearing

1шт.

15

656630R1

GASKET

- bearing retainer

1шт.

16

656164R1

SPACER

- vertical shaft gear upper

1шт.

17

656142R3

SHAFT

- picker drive pinion

1шт.

271583

SUPPORT

- hex, 5/8 NF x 1-1/2 inch

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

18

656163R1

SPACER

- picker drive pinion

1шт.

19

656166R1

SHIM

- picker drive pinion, 0.015 inch (0.381 mm)

1шт.

19

656167R1

SHIM

- picker drive pinion, 0.010 inch (0.254 mm)

1шт.

19

216498C1

SHIM

- picker drive pinion, 0.007 inch (0.178 mm)

1шт.

20

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING - pinion shaft

1шт.

21

656168R1

GASKET

- pinion shaft bearing

1шт.

22

656141R1

RETAINER

- pinion shaft bearing

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

23

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

- pinion shaft oil

1шт.

24

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head pipe, 1/2 inch

1шт.
