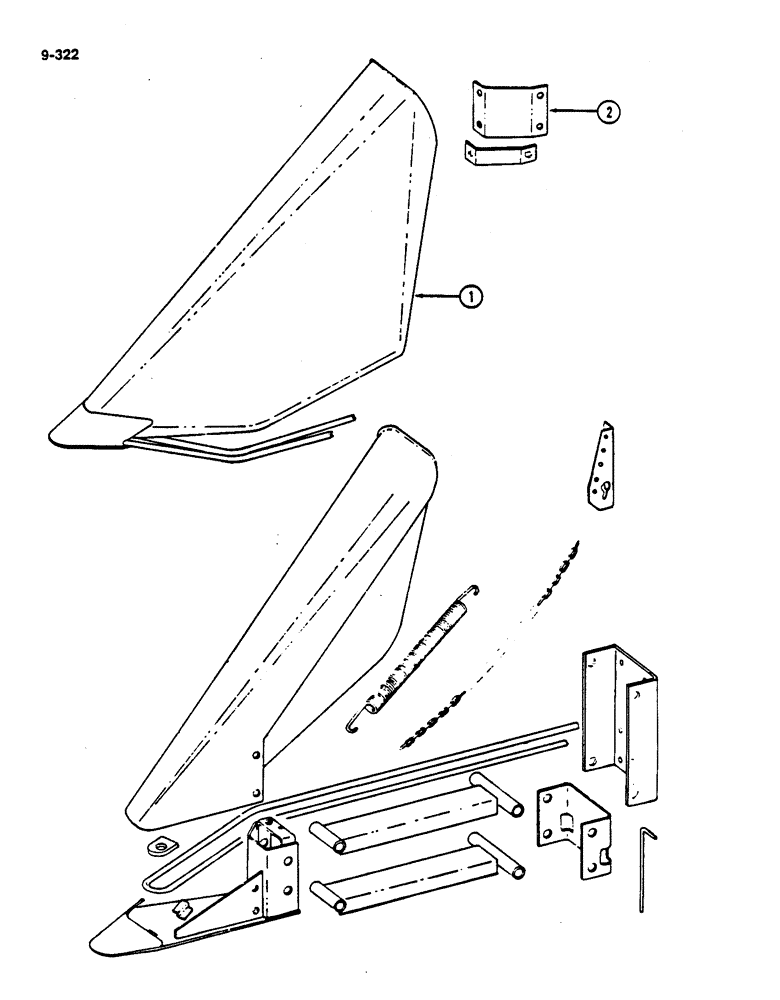

Запчасти Case IH 782 (9-322) - PLANT LIFTERS (09) - CHASSIS ATTACHMENTS

1

655916R91

GUIDE

BODY - plant lifter (Left inner and right outer low drum)

1шт.

1

674808R92

BODY - plant lifter (Left inner and right outer low drum)

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

1

658024R91

TAPPET

LIFTER ASSEMBLY - plant (Left inner/right outer low drum)

1шт.

655916R91

GUIDE

BODY

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

359141R1

RING, SNAP

WASHER - lock, 5/16 inch

2шт.

11825RB

SHOE

1шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

- round head square neck, 1/2 NC x 1-3/4 inch

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

11848R

ARM

2шт.

23273R1

PIN

- headed, 5/8 x 3-1/2 inch

2шт.

23368R1

COTTER PIN,3/16" x 3 3/4"

Pin, Split (Cotter), 3/16" x 3 3/4"

2шт.

667382R1

ROD

- plant lifter

1шт.

22191R1

WASHER

- flat, 17/32 x 1-3/4 x 5/32 inch (13 x 44 x 4 mm)

1шт.

607895R1

WASHER

- flat, 17/32 x 1 x 7/64 inch (13 x 25 x 3 mm)

3шт.

1

674804R91

HYDRAULIC LIFT

LIFTER ASSEMBLY - plant (Left inner/right outer high drum)

1шт.

674808R2

DIVIDER

BODY

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

674813R1

SHOE

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

- round head square neck, 1/2 NC x 1-3/4 inch

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

11848R

ARM

2шт.

23273R1

PIN

- headed, 5/8 x 3-1/2 inch

2шт.

674820R1

PIN,4.76mm OD

- plant lifter shoe

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

674822R1

TUBE

ROD - plant lifter

1шт.

22191R1

WASHER

- flat, 17/32 x 1-3/4 x 5/32 inch (13 x 44 x 4 mm)

1шт.

607895R1

WASHER

- flat, 17/32 x 1 x 7/64 inch (13 x 25 x 3 mm)

3шт.

2

669766R1

ANGLE

- plant lifter support

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
