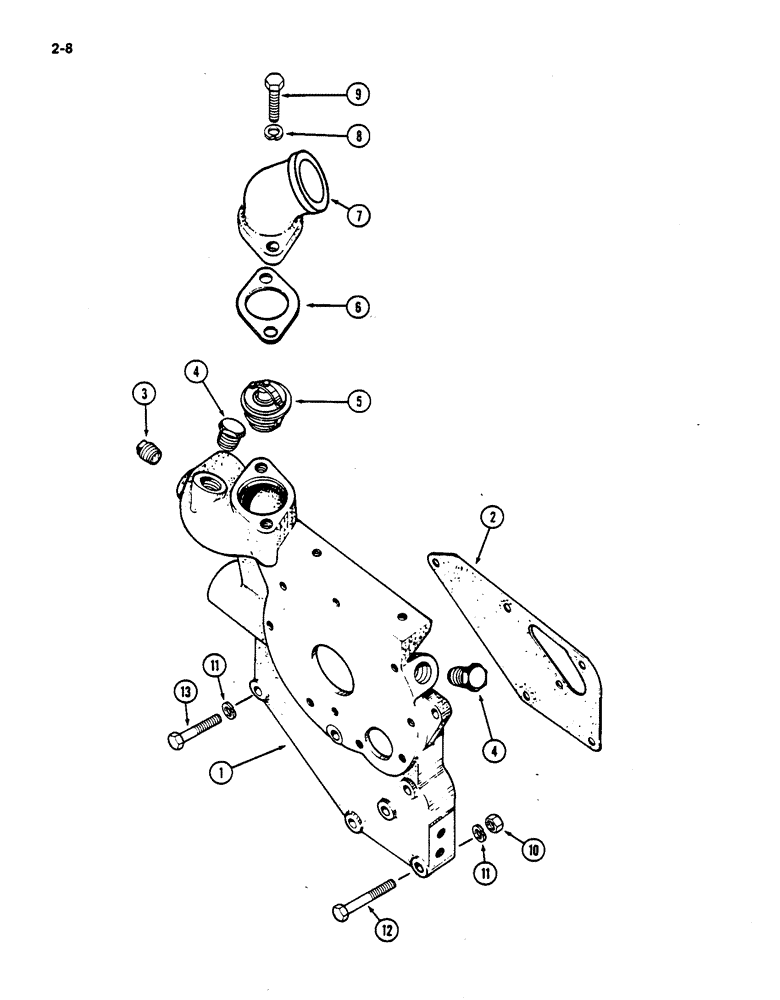

Запчасти Case IH 782 (2-08) - WATER PUMP CARRIER AND THERMOSTAT, D358 DIESEL ENGINE (01) - ENGINE

1

3136678R2

COVER

CARRIER - water pump

1шт.

2

3055999R1

GASKET

- water pump carrier

1шт.

3

445686

PLUG

- automotive hex head pipe, 3/8-18 inch thread

1шт.

4

444630

PLUG,Hex Hd, 1/2"-14

- automotive hex head pipe, 1/2-14 inch thread

2шт.

5

3059676R91

THERMOSTAT

(180 to 194 degree)

1шт.

6

3132143R1

GASKET

- water outlet flange

1шт.

7

3132909R1

ELBOW

- water outlet

1шт.

8

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

- 3/8 NC x 1-1/8 inch

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch NC

2шт.

11

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

12

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

2шт.

13

179830

3шт.
