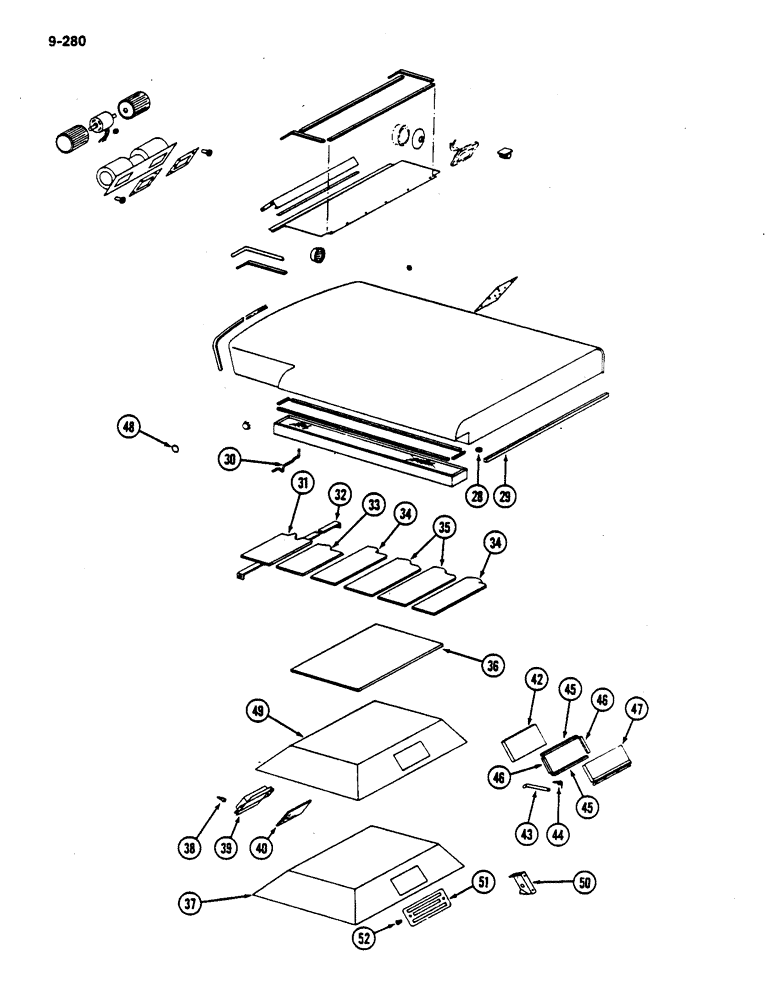

Запчасти Case IH 782 (9-280) - OPERATORS CAB ROOF (09) - CHASSIS ATTACHMENTS

28

3063674R1

GROMMET

- power wire rear upper (Continued from Page 9-279)

1шт.

29

NSS

NOT SOLD SEPARAT

STRIP - cab roof to bottom, 220 inch (5588 mm) (Cut from 182747C1, 50 foot roll) (15 m)

1шт.

182747C1

DOOR SEAL

- seal, 50 foot (15 m) roll

1шт.

30

117727C2

ROD

- air intake filter retaining

3шт.

19910R1

LOCK NUT

- hex lock, No. 10 NC

3шт.

118084C1

SEALING WASHER

- rubber

3шт.

31

198286C1

SHEET

- roof front

1шт.

32

198283C1

SUPPORT

- front insulation

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

33

198147C2

STRIP

- roof center

1шт.

34

198284C1

SHEET

- roof rear

2шт.

35

198285C1

SHEET

- roof rear center

2шт.

36

187745C2

LINING

STRIP - headliner top

1шт.

37

117662C2

LINING

INSULATOR - headliner

1шт.

38

132718C1

FASTENER

- access cover and switch panel

8шт.

26664R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"

SCREW - pan head Phillips tapping, No. 8 NC x 1-1/2 inch

8шт.

39

187741C1

COVER

- access door

2шт.

40

187742C1

INSULATOR

STRIP - access door cover

2шт.

42

183661C1

AIR CLEANER

FILTER - recirculating air

1шт.

43

198153C1

HANDLE

SUPPORT - recirculating air door handle (Note A)

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

(Note A) Cross Pan Hd, #10-24 x 1/2"

1шт.

196922C1

LOCK NUT

- lock (Note A)

1шт.

44

198223C1

SPRING

- recirculating air door (Note A)

1шт.

45

NSS

NOT SOLD SEPARAT

STRIP - recirculating air door top and bottom, 3-1/2 inch (89 mm) (Cut from 198096C1, 4 foot roll) (1 m) (Note A)

2шт.

46

NSS

NOT SOLD SEPARAT

STRIP - recirculating air door end seal, 3-1/2 inch (89 mm) (Cut from 198096C1, 4 foot roll) (1 m) (Note A)

2шт.

198096C1

SEALING STRIP

- seal, 4 foot (1 m) roll (Note A)

1шт.

47

198260C2

DOOR

- recirculating air (Note A)

1шт.

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

(Note A) Cross Pan Hd, 1/4"-20 x 1/2"

3шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4 inch (Note A)

3шт.

48

432416

PLUG,5/16"

- button, 5/16 inch diameter (Wiper mounting holes)

1шт.

48

192769

PLUG,3/4"

(button), Wiper shaft hole 3/4"

1шт.

49

183682C91

LINING

HEADLINER - w/insulation

1шт.

198820C1

GROMMET

(Cab with heater)

1шт.

456107C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - Phillips head tapping, No. 10 NC x 1/2 inch

16шт.

50

198248C2

BRACKET

SUPPORT - recirculating air spring bracket (Note A)

1шт.

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

(Note A) Cross Pan Hd, 1/4"-20 x 1/2"

2шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4 inch (Note A)

2шт.

51

183662C1

GRILLE

1шт.

52

111296C1

BUTTON

KNOB

1шт.

160568

SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/4"

- pan head Phillips, 1/4 NC x 1-1/4 inch

1шт.

111685C1

NUT

- grille spacer

1шт.

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- heater hose

1шт.

53

NSS

NOT SOLD SEPARAT

STRIP - blower and core chamber side left, 10-1/2 inch (267 mm) (Cut from 187874C1, 4 foot roll) (1 m)

1шт.
