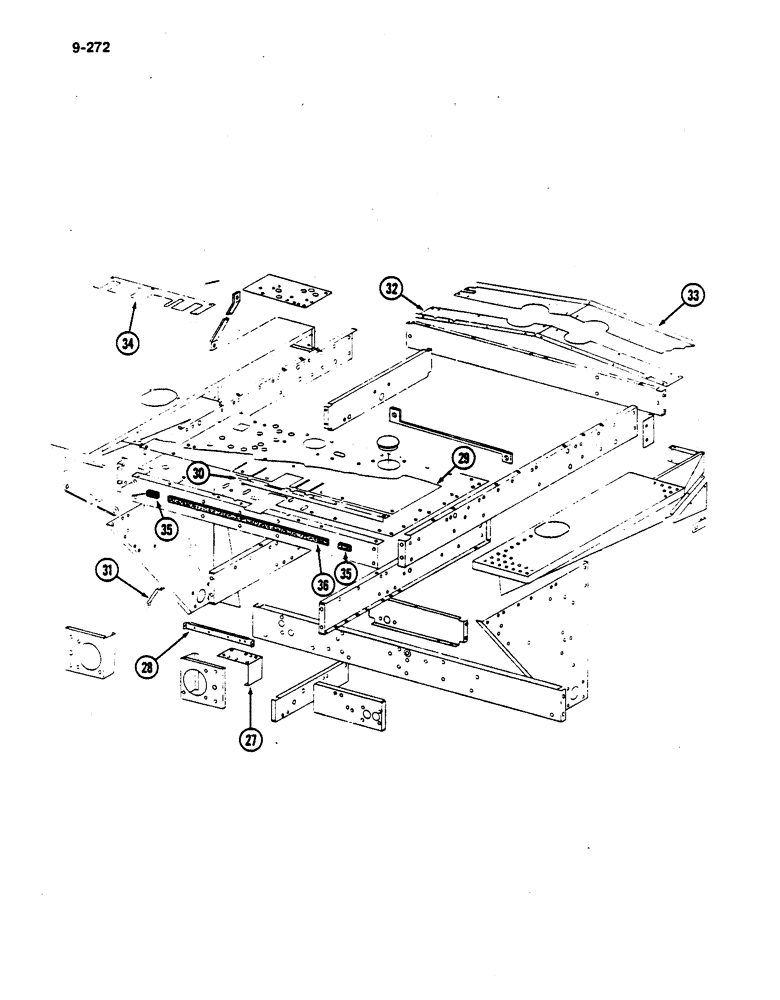

Запчасти Case IH 782 (9-272) - OPERATORS PLATFORM (09) - CHASSIS ATTACHMENTS

27

215251C1

SUPPORT

- drum control valve (Continued from Page 9-271)

1шт.

27701R1

WASHER

- flat, 13/32 x 1-3/4 x 7/64 inch (10 x 44 x 3 mm)

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

20483R1

HEX SOC SCREW,5/16"-18 x 3/4"

BOLT - hex socket head, 5/16 NC x 3/4 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

28

214611C2

SUPPORT

- gear shift channel

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

29

214669C3

MAT

- floor

1шт.

30

214668C2

RETAINER

- floor mat front

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

10шт.

120377

NUT,3/8" - 16, Gr 5

17шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

619856R1

WASHER

- flat, 13/32 x 1 x 1/16 inch (10 x 25 x 2 mm)

14шт.

22264R1

WASHER

- flat, 13/32 x 1 x 5/32 inch (10 x 25 x 4 mm)

2шт.

31

215879C1

SUPPORT

- console strap

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

32

215515C2

SUPPORT - platform cover front

1шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 1/2"

7шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head tapping, 1/4 NC x 1/2 inch

3шт.

33

215516C2

SUPPORT

- platform cover rear

1шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 1/2"

7шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head tapping, 1/4 NC x 1/2 inch

3шт.

34

1260264C1

RETAINER

- boots platform

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

35

187884C1

SEALING STRIP,50mm L

- cab front, 2 inch

2шт.

36

187885C1

SEALING STRIP

- cab front, 29 inch

1шт.
