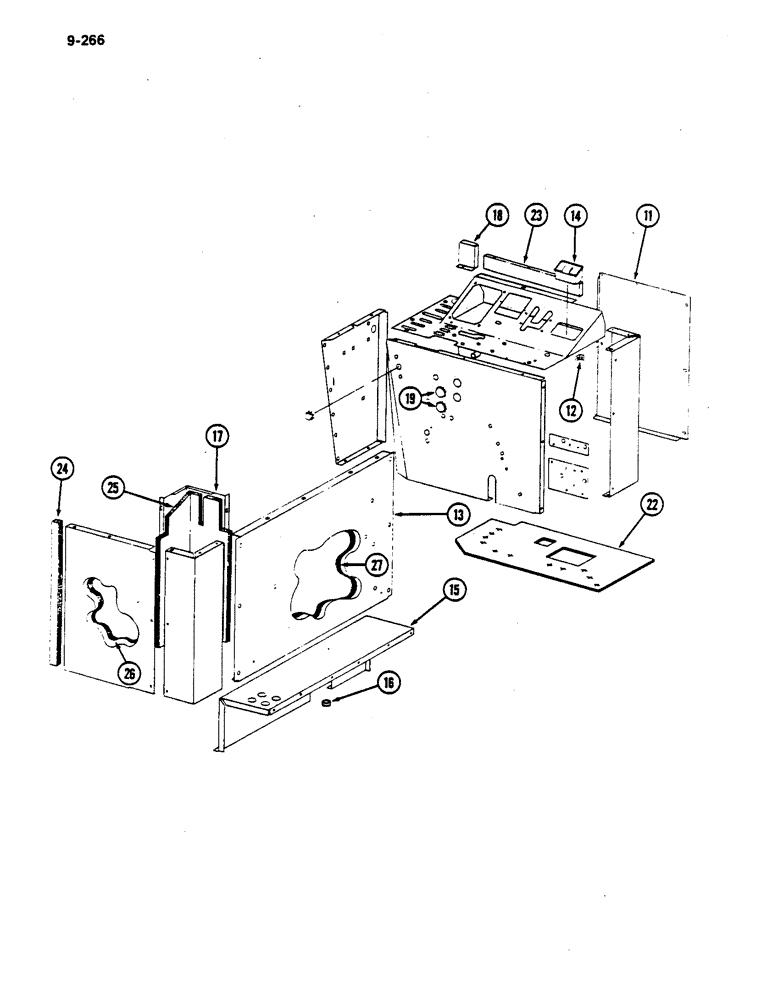

Запчасти Case IH 782 (9-266) - CONSOLE AND CAB SUPPORTS (09) - CHASSIS ATTACHMENTS

11

210150C1

SUPPORT

- side sheet right (Low drum P.I.N. 507 thru 681) (High drum P.I.N. 507 thru 2124) (Continued from Page 9-265)

1шт.

11

222786C2

SUPPORT

- side sheet right (Low drum P.I.N. 682 and after) (High drum P.I.N. 2125 and after)

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

BOLT - hex washer head tapping, 1/4 NC x 1/2 inch

4шт.

12

1260197C1

CLIP

- side sheet right

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

13

210151C1

SUPPORT

- rear

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

BOLT - hex washer head tapping, 1/4 NC x 1/2 inch

6шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

9шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

120376

NUT,5/16"-18, G5

9шт.

14

111396C1

ASH TRAY

TRAY - ash

1шт.

15

215464C2

ASSEMBLY

SECTION - cab rear

1шт.

16

538668R1

BUSHING

- snap in

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head tapping, 1/4 NC x 1/2 inch

10шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

14шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

120376

NUT,5/16"-18, G5

14шт.

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- rubber

1шт.

17

215954C1

SHIELD

- cab heater hose

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- hex, 1/4 NC x 1/2 inch

4шт.

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch (7 x 16 x 1 mm)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

18

215868C1

FILLER

- console

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

BOLT - hex washer head tapping, 1/4 NC x 1/2 inch

2шт.

19

222090C1

PLUG

- plastic

2шт.

22

220980C2

SHEET

- lower console seal

1шт.

23

222787C1

CHANNEL

- cab side spacer right

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

24

1260482C1

SIDE ASSY.

SIDE - left door

1шт.

25

1260444C1

SHEET

COVER - left rear

1шт.

26

1260446C1

INSULATOR

COVER - left side

1шт.

27

1260445C1

INSULATOR

COVER - side left

1шт.
