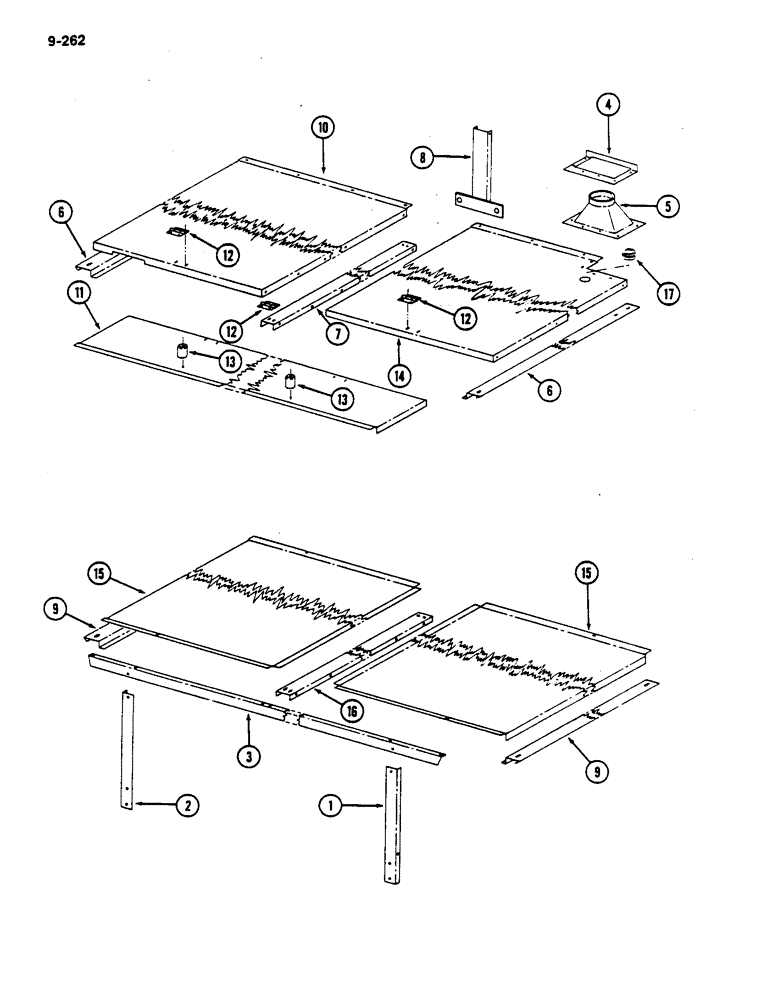

Запчасти Case IH 782 (9-262) - RADIATOR AND ENGINE SHIELDS (09) - CHASSIS ATTACHMENTS

1

214714C1

ANGLE - engine hood support left

1шт.

2

214715C1

ANGLE - engine hood support right

1шт.

3

216660C1

ANGLE - engine hood sheet

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

4

215510C2

SUPPORT

- cylinder insulator

1шт.

5

215511C1

INSULATOR

- cylinder cover

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch (7 x 16 x 1 mm)

6шт.

6

215655C2

SUPPORT

- radiator shield

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

7

215836C1

CHANNEL

- radiator and engine cover

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

8

215657C1

SUPPORT

- cover channel

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

9

215829C1

SUPPORT - engine shield left

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

215828C2

SHIELD

- radiator and engine

1шт.

11

215826C2

SHEILD - radiator

1шт.

12

215720C1

HINGE

3шт.

13

825219C1

BUMPER

- hood sheet (Used with shield 215826C1)

2шт.

13

57220C1

BUMPER

- hood sheet (Used with shield 215826C2)

2шт.

120368

NUT,5/16"-24, G5

2шт.

14

215827C1

SHIELD

- radiator left, rear

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

12шт.

1254550C1

SELF-TAP SCREW,Spcl, Hex Wshr Hd, 3/8" - 16 x 1", Type 5, Gimlet Pt Indented

- tapping, 3/8 NC x 1 inch

4шт.

15

215984C1

SHIELD

- radiator and engine

2шт.

16

215654C1

CHANNEL

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

120376

NUT,5/16"-18, G5

10шт.

17

82486R1

GROMMET

1шт.
