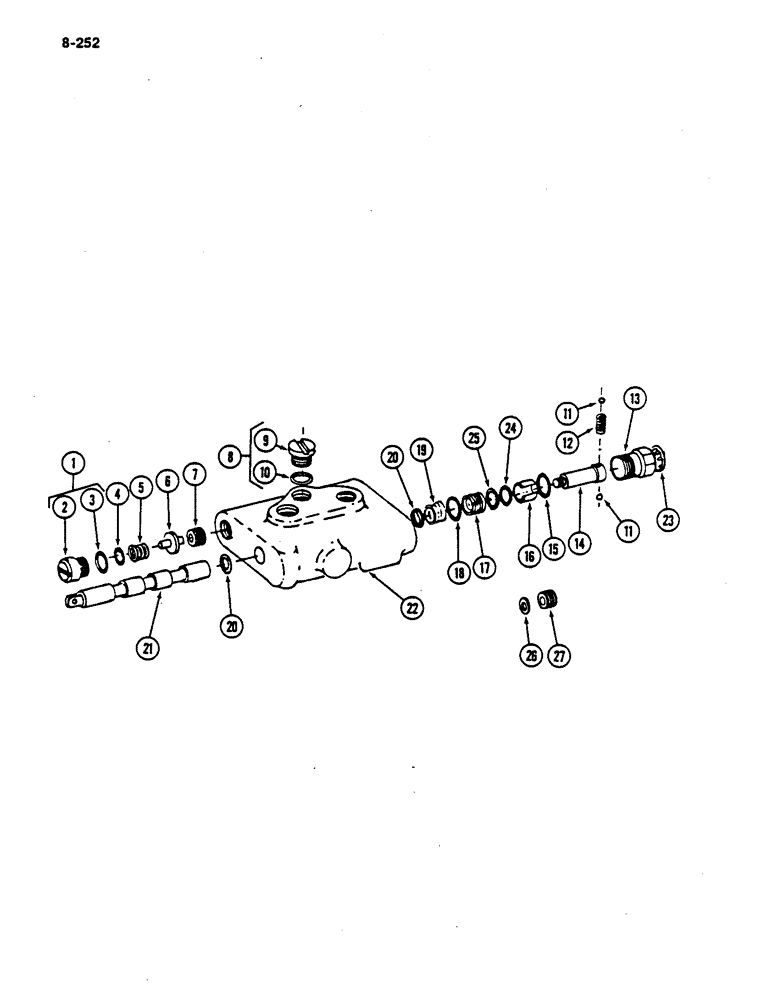

Запчасти Case IH 782 (8-252) - DRUM CONTROL VALVE WITH AUTOMATIC DRUM CONTROL (07) - HYDRAULICS

673804R93

VALVE

ASSEMBLY - drum control

1шт.

1

202210C91

PLUG

ASSEMBLY - relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - relief valve (Order plug assembly 202210C91)

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING (Order kit 674503R91)

1шт.

4

674504R1

WASHER

SHIM

1шт.

4

394655R1

WASHER

SHIM

1шт.

4

673647R1

WASHER

SHIM

1шт.

5

632843R1

SPRING

- relief valve

1шт.

6

674501R1

VALVE POPPET

POPPET - relief valve

1шт.

7

NSS

NOT SOLD SEPARAT

SEAT - relief valve plug (Order valve assembly 673804R93)

1шт.

8

201844C91

PLUG

ASSEMBLY - lift check

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG - lift check (Order plug assembly 201844C91)

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING (Order kit 674503R91)

1шт.

11

NSS

NOT SOLD SEPARAT

BALL - chrome alloy, 5/32 inch diameter (Order kit 201999C91)

4шт.

12

NSS

NOT SOLD SEPARAT

SPRING - detent (Order kit 201999C91)

2шт.

13

NSS

NOT SOLD SEPARAT

CAP - detent (Order kit 201999C91)

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW - detent (Order kit 201999C91)

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - 0.677 inch OD (17.19 mm OD) (Order kit 201999C91)

1шт.

16

674492R1

SPACER

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - spool center (Order kit 201999C91)

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - 0.670 inch OD (17.01 mm OD) (Order kit 201999C91)

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING (Order kit 201999C91)

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING (Order kit 201999C91)

2шт.

21

NSS

NOT SOLD SEPARAT

SPOOL (Order pump assembly 673804R93)

1шт.

22

NSS

NOT SOLD SEPARAT

BODY (Order pump assembly 673804R93)

1шт.

23

NSS

NOT SOLD SEPARAT

PLUG - button (Order kit 201999C91)

1шт.

24

824545C1

WASHER

1шт.

25

202649C1

SPRING WASHER

1шт.

26

203940C1

WASHER

- detent cap

1шт.

27

824940C1

SPRING

- detent cap (Replaces 201737C1)

1шт.

674503R91

SEAL KIT

KIT - seal repair

1шт.

NSS

NOT SOLD SEPARAT

O-RING

4шт.

78575C1

KIT

- seal repair

1шт.

NSS

NOT SOLD SEPARAT

O-RING

6шт.

201999C91

KIT

- detent ball replacement

1шт.

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

NSS

NOT SOLD SEPARAT

SCREW - detent

1шт.

NSS

NOT SOLD SEPARAT

CAP - detent

1шт.

NSS

NOT SOLD SEPARAT

SPRING - spool centering

1шт.

NSS

NOT SOLD SEPARAT

SPRING - detent

2шт.

NSS

NOT SOLD SEPARAT

BALL - detent

4шт.

NSS

NOT SOLD SEPARAT

WASHER - 0.670 inch OD (17.01 mm OD)

1шт.

NSS

NOT SOLD SEPARAT

WASHER - 0.677 inch OD (17.19 mm OD)

1шт.

NSS

NOT SOLD SEPARAT

PLUG

1шт.

NSS

NOT SOLD SEPARAT

O-RING - 1/2 ID x 3/32 inch width (13 ID x 2 mm width)

2шт.
