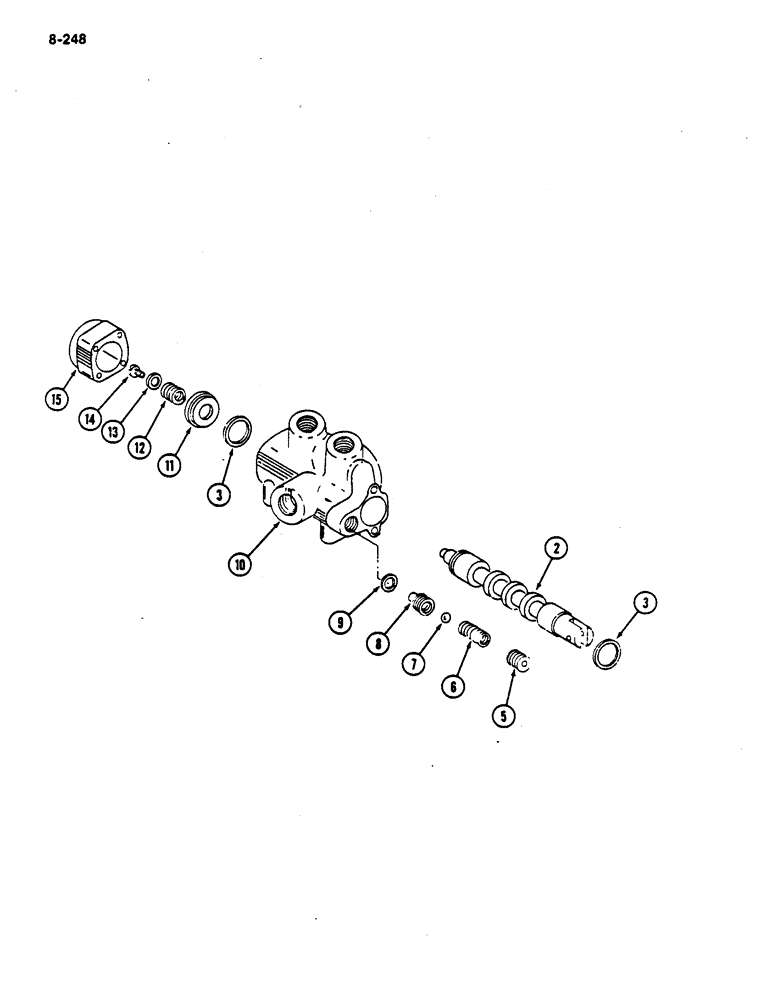

Запчасти Case IH 782 (8-248) - BASKET DISTRIBUTOR VALVE (07) - HYDRAULICS

210295C91

VALVE

ASSEMBLY - basket distributor

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL (Order valve assembly 210295R91)

1шт.

3

669538R1

SEAL

- cup U

2шт.

5

143162

PLUG

- square socket head pipe, 3/8 inch

1шт.

6

669541R1

SPRING - relief

1шт.

7

17012R1

BALL,3/8" Dia

1шт.

8

669543R1

SEAT

- relief

1шт.

9

252738R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- 3/8 ID x 3/32 inch width (10 ID x 2 mm width)

1шт.

10

NSS

NOT SOLD SEPARAT

BODY (Order valve assembly 210295R91)

1шт.

11

669603R1

COLLAR - stop

1шт.

12

669602R1

SPRING - centering

1шт.

13

469668R1

WASHER

- flat, 13/32 x 3/4 x 16 ga

1шт.

14

669535R1

SCREW - round head slotted, 1/4 NC x 12 inch

1шт.

131098

LOCK WASHER,1/4"

1/4"

1шт.

15

669540R1

COWL

BONNET - valve

1шт.

131987

SCREW - fillister head slotted, No. 8-32 x 1 inch

4шт.
