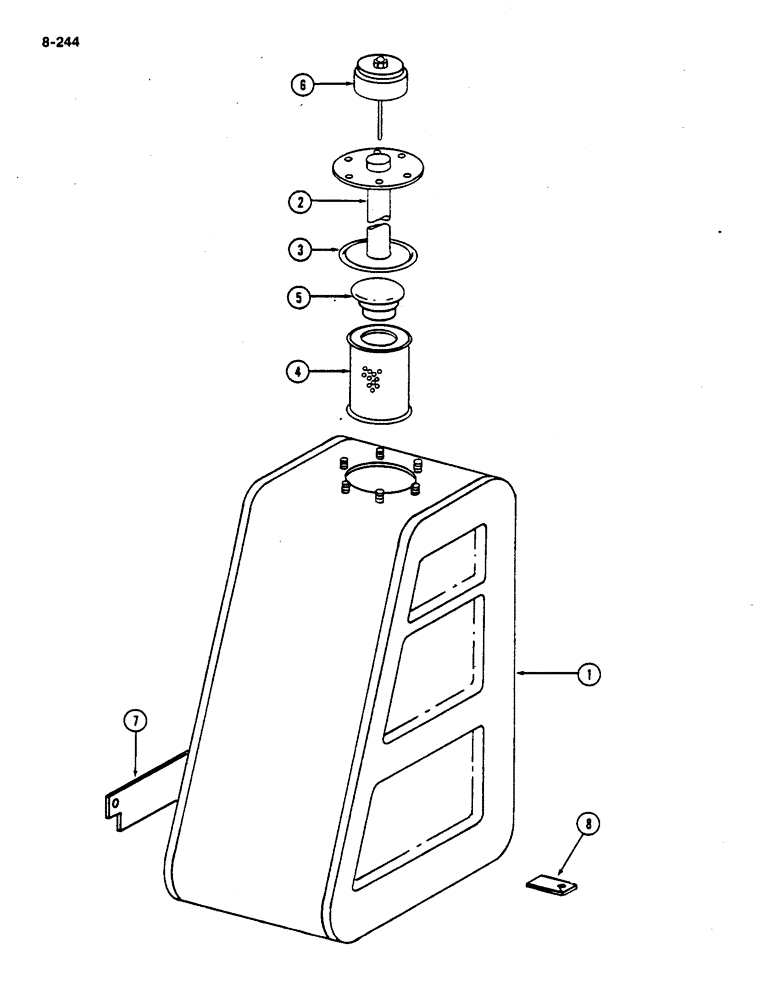

Запчасти Case IH 782 (8-244) - HYDRAULIC OIL RESERVOIR (07) - HYDRAULICS

1

215506C1

RESERVOIR

- hydraulic oil

1шт.

2

215498C1

NECK - reservoir cover

1шт.

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch

6шт.

3

963460R1

O-RING,0.275" Thk x 5.475" ID, -433, Cl 5, 75 Duro

- 5-1/2 ID x 1/4 inch width (140 ID x 6 mm width)

1шт.

4

528493R3

HYDRAULIC OIL FILTER

FILTER (Replaces 386120R91)

1шт.

5

386121R92

VALVE

- by pass

1шт.

6

215508C1

GAUGE

- cap and dipstick

1шт.

7

221488C1

BAR

- tank hold down

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

216162C1

BAR

- cleaner screen support

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
