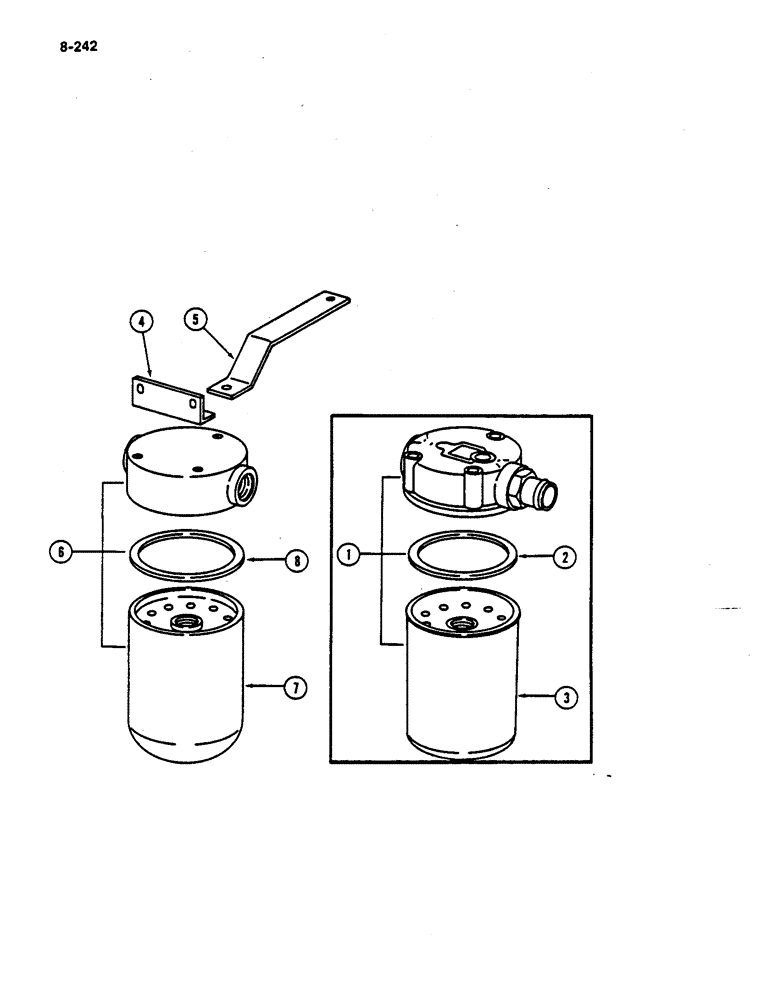

Запчасти Case IH 782 (8-242) - CHARGE PUMP FILTER (07) - HYDRAULICS

1

127873C91

FILTER

ASSEMBLY - charge pump (Order filter assembly 1285712C91, fitting 1288701C1 and O-ring 296247R1)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

123010C2

GASKET

SEAL - oil filter

1шт.

3

69149C1

FILTER

ELEMENT - oil filter

1шт.

4

215677C1

ANGLE - filter mount

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

216028C1

SUPPORT - filter

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOOT - hex, 5/16 NC x 3/4 inch

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

1285712C91

FILTER

ASSEMBLY - charge pump (Replaces 127872C91)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

2шт.

120392

WASHER,1/4", SAE

- lock, 3/8 inch

2шт.

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

7

1282387C2

FILTER, ENGINE OIL

ELEMENT - oil filter

1шт.

8

123010C2

GASKET

SEAL - oil filter

1шт.
