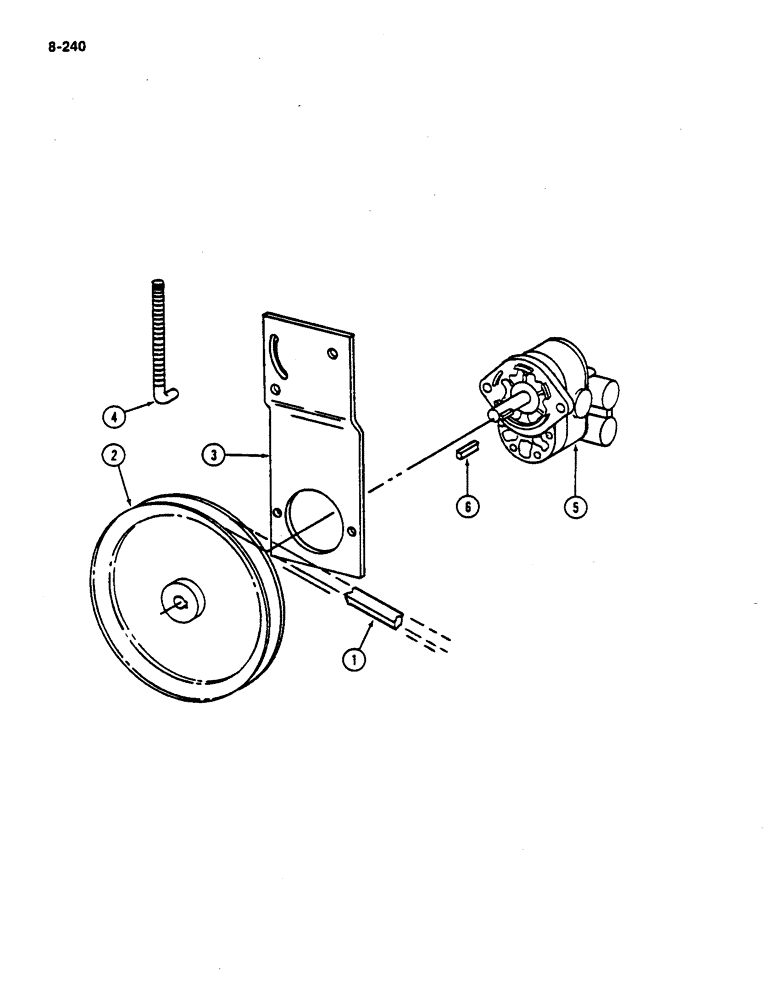

Запчасти Case IH 782 (8-240) - HYDRAULIC PUMP AND MOUNTING (07) - HYDRAULICS

1

656349R1

V-BELT,0.66" W

Hydraulic pump drive 0.66" W

1шт.

2

204611C2

PULLEY

- hydraulic pump drive

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

BOLT - square head, cone point set, 5/16 NC x 1 inch

2шт.

124824

NUT,Hex, 5/16" - 18

- hex jam, 5/16 inch NC

2шт.

3

214742C2

SUPPORT

- hydraulic pump

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

495-11053

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 5/64 inch (13 x 27 x 2 mm)

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

4

215678C1

ROD

- hydraulic pump adjusting

1шт.

495-11053

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 5/64 inch (13 x 27 x 2 mm)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

103375

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

5

1272645C91

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic (Replaces 127832C91 by also ordering connector 1322912C1 and support 214742C2)

1шт.

re it no 5 - 1272645c91 r/s pump no. 127832c91. To service the old pump, use service kit 133606c1. ph 9/18/97

1шт.

93079C1

SEAL KIT

- seal

1шт.

93080C1

KIT

- backplate repair

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

93246C1

KEY

- pump pulley

1шт.

93079C1

SEAL KIT

- seal (For pump 1272645C91) (Replaces 93079C91)

1шт.

NSS

NOT SOLD SEPARAT

O-RING

5шт.

NSS

NOT SOLD SEPARAT

WEARPLATE

1шт.

NSS

NOT SOLD SEPARAT

SEAL - bearing

1шт.

NSS

NOT SOLD SEPARAT

O-RING - molded

1шт.

NSS

NOT SOLD SEPARAT

GASKET - back-up

1шт.

NSS

NOT SOLD SEPARAT

WASHER

1шт.

93080C1

KIT

- backplate repair (For pump 1272645C91) (Replaces 93080C91)

1шт.

NSS

NOT SOLD SEPARAT

PLUG

3шт.

NSS

NOT SOLD SEPARAT

DISC

1шт.

NSS

NOT SOLD SEPARAT

CARTRIDGE

1шт.

NSS

NOT SOLD SEPARAT

BACKPLATE

1шт.

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

NSS

NOT SOLD SEPARAT

SPRING

2шт.

NSS

NOT SOLD SEPARAT

POPPET

1шт.

NSS

NOT SOLD SEPARAT

SEAT

1шт.

NSS

NOT SOLD SEPARAT

PLUG - seat

1шт.

NSS

NOT SOLD SEPARAT

WASHERS

1шт.

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

133606C1

KIT

- hydraulic pump service (For pump 127832C91)

1шт.

NSS

NOT SOLD SEPARAT

RETAINING RING

1шт.

NSS

NOT SOLD SEPARAT

OIL SEAL

1шт.

NSS

NOT SOLD SEPARAT

WEARPLATE

1шт.

NSS

NOT SOLD SEPARAT

SEAL - pre load

1шт.

NSS

NOT SOLD SEPARAT

SEAL - load

1шт.

NSS

NOT SOLD SEPARAT

SEAL - ring

1шт.

NSS

NOT SOLD SEPARAT

SQUARE KEY

1шт.

NSS

NOT SOLD SEPARAT

WASHER

8шт.

NSS

NOT SOLD SEPARAT

VALVE

1шт.

NSS

NOT SOLD SEPARAT

SPRING

1шт.

NSS

NOT SOLD SEPARAT

GASKET

1шт.

NSS

NOT SOLD SEPARAT

O-RING

3шт.
