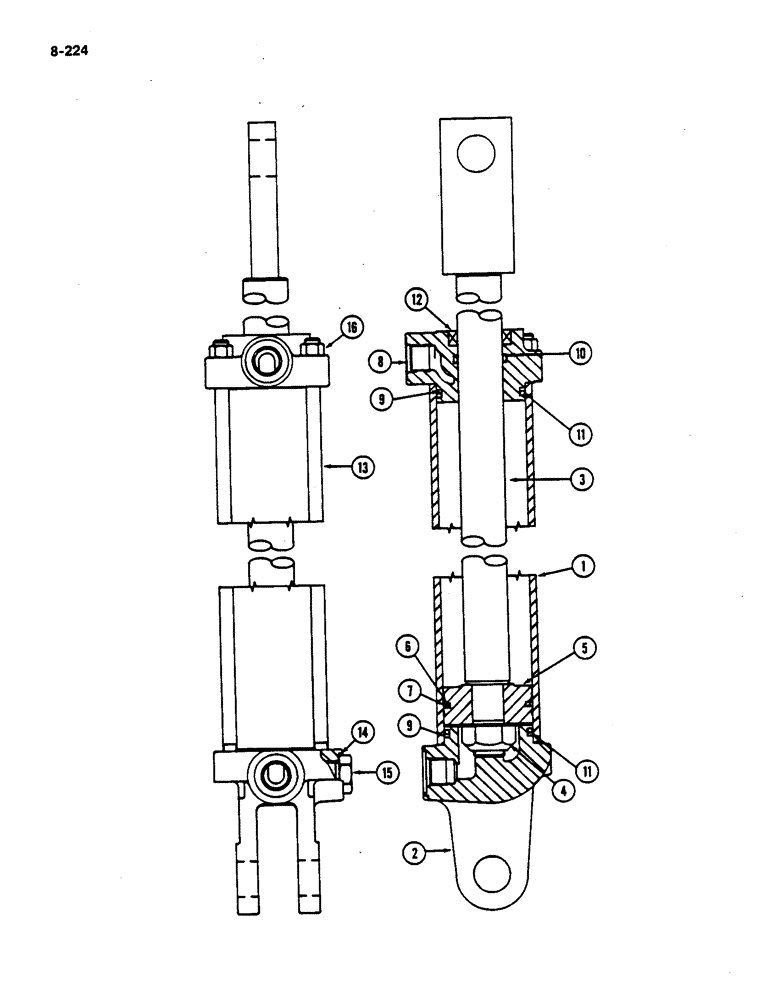

Запчасти Case IH 782 (8-224) - BASKET DISTRIBUTOR CYLINDER (07) - HYDRAULICS

1272487C91

CYLINDER

ASSEMBLY - hydraulic

1шт.

1

NSS

NOT SOLD SEPARAT

SLEEVE (Order 1272487C91)

1шт.

2

1272766C1

HEAD

- rear

1шт.

3

145513C1

ROD

- piston

1шт.

4

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, lock, 7/8 inch NF

1шт.

5

145221C3

PISTON

- cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 2-1/16 x 2-1/4, Class 5

1шт.

Part of O-ring and seal service kit P/N 79975C2

1шт.

7

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

Part of O-ring and seal service kit P/N 79975C2

1шт.

8

1272767C1

CYLINDER END CAP

HEAD - front

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - O-ring back-up

2шт.

Part of O-ring and seal service kit P/N 79975C2

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston rod urethane

1шт.

Part of O-ring and seal service kit P/N 79975C2

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 2-1/4 x 2-1/2, Class 6

2шт.

Part of O-ring and seal service kit P/N 79975C2

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of O-ring and seal service kit P/N 79975C2

1шт.

13

145516C1

BOLT,7/16" - 14 x 599mm

ROD - tie

4шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 1/2 OD tube, Class 6

1шт.

Part of O-ring and seal service kit P/N 79975C2

1шт.

15

9410359

PLUG

- O-ring boss, 1/2 inch str thd

1шт.

16

NLS

NO LONGER SERVICED

- hex, 7/16 inch NC

4шт.

79975C2

SEAL KIT

KIT - O-ring and seal service, Includes: Ref. 6, 7, 9 - 12 and 14

1шт.
