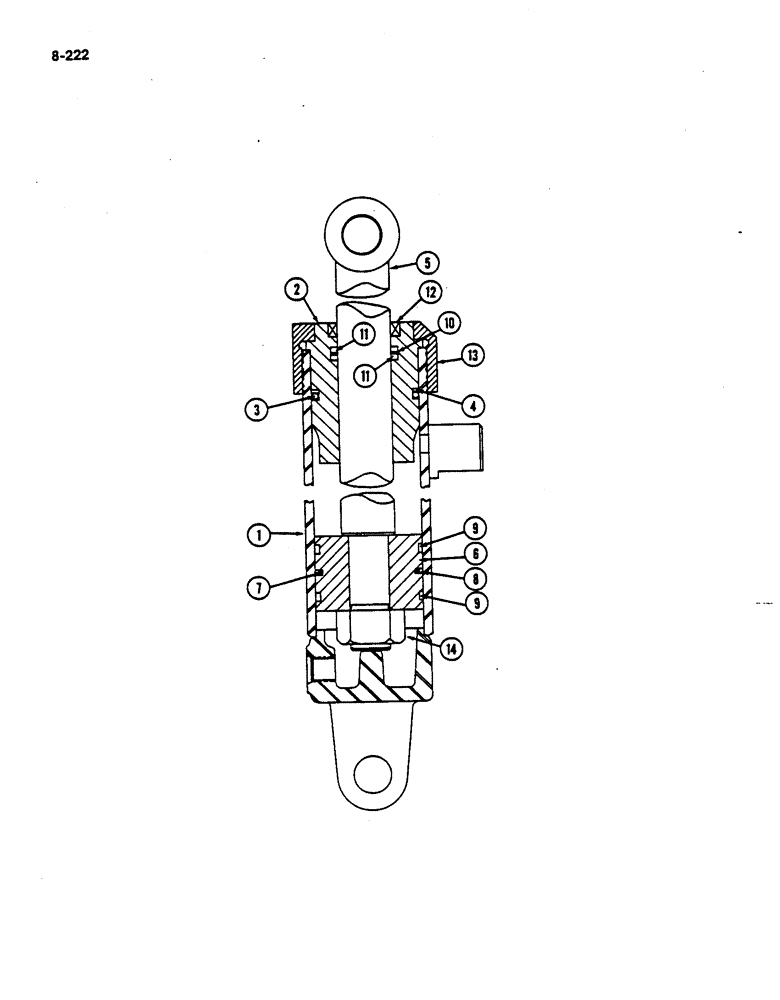

Запчасти Case IH 782 (8-222) - BASKET LIFT CYLINDER, LOW DRUM P.I.N. 507 THRU 681, HIGH DRUM P.I.N. 507 THRU 2124 (07) - HYDRAULICS

113955C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - hydraulic

1шт.

1

NSS

NOT SOLD SEPARAT

BODY (Order 113955C91)

1шт.

2

113957C1

HEAD

- front

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 2-5/8 x 3, Class 6

1шт.

Part of O-ring and seal service kit P/N 404219R93

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - O-ring back-up

1шт.

Part of O-ring and seal service kit P/N 404219R93

1шт.

5

114027C1

ROD ASSY.

ROD - piston

1шт.

6

404987R2

PISTON

- cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 2-9/16 x 2-3/4, Class 5

1шт.

Part of O-ring and seal service kit P/N 404219R93

1шт.

8

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

Part of O-ring and seal service kit P/N 404219R93

1шт.

9

NSS

NOT SOLD SEPARAT

RING - piston bearing

2шт.

Part of O-ring and seal service kit P/N 404219R93

1шт.

10

NSS

NOT SOLD SEPARAT

RING - piston rod quad

1шт.

Part of O-ring and seal service kit P/N 404219R93

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - quad ring

2шт.

Part of O-ring and seal service kit P/N 404219R93

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - piston rod wiper

1шт.

Part of O-ring and seal service kit P/N 404219R93

1шт.

13

387375R1

RETAINER

- front head

1шт.

14

25126R1

LOCK NUT,1 1/8"-12, GC

NUT - hex lock, 1-1/8 inch NF

1шт.

404219R93

SEAL KIT

- O-ring and seal service, Includes: Ref. 3, 4 and 7 - 12

1шт.
