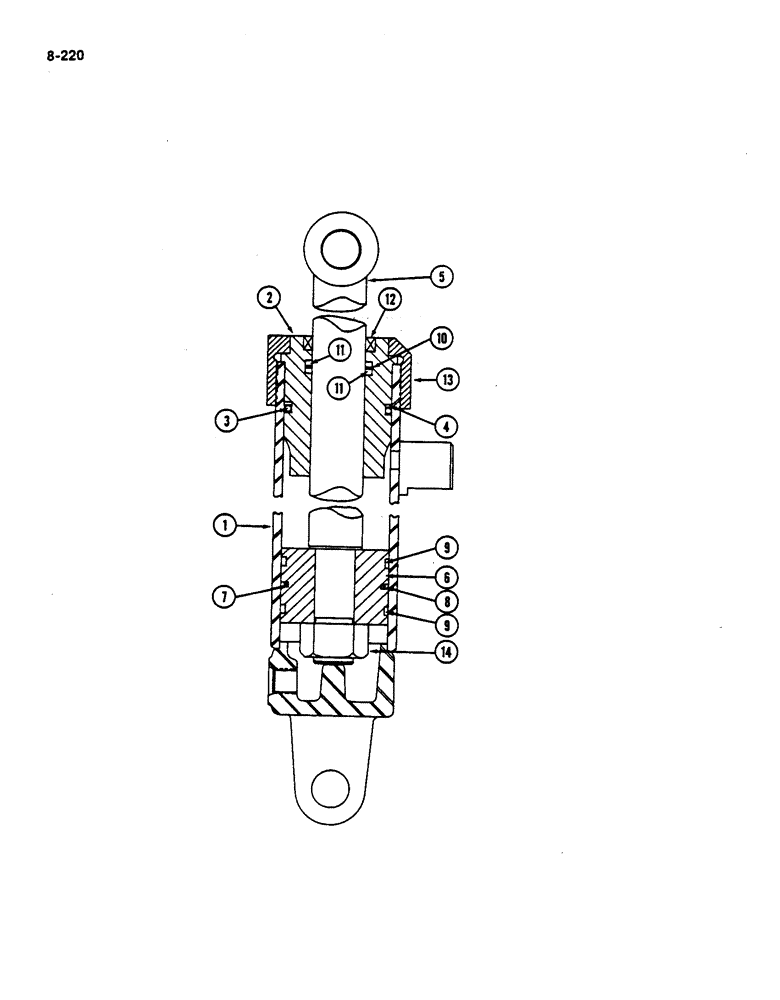

Запчасти Case IH 782 (8-220) - BASKET LIFT CYLINDER, LOW DRUM P.I.N. 682 AND AFTER, HIGH DRUM P.I.N. 2125 AND AFTER (07) - HYDRAULICS

224660C91

CYLINDER

ASSEMBLY - hydraulic

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - (Order 224660C91)

1шт.

2

113957C1

HEAD

- front

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 2-5/8 x 3, Class 6

1шт.

Part of O-ring and seal service it P/N 74303C91

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - O-ring back-up

1шт.

Part of O-ring and seal service it P/N 74303C91

1шт.

5

224659C1

ROD

- piston

1шт.

6

404987R2

PISTON

- cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 2-9/16 x 2-3/4, Class 5

1шт.

Part of O-ring and seal service it P/N 74303C91

1шт.

8

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

Part of O-ring and seal service it P/N 74303C91

1шт.

9

NSS

NOT SOLD SEPARAT

RING - piston bearing

2шт.

Part of O-ring and seal service it P/N 74303C91

1шт.

10

NSS

NOT SOLD SEPARAT

RING - piston rod quad

1шт.

Part of O-ring and seal service it P/N 74303C91

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - quad ring

2шт.

Part of O-ring and seal service it P/N 74303C91

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - piston rod wiper

1шт.

Part of O-ring and seal service it P/N 74303C91

1шт.

13

387375R1

RETAINER

- front head

1шт.

14

25126R1

LOCK NUT,1 1/8"-12, GC

NUT - hex lock, 1-1/8 inch NF

1шт.

74303C91

SEAL KIT

- O-ring seal and service, Includes: Ref. 3, 4 and 7 - 12

1шт.
