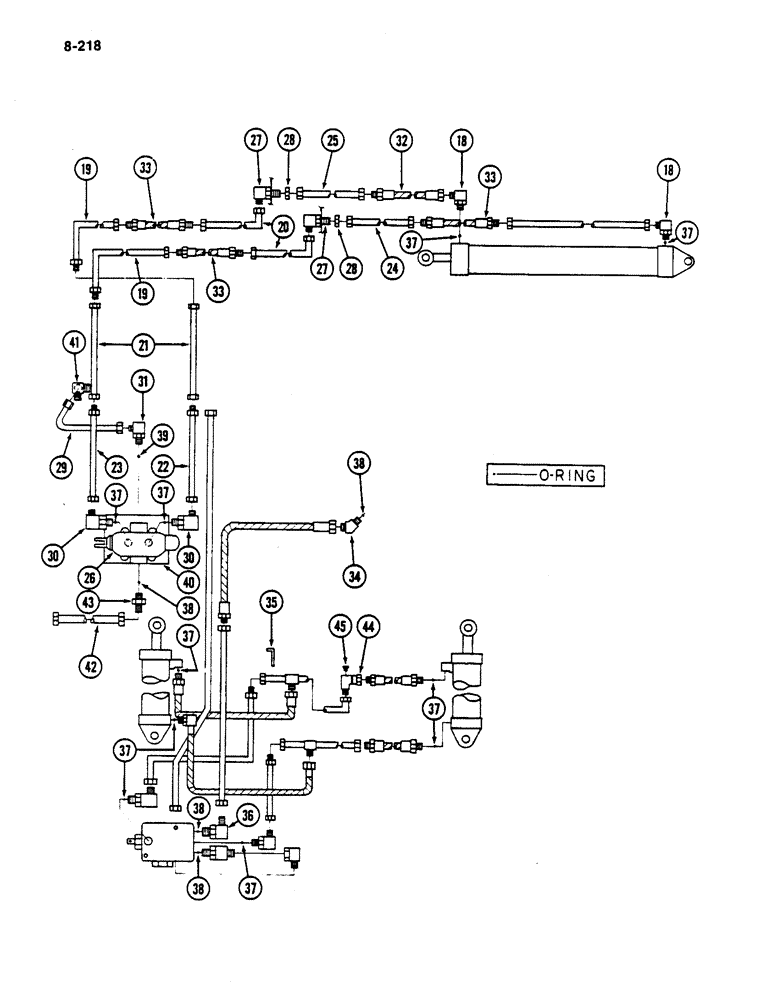

Запчасти Case IH 782 (8-218) - HYDRAULIC BASKET CONTROL, LIFT CYLINDER, DISTRIBUTOR CYLINDER AND CONNECTIONS (07) - HYDRAULICS

18

935036R91

ELBOW

- 90 degree hydraulic tube, 3/4-16 x 9/16-18 inch thread (Replaces 671796R1) (Continued from Page 8-217)

2шт.

19

215775C1

HYD TUBE

TUBE - compactor

2шт.

20

215014C1

TUBE

- compactor

2шт.

21

215777C1

HYD TUBE

TUBE - compactor

2шт.

22

215778C1

TUBE - compactor valve

1шт.

23

215780C1

TUBE - bulkhead to flexible hose

1шт.

24

215017C1

TUBE

-, Serial Range: bulkhead-cylinder

1шт.

25

215016C1

TUBE

-, Serial Range: bulkhead-cylinder

1шт.

26

210295C91

VALVE

ASSEMBLY - basket distributor (See Page 8-249)

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

- hex, 3/8 NC x 1/2 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

27

673821R1

ELBOW UNION

ELBOW - 90 degree bulkhead

2шт.

28

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT - hydraulic tube, 9/16-18 inch thread

2шт.

29

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

- 1/2 ID x 18-1/4 inch long (Replaces 215779C1)

1шт.

30

935036R91

ELBOW

- 90 degree adjustable straight thread hydraulic tube reducer, 9/16-18 inch thread

2шт.

31

633460R91

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

- 90 degree adjustable straight thread hydraulic tube reducer, 5/8-18 inch thread

1шт.

32

673581R1

HOSE

- distributor cylinder

1шт.

33

673578R1

HOSE

- distributor pivot

3шт.

34

9411106

ELBOW

- 45 degree adjustable straight thread hydraulic tube, 7/8-14 inch thread

1шт.

35

216320C1

SUPPORT - hydraulic tube

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 x 1 inch NC

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

36

222713C1

ELBOW

- 90 degree adjustable straight thread hydraulic tube, 7/8-14 inch thread

1шт.

37

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube

9шт.

38

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32 inch width (19 ID x 2 mm width)

4шт.

39

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch OD tube

1шт.

40

221698C1

CHANNEL

SUPPORT - cotton distributor valve (Replaces 214941C1)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

41

215805C1

TEE - return line

1шт.

42

215793C1

TUBE - compactor valve

1шт.

43

380632R1

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

REDUCER - hydraulic tube, 3/4-16 inch thread

1шт.

44

222727C91

ELBOW

ASSEMBLY - relief valve

1шт.

45

385702R91

VALVE

- thermal relief

1шт.
