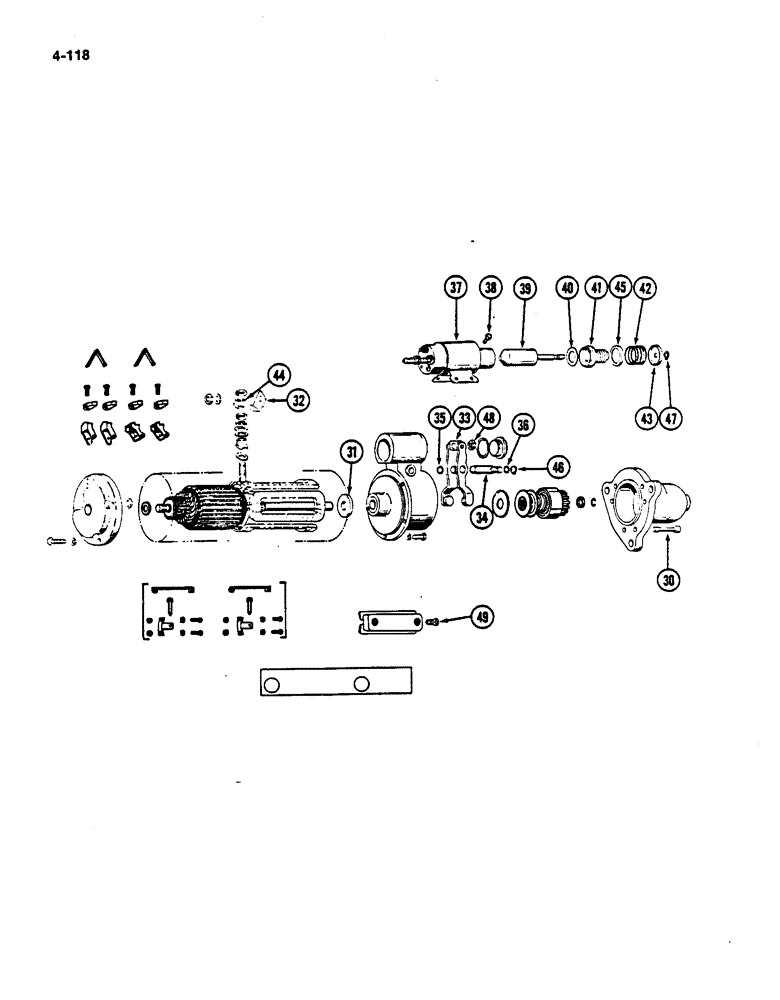

Запчасти Case IH 782 (4-118) - STARTER MOTOR - DELCO REMY, LOW DRUM P.I.N. 507 THRU 681 HIGH DRUM P.I.N. 507 THRU 2124 (06) - ELECTRICAL SYSTEMS

1113496

STARTING MOTOR

MOTOR STARTING - 107584C91 (Order 1990318) (Continued from Page 4-117)

1шт.

104211A1GV

STARTER MOTOR

Value

1шт.

104211A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104211A1C

CORE-STARTER

Return Number

1шт.

87297334

REMAN-STARTER

Remanufactured Starter

1шт.

87297335

CORE-STARTER

Return Number

1шт.

30

1870513

SCREW

SCREW - driven end housing

6шт.

31

1851959

SPACER

WASHER - brake lever housing & armature

1шт.

32

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.

33

1851954

LEVER

LEVER - shift

1шт.

34

1851953

SHAFT

SHAFT - shift lever

1шт.

35

1914373

O-RING

O-RING - shift lever shaft

1шт.

36

1921805

GASKET

O-RING - shift lever shaft

1шт.

37

146493C1

SOLENOID

SWITCH - solenoid

1шт.

38

1930611

LOCK SCREW

SCREW - solenoid switch

4шт.

39

1851966

PLUNGER

PLUNGER - solenoid switch

1шт.

40

1948519

WASHER

WASHER - solenoid switch spring retainer

1шт.

41

801077

BOOT

BOOT - solenoid switch plunger

1шт.

42

1948521

SPRING

SPRING - solenoid switch plunger return

1шт.

43

1948526

RETAINER

RETAINER - plunger spring

1шт.

44

9421427

WASHER

WASHER - terminal stud lock

1шт.

45

1948520

RETAINER

RETAINER - plunger spring

1шт.

46

9415235

RING, SNAP

RING SNAP RING - shift lever shaft pin snap

1шт.

47

9415235

RING, SNAP

RING SNAP RING - shift lever spring retainer snap

1шт.

48

1851995

NUT

NUT - plunger rod guide adjustable

1шт.

49

1968396

SCREW

SCREW - commutator pole shoe

8шт.
