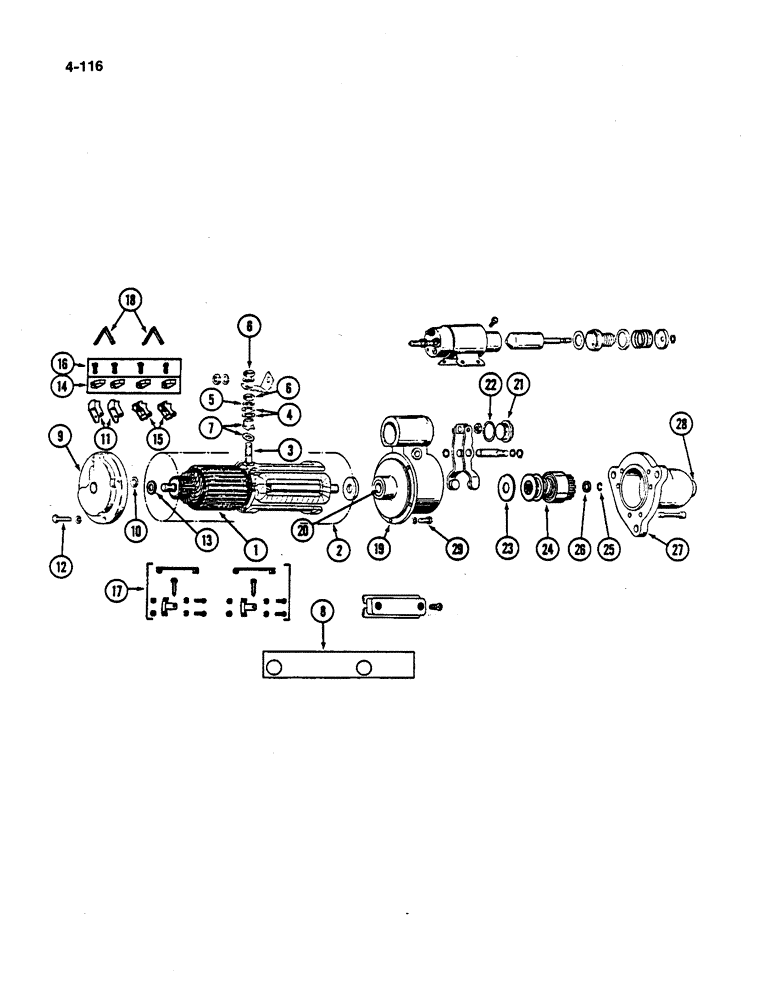

Запчасти Case IH 782 (4-116) - STARTER MOTOR DELCO REMY, LOW DRUM P.I.N. 682 AND AFTER HIGH DRUM P.I.N. 2125 AND AFTER (06) - ELECTRICAL SYSTEMS

1113496

STARTING MOTOR

MOTOR - starting, 107584C91 (Order 1990318)

1шт.

104211A1GV

STARTER MOTOR

Value

1шт.

104211A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104211A1C

CORE-STARTER

Return Number

1шт.

87297334

REMAN-STARTER

Remanufactured Starter

1шт.

87297335

CORE-STARTER

Return Number

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

BOLT - hex, 3/8 NC x 1-1/8 inch

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120381

WASHER

WASHER - lock, light, 3/8 inch

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, Jam, 3/8"-16, G5

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

1

1851961

ARMATURE

ARMATURE

1шт.

2

1852026

COIL

FIELD COIL ASSEMBLY - 4 coils

1шт.

3

1950561

STUD

STUD - coil terminal

1шт.

4

1922457

WASHER

WASHER - coil terminal stud insulated

2шт.

5

1914647

WASHER

WASHER - coil terminal stud plain

1шт.

6

9414418

NUT

NUT - coil terminal stud

1шт.

7

1965472

PACKAGE

PACKAGE - coil terminal stud insulated bushing

1шт.

8

1914873

INSULATOR

INSULATION - field coil

2шт.

9

1891925

FRAME

FRAME - commutator end

1шт.

1891929

WICK

WICK - commutator end frame oil

1шт.

10

1891927

BUSHING

BUSHING - commutator end frame

1шт.

11

1940477

HOLDER

HOLDER - commutator brush ground

2шт.

12

1914869

SCREW

SCREW - commutator end frame

4шт.

13

1914842

WASHER

WASHER - commutator end frame

1шт.

14

1906987

BRUSH

BRUSH - commutator

4шт.

15

1950546

HOLDER

HOLDER - commutator brush insulated

2шт.

16

1959514

SCREW

SCREW - commutator brush holder

4шт.

17

1877164

COMMUTATOR BRUSH

PACKAGE - commutator brush support

2шт.

18

1945620

SPRING

SPRING - commutator brush

2шт.

19

1851986

HOUSING

SPARE PART HOUSING - brake lever

1шт.

1916439

WICK

WICK - brake lever housing coil

1шт.

20

1933999

BUSHING

BUSHING - brake lever housing

1шт.

21

1945356

PLUG

PLUG - brake lever housing inspection

1шт.

22

1964857

GASKET

GASKET - inspection plug

1шт.

23

R15043

WASHER

WASHER - brake lever housing and motor drive

1шт.

24

146485C1

DRIVE

SPARE PART DRIVE - motor positork, right

1шт.

25

1928022

SNAP RING

RING - pinion stop retainer

1шт.

26

1851546

COLLAR

COLLAR - pinion stop

1шт.

27

830711

HOUSING

HOUSING - drive end

1шт.

1916439

WICK

WICK - drive end housing oil

1шт.

1916272

O-RING

O-RING - drive end housing seal

1шт.

28

1955994

BUSHING

BUSHING - drive end housing

1шт.

29

1914869

SCREW

SCREW - lever housing

5шт.
