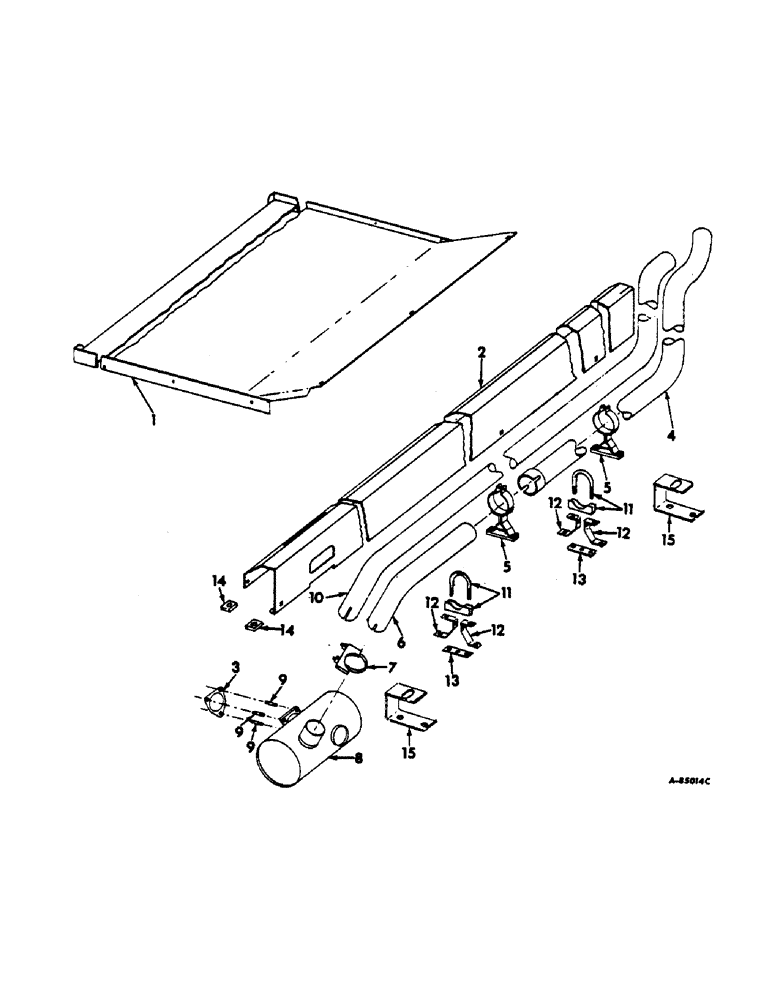

Запчасти Case IH 622 (C-02) - CARBURETED ENGINE, EXHAUST SYSTEM AND SHIELDS, COTTON (01) - ENGINE

1

673336R21

ASSY, engine

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16-18 x 1/2 znd hex-hd mach

3шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

3шт.

2

673335R21

ASSY, exhaust pipe, belt drive, note C

1шт.

2

674694R11

ASSY, exhaust pipe, hydrostatic drive, note C

1шт.

19286R1

BOLT, 5/16 x 3/4 C-Z hex-hd mach

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

3шт.

2

201395C11

ASSY, exhaust pipe, belt drive, note D

1шт.

2

201393C11

ASSY, exhaust pipe, hydrostatic drive, note D

1шт.

3

673352R1

GASKET

exhaust muffler

1шт.

4

201936C1

tail exhaust long, note A

1шт.

4

674693R2

tail exhaust long, replaces 673334R1, note B, if 674693R2 is required order service package 201942C92

1шт.

5

673340R2

ASSY, tail pipe support, note B

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

4шт.

6

201937C1

exhaust short, note A

1шт.

6

673332R1

exhaust short, note B

1шт.

7

266316C91

ASSY, exhaust pipe, note A

2шт.

7

215327R91

CLAMP

muffler, replaces 62972D, note B

1шт.

8

201929C1

ASSY, exhaust, note A

1шт.

8

673329R1

ASSY, exhaust, note B, if 673329R1 is required order service package 201942C92

1шт.

9

367442R1

3/8-16 x 1-3/4

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

202482C1

tail exhaust, note E

1шт.

11

266316C91

ASSY, exhaust pipe, note A

1шт.

12

201934C1

exhaust pipe, note A

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

201935C1

rubber cord, note A

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

611344R1

WASHER

11/32 x 7/8 x 11 ga C-Z

4шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

2шт.

14

483360R91

NUT

5/16-18 spring

6шт.

15

202480C1

exhaust pipe, note E

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga. C-Z

4шт.

20893R1

WASHER

11/32 x 1 x 11 ga C-Z

2шт.

201942C92

exhaust system service, note B, consists of (1) muffler 201929C1, (1) gasket 673352R1, (1) pipe 2024482C1, (3) clamp 266316C91, (2) bracket 202480C1

1шт.
