(L-03) - WHEELS AND WHEEL WEIGHTS, DRIVE WHEELS

Запчасти Case IH 622 (L-03) - WHEELS AND WHEEL WEIGHTS, DRIVE WHEELS Wheels & Wheel Weights

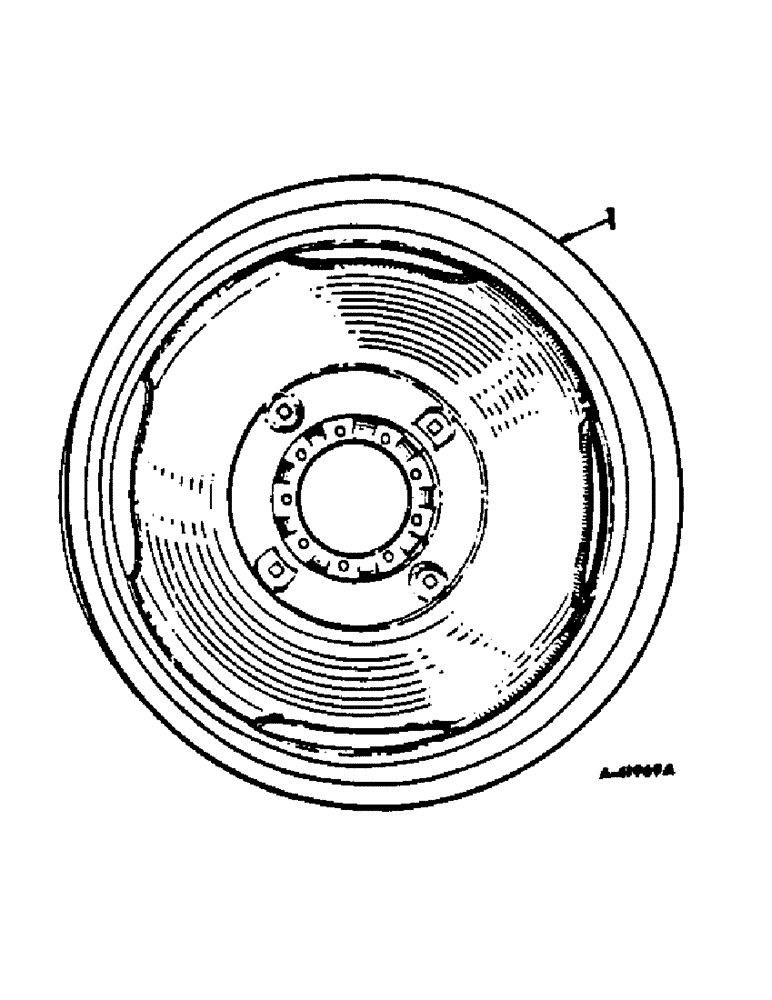

Схема запчастей Case IH 622 - (L-03) - WHEELS AND WHEEL WEIGHTS, DRIVE WHEELS Wheels & Wheel Weights
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

666328R92

RIM ASSY, drive wheel, for 15.5-38 tire

1шт.

554480R1

WHEEL NUT

drive wheel bolt

18шт.

1

666327R91

WHEEL

RIM ASSY, drive wheel, special, for 18.4-34 tire

2шт.

383697R1

PLUG

valve hose, used w/666327R91

2шт.

174280C91

PACKAGE

wheel bolt replacement

9шт.

204169C91

OIL SEAL

PACKAGE, drive wheel reinforcement, consists of

1шт.

RING, wheel reinforcement

1шт.

174280C91

PACKAGE

wheel bolt replacement

9шт.
