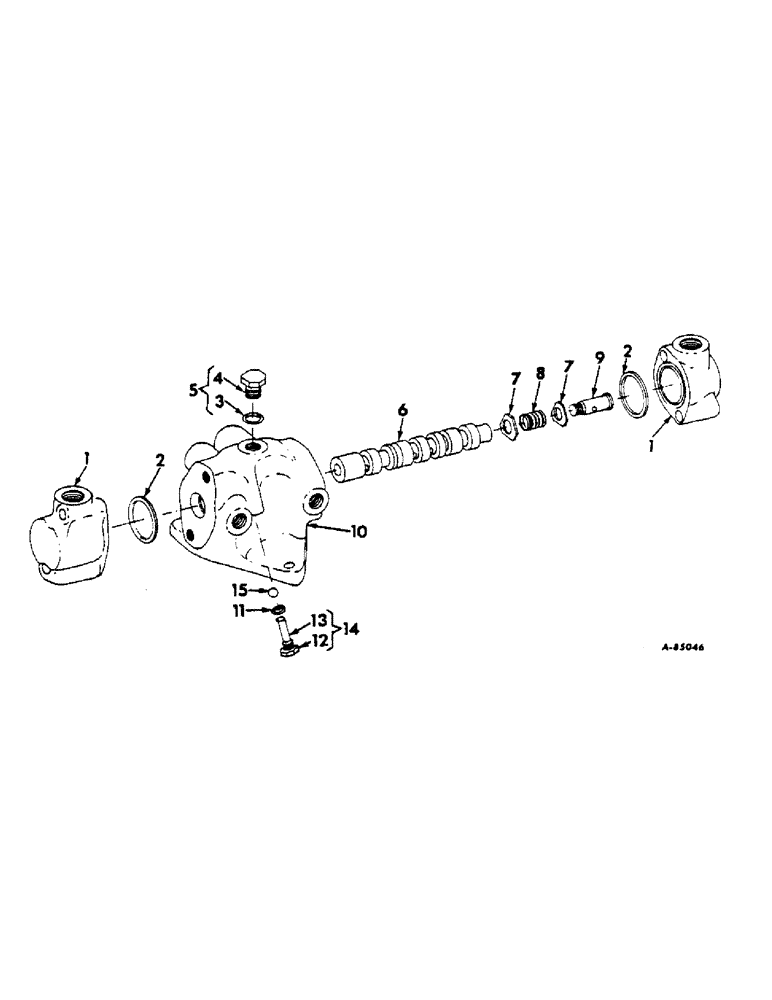

Запчасти Case IH 622 (J-06) - STEERING MECHANISM, POWER STEERING VALVE ASSEMBLY, STEERING Steering Mechanism

673295R91

VALVE

ASSY, steering consists of the following service parts

1шт.

1

379894R1

CAP

end

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

2

387088R1

SEALING RING,1.237" ID x 0.103" Width

2шт.

3

673784R1

O-RING

1шт.

4

NOT SERVICED SEPARATELY, order 673783R91

1шт.

5

673783R91

ASSY, plug & O

1шт.

6

NOT SERVICED SEPARATELY, order 673295R91

1шт.

7

379897R1

WASHER

centering

2шт.

8

379905R1

SPRING

centering

1шт.

9

379896R1

SCREW,3/8" - 24, Drilled, W/ Nylon Pellet

centering

1шт.

10

NOT SERVICED SEPARATELY, order 673295R91

1шт.

11

673781R1

order 379901R91

1шт.

12

NOT SERVICED SEPARATELY, order 379901R91

1шт.

13

673782R1

NO LONGER SERVICED,1/8" x 15/16", Slotted

Pin, 1/8" x 15/16", Slotted

1шт.

14

379901R91

PLUG

PIN ASSY, plug & roll

1шт.

15

16008R1

BALL,1/4" Dia, Steel

1/4 stl

1шт.
