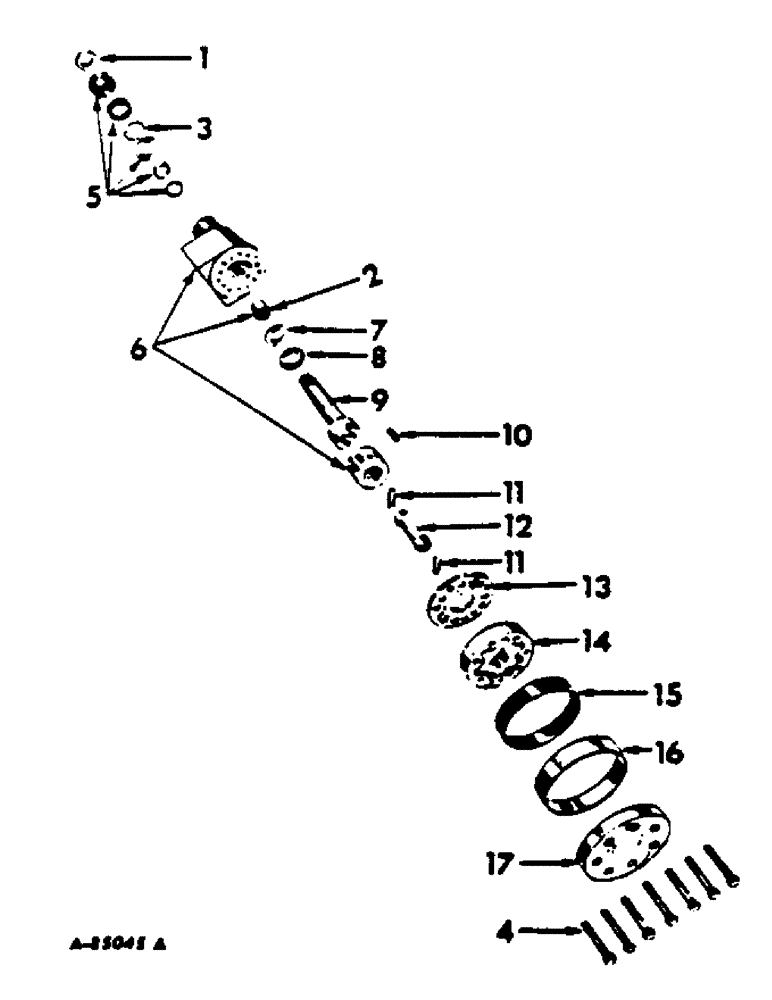

Запчасти Case IH 622 (J-04) - STEERING MECHANISM, HAND STEERING PUMP Steering Mechanism

674722R91

ASSY, hand steering, replaces 673294R91, consists of the following service parts

1шт.

1

F19646

LOCK NUT,13/16"-20, Thin

wheel

1шт.

2

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

ASSY, body

1шт.

3

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

4

379699R1

BOLT,Spcl, Hex, 5/16" - 18 x 1 3/4", Gr 5, HT

pump end cover

7шт.

5

68201C1

SEAL KIT

KIT, service, shaft seal ring, seal, seal spacer, felt dust seal, backup washer

1шт.

6

NOT SERVICED SEPARATELY, order 674722R91

1шт.

7

379785R1

THRUST WASHER

RACE, bearing

1шт.

8

379783R91

THRUST BEARING

thrust

1шт.

9

379784R1

SHAFT

coupling

1шт.

10

379700R1

PIN

spool

1шт.

11

379693R1

PIN

link

2шт.

12

379701R1

LINK

pump

1шт.

13

396545R1

PLATE

SPACER, pump

1шт.

14

379697R3

ROTOR

MOTOR ASSY, 616 501M thru 519M, 622 501M thru 604M

1шт.

14

384375R3

ROTOR

ASSY, 616 520N up, 622 605N up

1шт.

15

379781R1

BOOT

SEAL, rotor, 616 501M thru 519M, 622 501M thru 604M

1шт.

15

384373R1

SEAL

rotor, 626 520N up, 622 605N up

1шт.

16

379696R1

RING

RETAINER, seal, 616 501M thru 519M, 622 501M thru 604M

1шт.

16

384374R1

RETAINER

seal, 616 520N up, 622 605N up

1шт.

17

379698R1

COVER

pump end

1шт.
