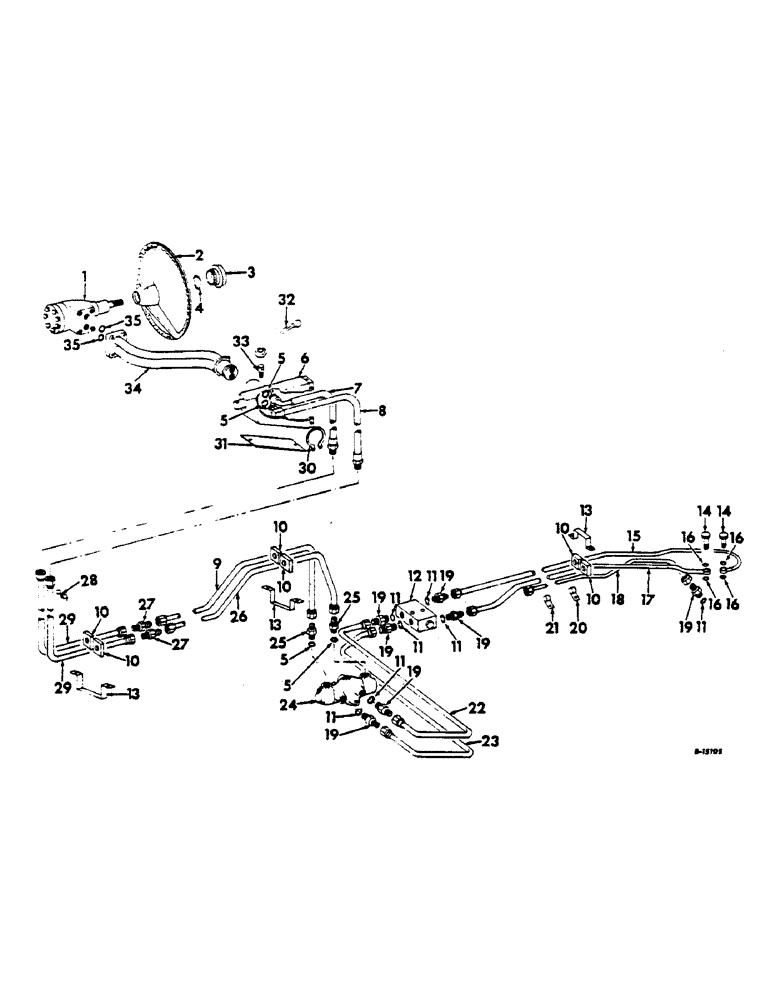

Запчасти Case IH 622 (J-02) - STEERING MECHANISM, POWER STEERING Steering Mechanism

1

674722R91

ASSY, hand steering, replaces 673294R91, for components see list of parts under details of hand steering pump, section J

1шт.

2

385156R1

WHEEL (STEERING)

steering

1шт.

2

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

3

68837R1

CAP

steering wheel, replaces 378394R1

1шт.

4

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

4шт.

6

673203R2

steering bracket

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

5шт.

7

673314R1

ASSY, steering hand pump RH

1шт.

8

673313R1

ASSY, steering hand pump LH

1шт.

9

673368R11

ASSY, steering intermediate RH

1шт.

10

200536C1

BUSHING, 3/8 to 1/2 hydraulic line, replaces 673386R1

6шт.

11

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

7шт.

12

673293R92

VALVE

ASSY, steering double check, for components see list of parts under power steering double check valve assy, this section

1шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

13

673385R1

CLAMP

hydraulic line

3шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 znd hex-hd mach

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

14

370922R1

SCREW,Hex, 7/16" - 20 x 1"

pressure tube union

2шт.

21756R1

WASHER

15/32 x 3/4 x 22 ga znd

2шт.

15

673377R11

ASSY, bolster to check valve LH

1шт.

16

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

4шт.

17

673378R11

ASSY, bolster to check valve RH

1шт.

18

673372R11

ASSY, steering bolster leakage return

1шт.

19

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

7шт.

20

105247

no. 6 1/4 x 9/16 closed

1шт.

21

102424R1

CLAMP

tube

1шт.

22

673375R11

ASSY, check valve to steer valve RH

1шт.

23

673373R11

ASSY, check valve to steer valve LH

1шт.

24

673295R91

VALVE

ASSY, steering, for components see list of parts under power steering valve assy, this section

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube short swivel

2шт.

26

673367R11

ASSY, steering intermediate LH

1шт.

27

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 37 deg hyd flared tube

2шт.

28

588322R2

CLAMP, hydraulic line

1шт.

18628R1

BOLT,Short NK, 1/4"-20 x 1 1/4", G2

1/4 x 1-1/4 znd sq-nk crg

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

Q278

11/32 x 2-1/8 x 11 ga

1шт.

29

673362R11

ASSY, steering upper

2шт.

30

324738R1

SNAP RING,#287, Ext

steering pump support

1шт.

31

673384R1

inspection panel

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 C-Z cr-rec-pan-hd mach

2шт.

32

673382R1

steering pivot control

1шт.

33

673383R2

steering pivot control clamp

1шт.

17176R1

LOCK PIN,3/16" x 1", Slotted

Pin, 3/16" x 1", Slotted

1шт.

34

673360R1

ASSY, steering pump support

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

35

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

2шт.
