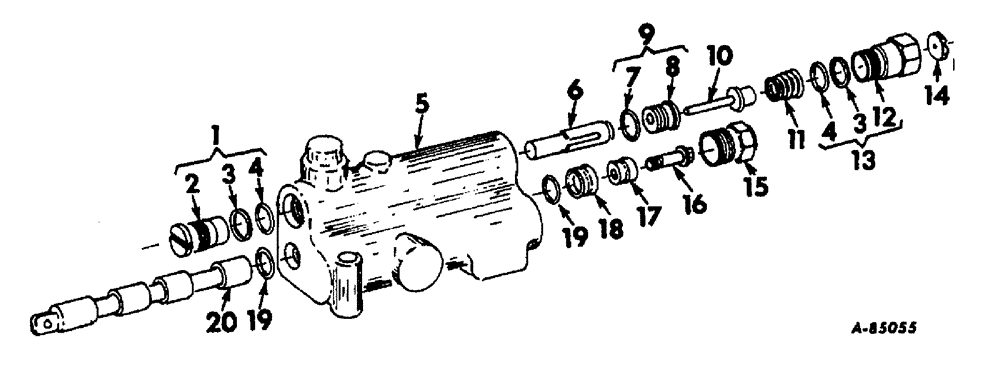

Запчасти Case IH 622 (R-34) - PICKER DRUM, DRUM HEIGHT CONTROL VALVE Picker Drum

673805R91

VALVE

ASSY, drum height control consists of the following service parts

1шт.

1

674515R91

PLUG

ASSY

1шт.

2

NOT SERVICED SEPARATELY, order 674515R91

1шт.

3

NOT SERVICED SEPARATELY, order 674518R91

1шт.

4

NOT SERVICED SEPARATELY, order 674518R91

1шт.

5

NOT SERVICED SEPARATELY, order 673805R91

1шт.

6

826032C1

PLUNGER

lockout, replaces 674512R1

1шт.

7

NOT SERVICED SEPARATELY, order 674518R91

1шт.

8

NOT SERVICED SEPARATELY, order 674505R91

1шт.

9

674505R91

SEAT

ASSY

1шт.

10

588351R91

VALVE

POPPET ASSY

1шт.

11

674517R1

SPRING

lockout

1шт.

12

NOT SERVICED SEPARATELY, order 674507R91

1шт.

13

674507R91

PLUG

ASSY, port adapter

1шт.

14

674516R1

PORT

PLAGE, orifice

1шт.

15

674493R91

CAP

ASSY

1шт.

16

674513R1

SCREW

1шт.

17

674514R1

SPACER, spool

1шт.

18

674775R1

BUSHING

replaces 674494R1

1шт.

19

NOT SERVICED SEPARATELY, order 674518R91

1шт.

20

NOT SERVICED SEPARATELY, order 673508R91

1шт.

674518R91

SEAL KIT

KIT, major seal repair, consists of (1) poppet assy, (5) o-rings, (2) back-up washers

1шт.
