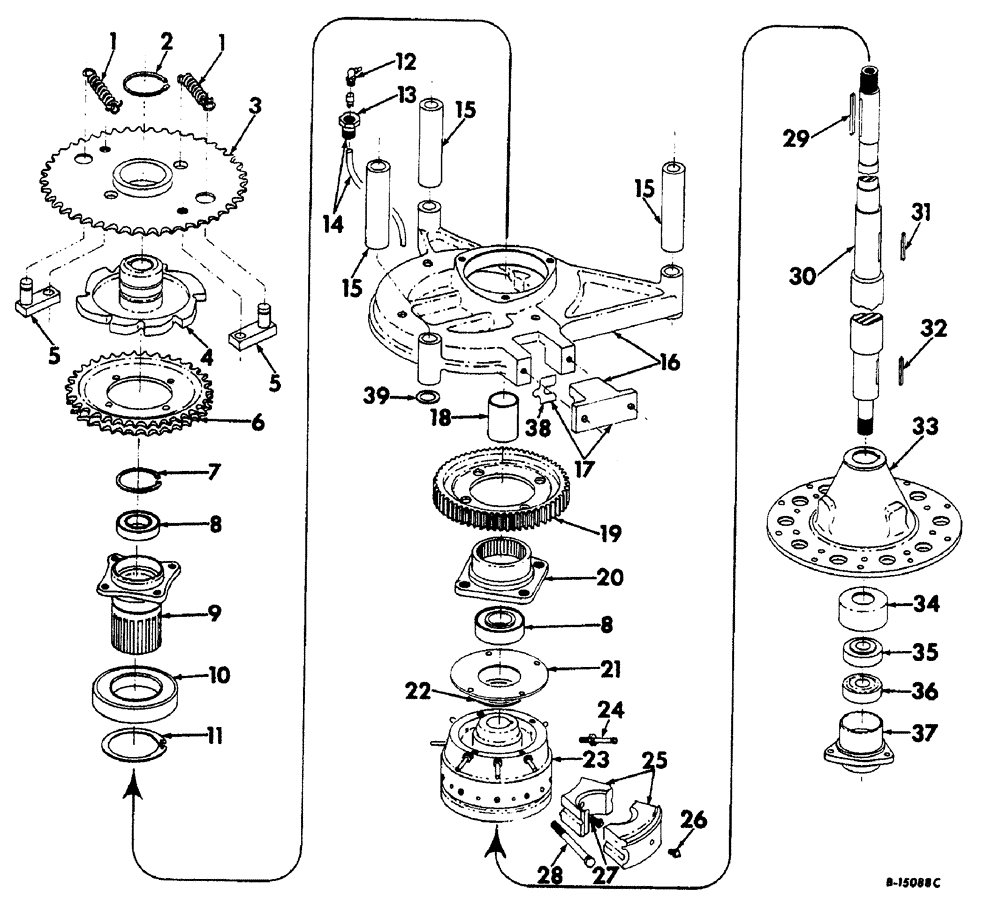

Запчасти Case IH 622 (R-26) - PICKER DRUM, DRUM ROTOR AND DRIVE Picker Drum
№
Артикул
Название
Примечание
Количество
1
204856C1
SPRING
ASSY, drawbar, replaces 665025R11
8шт.
633090R1
WASHER
2.28 x 2.750 x .06
4шт.
2
644771R1
SNAP RING,#225, Ext
Ring, Snap, , safety clutch ratchet #225, Ext
4шт.
3
650499R93
SPROCKET ASSY, drum drive front, 56 T
2шт.
3
661717R93
SPROCKET ASSY.
SPROCKET ASSY, drum drive rear, 50 T, unit A L501M thru L522M, unit B R501M thru R521M, unit C L501M thru L607M, unit D R501M thru R607M
1шт.
3
660496R93
SPROCKET ASSY.
SPROCKET ASSY, drum drive rear, 53T, unit A L523N up, unit B R522N up, unit C L608N up, unit D R608N up
1шт.
4
660507R1
RATCHET
safety clutch
4шт.
5
665022R92
BAR
PAWL ASSY, ratchet
8шт.
181427
BOLT,Hex, 1/2" - 20 x 1", Gr 5
SCREW, 1/2-20 x 1 hex-hd cap
8шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
8шт.
6
662504R1
SPROCKET ASSY.
SPROCKET, spindle drive front, 44T
2шт.
6
672444R1
SPROCKET, spindle drive rear, 38T, unit A L501M thru L522M, unit B R501M thru R521M, unit C L501M thru L607M, unit D R501M thru R607M
1шт.
6
668560R1
SPROCKET ASSY.
SPROCKET, spindle driven rear, 40T, unit A L523N up, unit B R522N up, unit C L608N up, unit D R608N up
1шт.
181360
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5
SCREW, 3/8-24 x 3/4 hex-hd cap
8шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
7
560819R1
SNAP RING,#283, 3.009", Int, Spiral
RING, upper bearing retainer snap
8шт.
8
613174R91
BALL BEARING,35 mm ID x 72 mm OD x 25 mm
ASSY, drum drive shaft
8шт.
9
201533C1
HUB
ASSY, sprocket and gear, includes Ref. no. 20, replaces 672445R2 and 672447R2, if 672445R2 or 672447R2 is required order 201533C1 and 560819R1
1шт.
10
201118C91
BEARING ASSY,65mm ID x 100mm OD x 18mm W
cam center, 616 CH501M thru CH585N, 622 CH501M thru CH1039N
4шт.
17404R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16 x 1/2 hex-hd mach
12шт.
Q398
WASHER
11/32 x 7/8 x 16 ga
12шт.
11
300048R1
SNAP RING,#255, Ext
Ring, Snap, , cam bearing #255, Ext
4шт.
12
80711
LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg
FITTING, 1/8-27 ptf 65 deg angle lub
4шт.
13
667590R1
FITTING
BUSHING, cam lubricator, 616 CH501M thru CH585N, 622 CH501M thru CH1039N
4шт.
119240
SPACER
NUT, 1/4 pipe lock
4шт.
14
669784R21
TUBE,1" OD, 5.33, 3.62" Length
ASSY, cam lubricator
4шт.
15
657744R1
SPACER
cam upper
10шт.
16
672438R11
CAM ASSY, LH drum front, units A and C
1шт.
16
672439R11
CAM ASSY, RH drum front, units B and D
1шт.
16
672441R11
CAM ASSY, LH drum rear, units A and C
1шт.
16
672442R11
CAM ASSY, RH drum rear, units B and D
1шт.
17
674421R11
PLUG W/SHIMS, picker cam front LH, units A and C
1шт.
17
674422R11
PLUG W/SHIMS, picker cam front RH, units B and D
1шт.
17
674423R11
PLUG W/SHIMS, picker cam rear LH, units A and C
1шт.
17
674424R11
PLUG W/SHIMS, picker cam rear RH, units B and D
1шт.
17420R1
BOLT,Hex, 3/8"-16 x 7/8", G2
3/8 x 7/8 hex-hd mach
8шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
18257R1
SCREW, 5/8-11 hex-hd cap
12шт.
102639
NUT,5/8"-11, G5
12шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
12шт.
18
672448R2
SPACER
inner bearings
4шт.
19
660620R1
GEAR
spindle drive rear
2шт.
181360
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5
SCREW, 3/8-24 x 3/4 hex-hd cap
8шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
19
11696R
GEAR
spindle drive front
2шт.
181360
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5
SCREW, 3/8-24 x 3/4 hex-hd cap
8шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
20
HUB, spindle gear, not serviced separately, see Ref. no. 9
1шт.
21
672465R1
COVER, front bearing head
2шт.
17404R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16 x 1/2 hex-hd mach
10шт.
21
672466R1
COVER, rear bearing head
2шт.
17404R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16 x 1/2 hex-hd mach
8шт.
22
673297R1
GASKET, bearing head cover
4шт.
23
672463R1
HEAD
picker bar bearing front, order 672463R2 and 15 674958R1 tubes
2шт.
23
672463R2
HEAD
picker bar bearing front
2шт.
23
672464R1
HEAD
picker bar bearing rear, order 672464R2 and 13 674958R1 tubes
2шт.
23
672464R2
HEAD, picker bar bearing rear
2шт.
24
674958R1
OILER
TUBE, spindle oiler, 616 R522N up, L523N up, 622 R608N up, L608N up
56шт.
24
20555R1
ROLL PIN
PIN, 3/16 x 1-1/2 light coiled spring, 616 R501M thru R521M, L501M thru L622M, 622 R501M thru R607M, L501M thru L607M
56шт.
25
672467R11
BEARING
W/CAP, picker bar front
30шт.
25
672470R11
BEARING
W/CAP, picker bar rear
26шт.
26
87414
LUBE NIPPLE,1/4" - 28
FITTING, 1/4-28 str tap, lub
56шт.
27
672469R1
SCREW
5/16-18 x 3/4 cr-rec flat hd mach w/nylon insert
56шт.
28
660533R2
BOLT,3/8" - 16 x 3 1/2", Grade 5
3/8 x 3-1/2 dld-hex-hd mach
56шт.
200458C1
CAP WASHER
bearing cap, replaces 50793H
56шт.
29
11693R
KEY
5/16 x 2-1/2 sq parallel
4шт.
30
672459R1
SHAFT, picker drum, 2 units A and B
1шт.
30
672460R1
SHAFT, picker drum, 2 units C and D
1шт.
427639
SLOTTED NUT,3/4"-16, G5
NUT, 3/4-16 slt-hex.
4шт.
672496R1
LOCK NUT,1 1/8"-12, GA
NUT, 1-1/8-12 hex. lock
4шт.
478258R1
WASHER
1-5/32 x 1-3/4 x 11 ga C-Z
4шт.
10619P
WASHER, 1-21/32 x 2-1/4 x 16 ga
4шт.
31
586879R1
KEY
5/16 x 2 sq parallel
4шт.
32
Q1443
KEY,5/16" Sq x 1 1/2", Par
5/16 x 1-1/2 sq parallel
4шт.
33
672457R1
PLATE, picker bar support front
2шт.
33
672458R1
PLATE, picker bar support rear
2шт.
34
669809R1
SHIELD
pedestal lower bearing
4шт.
35
669808R1
WASHER
drum shaft lower
4шт.
36
669807R91
BALL BEARING,0.751" ID x 52 mm OD x 0.7"
ASSY, pedestal lower
4шт.
37
669806R1
CAGE
pedestal lower bearing
4шт.
17405R1
BOLT, 3/8 x 1/2 hex-hd mach
4шт.
17412R1
BOLT,Hex, 3/8" - 16 x 3/4", Gr 2
3/8 x 3/4 hex-hd mach
12шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
16шт.
38
674425R1
KIT, picker cam plug shim, consists of (2) .003 thick 674426R1, (2) .005 thick 674427R1, (2) .007 thick 674428R1, (4) .010 thick 674429R1
1шт.
39
201542C1
SHIM
cam level .010, or as required
16шт.
39
201543C1
SHIM
cam level .007, or as required
24шт.
201786C91
PACKAGE, sprocket and gear splined hub service, 616 000656 and up, 622 0001315 and up, consists of (4) hub assy 201533C1, (4) brg assy 201118C91, (4) rings 300048R1, (4) rings 560819R1
1шт.
Выбрано товаров: 91
