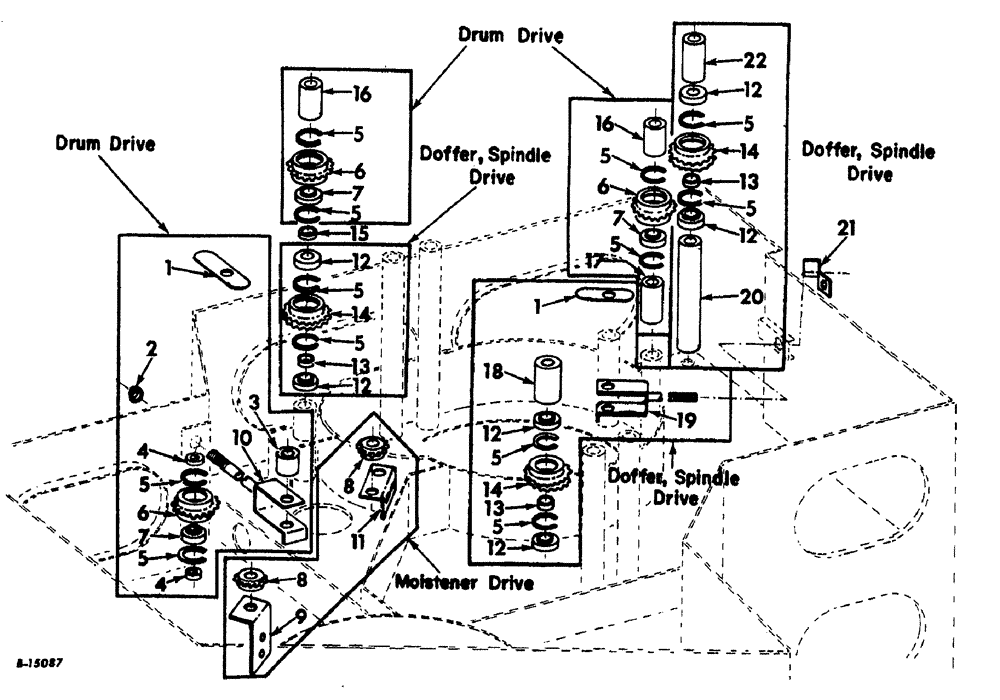

Запчасти Case IH 622 (R-24) - PICKER DRUM, IDLER SPROCKETS Picker Drum

1

10215R

COVER

idler adj slot

4шт.

2

672456R1

SPACER

drum drive adj idler bolt

2шт.

3

668065R1

SPACER

drum drive adj idler

2шт.

4

671073R1

SPACER

idler bearing short

4шт.

5

10213R

OIL SEAL

RING, idler sprocket snap

24шт.

6

669793R1

DRIVE SPROCKET

SPROCKET, drum drive idler

6шт.

7

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

ASSY, idler sprocket

6шт.

102639

NUT,5/8"-11, G5

2шт.

18257R1

SCREW, 5/8-11 x 11 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

669847R91

SPROCKET ASSY.

IDLER, moistener drive

4шт.

17523R1

BOLT, 1/2 x 2 hex-hd mach

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

9

669845R1

ANGLE

SUPPORT, moistener stationary sprocket

2шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

668062R91

FORK

YOKE ASSY, drum drive adj idler

2шт.

17510R1

BOLT, 5/8 x 4-1/4 sq-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

2шт.

102763H

WASHER

WASHER, 41/64 x 7/8 x 13 ga

2шт.

11

669846R1

SUPPORT

moistener adj idler sprocket

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

4шт.

12

665420R91

BEARING ASSY,0.625" ID x 1.5748" OD x 0.4724"

ASSY, idler sprocket

12шт.

102639

NUT,5/8"-11, G5

2шт.

18257R1

SCREW, 5/8-11 x 11 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

665413R1

SPACER

bearing

6шт.

14

10219R

SPROCKET ASSY.

SPROCKET, spindle & doffer drive idler

6шт.

15

672452R1

SPACER

idler bearing med

2шт.

16

672450R1

SPACER

stationary idler top

4шт.

17

672451R1

SPACER

stationary idler middle

2шт.

18

668061R1

SPACER

spindle & doffer drive idler sprocket

2шт.

19

672453R91

YOKE

ASSY, spindle & doffer drive idler

2шт.

13630R1

BOLT, 5/8 x 6-1/4 sq-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

424623R1

WASHER, 21/32 x 1-1/2 x 11 ga C-Z

2шт.

102763H

WASHER

WASHER, 41/64 x 7/8 x 13 ga

6шт.

20

665417R1

SPACER

idler sprocket lower

2шт.

21

672455R1

CLIP

spindle & doffer drive adj idler bolt

2шт.

22

665416R1

SPACER

idler sprocket upper

2шт.
