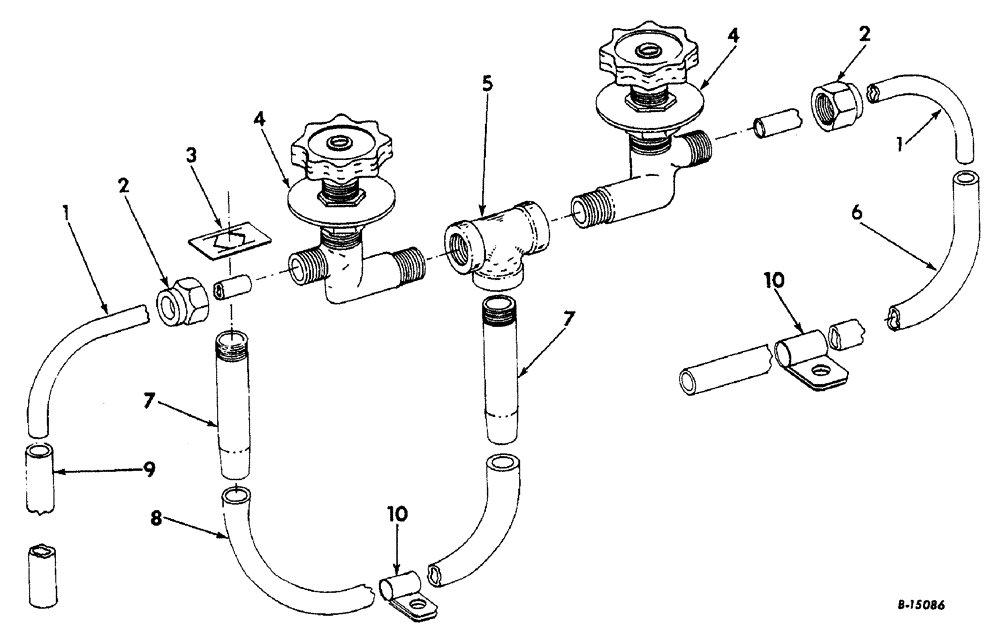

Запчасти Case IH 622 (R-20) - PICKER DRUM, WATER LINES, IN DRUM Picker Drum

1

660693R1

PIPE

water metering, Serial Range: valve-moistener

4шт.

2

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT, 5/16 ball sleeve

4шт.

3

660698R1

NUT

water pipe connector

4шт.

4

659204R91

VALVE

ASSY, water metering

4шт.

5

217-10

TEE,1/8" - 27 NPTF Fem

1/8 galvanized pipe

2шт.

6

HOSE, connector to stand front, use 45 inches of 9/32 ID hose from a 50 foot roll marked, 665180R1

1шт.

7

655597R1

NIPPLE, LUBE

NIPPLE, 1/8 x 2 galvanized pipe

8шт.

8

HOSE, nipple to connector water, use 45 inches of 9/32 ID hose from a 50 foot roll marked, 665180R1

1шт.

9

HOSE, connector to stand rear, use 18 inches of 9/32 ID hose from a 50 foot roll marked, 665180R1

1шт.

10

140582

CLAMP

CLIP, no. 8 3/8 x 23/32 closed

6шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
