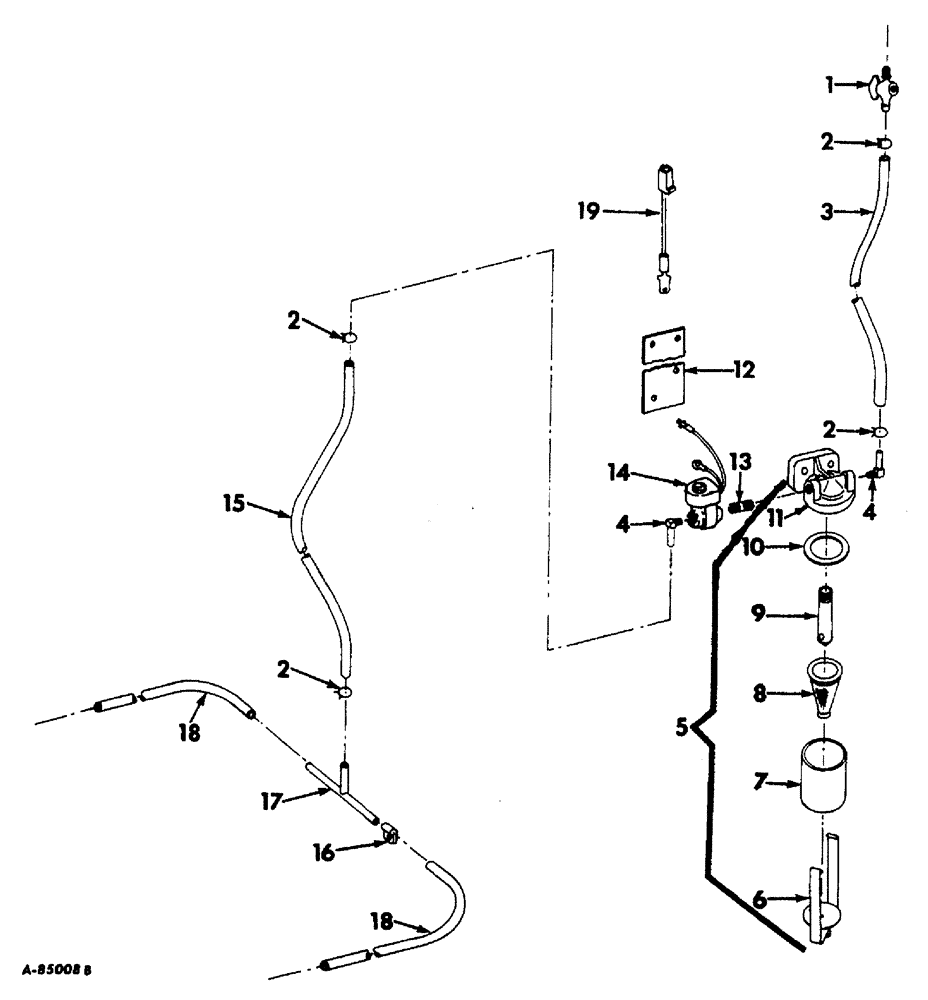

Запчасти Case IH 622 (R-18) - PICKER DRUM, WATER FILTER AND LINES Picker Drum

1

673316R1

VALVE

ASSY, water shutoff in tank

1шт.

2

313317R1

HOSE CLAMP,#12, 3/4", Spring

CLAMP, hose

4шт.

3

HOSE, tank to filter, use 54 in. of 1/2 in. hose from 50 ft. roll marked, 665181R1

1шт.

4

667482R1

ELBOW

90 deg

2шт.

5

672821R91

FILTER

ASSY, water

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 znd hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

174878

WASHER

1/4 C-Z hv int-tooth lock

2шт.

6

370785R91

CLAMP

BALE ASSY, water filter

1шт.

7

370783R1

BOWL

filter

1шт.

8

370784R91

FILTER SCREEN

SCREEN ASSY, water filter

1шт.

9

54762D

TUBE

center

1шт.

10

370520R1

GASKET

body

1шт.

11

NOT SERVICED SEPARATELY, order 672821R91

1шт.

12

672822R1

BRACKET, water filter mounting

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180358

LOCK WASHER,Int Tooth, 3/8", Hvy

WASHER, 3/8 C-Z int-tooth lock

2шт.

13

192050

NIPPLE, LUBE,Nipple, 1/4" NPT x 7/8"

NIPPLE, 1/4 x 7/8 C-Z pipe

1шт.

14

672824R91

VALVE

ASSY, water shutoff

1шт.

14

202172C1

KIT

ASSY, shut-off valve service, consists of (1) clip, retaining, (1) core assy, (1) gasket, body, (1) spring, core

1шт.

15

HOSE, valve to tee, use 70 in. of 1/2 in. hose from 50 ft. roll marked 665181R1

1шт.

16

263717R91

CLIP

water line tee

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

665245R91

TEE

ASSY, water line

1шт.

18

HOSE, tee to drum, use 29 in. of 9/32 in. hose from 50 ft. roll marked 665180R1

1шт.

19

203006C1

CABLE ASSY, jumper-water shut-off valve

1шт.
