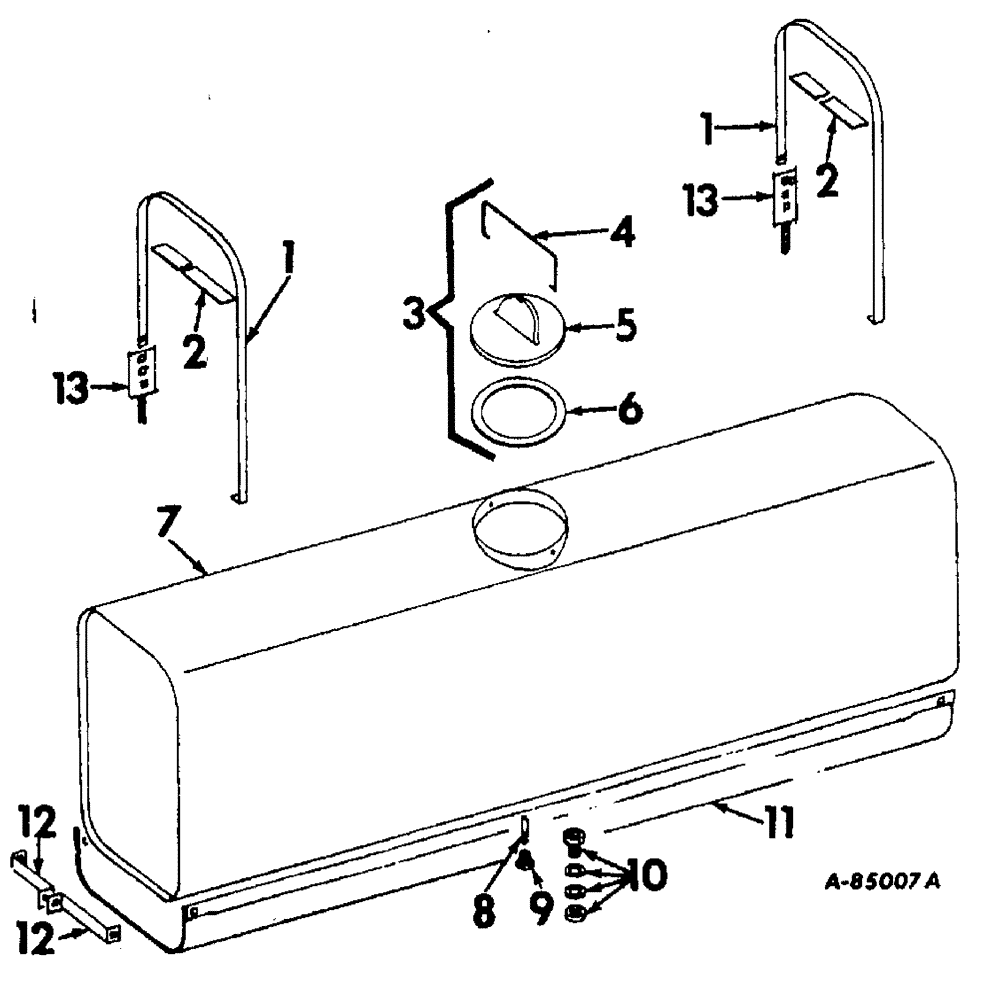

Запчасти Case IH 622 (R-17) - PICKER DRUM, WATER TANK Picker Drum

1

201494C1

STRAP

water tank, replaces 665982R21, if 665982R21 is required order 201492C1 and 201494C1

1шт.

2

LINING, water tank support, use 9 in. of 1-1/2 webbing from a 50 ft. roll marked 990541R1

1шт.

3

661988R11

CAP

ASSY, water tank

1шт.

4

661987R1

RETAINER

BAIL, water tank cap

1шт.

5

NOT SERVICED SEPARATELY, order 661988R11

1шт.

6

661989R1

GASKET

water tank cap

1шт.

7

666211R92

TANK

ASSY, water, special

1шт.

7

201488C91

TANK

polyethylene water, replaces 668069R11, includes Ref. no. 10, if 668069R11 is required order 201488C91, 201489C1 and 4201490C1

1шт.

8

105407

NO LONGER SERVICED,Nipple, 1/4" NPT x 1 1/2"

NIPPLE, 1/4 x 1-1/2 pipe, in water tank, used w/666211R92

1шт.

9

671025R1

BUSHING, water tank stand pipe, used w/666211R92

1шт.

10

201491C1

FITTING

S, tank, used w/201488C91

1шт.

11

201489C1

PAN

water tank, used w/201488C91

1шт.

12

201490C1

STRAP

water tank, used w/201488C91

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

201492C1

STRAP ASSY, water tank

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

481803R91

KIT

fiber glass repair, for 668069R11

1шт.
