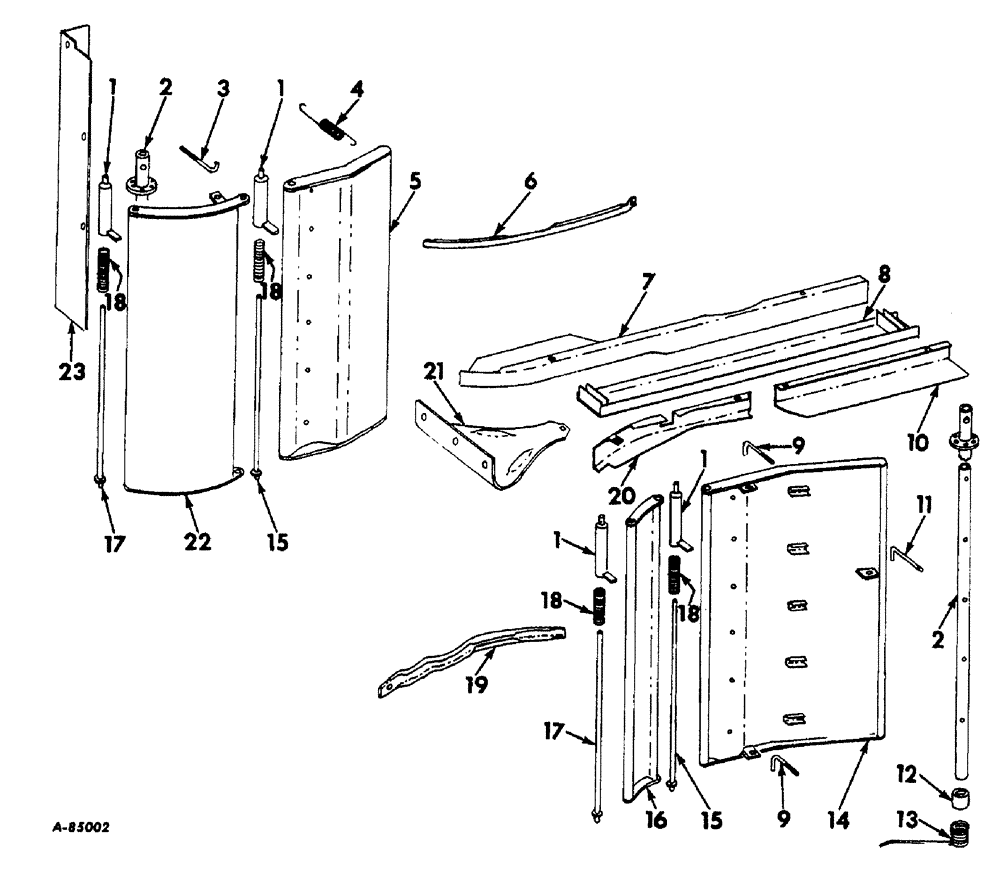

Запчасти Case IH 622 (R-06) - PICKER DRUM, PLANT COMPRESSORS AND THROAT SHEETS Picker Drum

1

673851R2

STEM

ROD ASSY, compressor sheet extension hinge

2шт.

2

209806C1

ADJUSTER

PIPE ASSY, compressor sheet tension spring LH, unit A, replaces 669762R11

2шт.

2

209808C1

PIPE ASSY, compressor sheet tension spring RH, unit B, replaces 672416R11

2шт.

2

209800C1

PIPE ASSY, compressor sheet tension spring LH, unit C, replaces 672430R11

2шт.

2

209804C1

PIPE ASSY, compressor sheet tension spring RH, unit D, replaces 672431R11

2шт.

119199

PIN, 3/8 x 1-1/2 cot.

4шт.

3

11799RB

ROD

front compressor sheet adj

4шт.

452164R1

NUT,3/8"-16, GB

3/8-16 esna stop

4шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

4

10310R

SPRING

front compressor extension sheet

2шт.

5

672425R91

SHEET

ASSY, front compressor extension, units C and D

1шт.

5

669754R92

SHEET

ASSY, front compressor extension, units A and B

1шт.

6

11785RA

GUIDE

BAR, drum rear slat LH, 13 unit A, 19 unit C

1шт.

6

658263R1

GUIDE

BAR, drum rear slat RH, 13 unit B, 19 unit D

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

13 unit A and B, 19 units C and D Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 13 units A and B, 19 units C and D 5/16"

1шт.

7

672311R91

SHEET

ASSY, drum throat inner side LH, units A and C

1шт.

7

672312R91

SHEET

ASSY, drum throat inner side RH, units B and D

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

672324R91

SHEET

ASSY, drum throat rear

2шт.

15089R1

BOLT

3/8 x 2-1/4 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

669752R1

ADJUSTMENT ROD

rear compressor sheet adj

4шт.

452164R1

NUT,3/8"-16, GB

3/8-16 esna stop

4шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

10

672335R11

ASSY, drum throat rear outer side LH, units A and C

1шт.

10

672336R11

ASSY, drum throat rear outer side RH, units B and D

1шт.

11

672424R1

STOP

rear compressor sheet

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

12

660755R1

SPACER

plant compressor spring pipe

4шт.

13

10323RA

SPRING

plant compressor sheet tension, 8 units A and B, 10 units C and D

1шт.

17495R1

BOLT, 5/16 x 1-3/4 hex-hd mach, 10 units A and C, 12 units B and D

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex., 10 units A and C, 12 units B and D

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , 10 units A and C, 12 units B and D 5/16"

1шт.

14

672427R91

SHEET

ASSY, rear compressor extension, units C and D

1шт.

14

669757R92

EXTENSION

SHEET ASSY, rear compressor extension, units A and B

1шт.

15

667227R2

ROD

compressor sheet extension hinge, 2 units C and D

1шт.

15

667228R2

ROD

compressor sheet extension hinge, 2 units A and B

1шт.

16

672422R91

SHEET ASSY.

ASSY, plant compressor rear, units C and D

1шт.

16

669749R91

SHEET

ASSY, plant compressor rear, units A and B

1шт.

17

672429R1

ROD

compressor sheet hinge, 2 units C and D

1шт.

17

669761R1

ROD

compressor sheet hinge, 2 units A and B

1шт.

18

10322R

SPRING

compressor sheet extension hinge rod

8шт.

19

672487R1

BAR

LH drum front slat, 13 unit A, 19 unit C

1шт.

19

672488R1

BAR

RH drum front slat, 13 unit B, 19 unit D

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

13 units A and B, 19 units C and D Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 13 units A and B, 19 units C and D 5/16"

1шт.

20

672317R91

SHEET

ASSY, drum throat outer side LH, units A and C

1шт.

20

672318R91

ASSY, drum throat outer side RH, units B and D

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

672310R1

SHEET

drum housing throat front

2шт.

15089R1

BOLT

3/8 x 2-1/4 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

672420R91

SHEET

ASSY, plant compressor front, units C and D

1шт.

22

672417R91

SHEET

ASSY, plant compressor front, units A and B

1шт.

23

672327R1

SHIELD

drum throat side LH, unit C

1шт.

23

672307R1

drum throat side, unit A

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

672308R1

drum throat side RH, unit B

1шт.

23

672328R1

SHIELD

drum throat side RH, unit D

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
