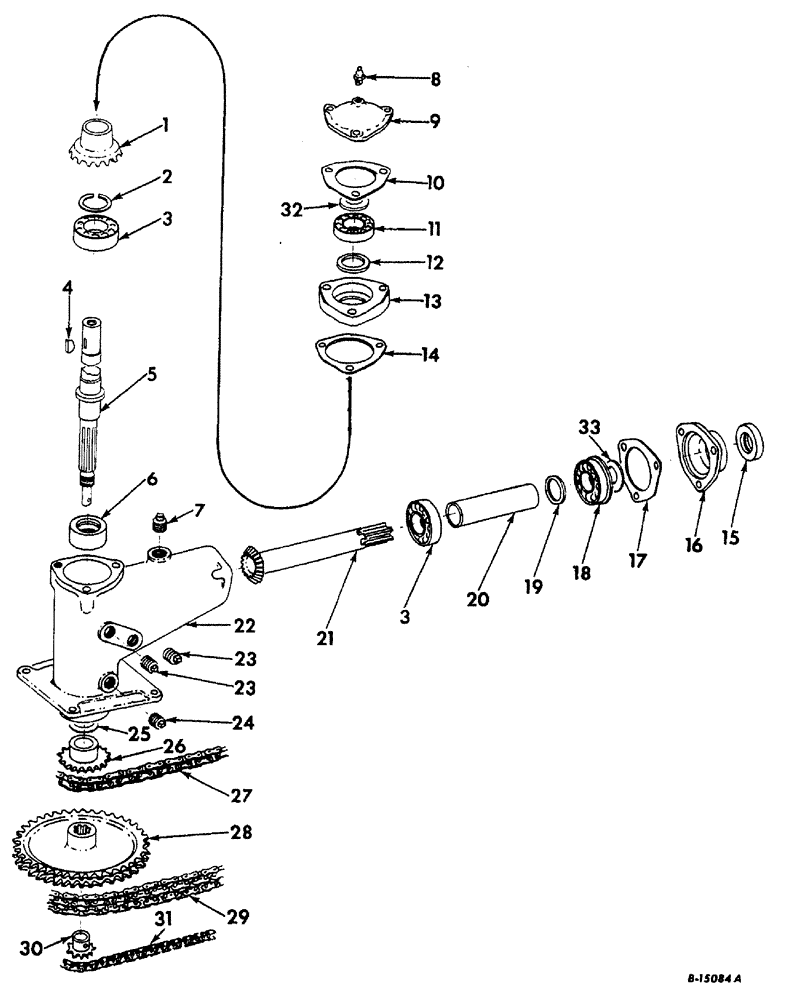

Запчасти Case IH 622 (R-04) - PICKER DRUM, RIGHT PICKER DRUM DRIVE, UNITS B AND D Picker Drum

1

656143R2

GEAR

picker drive

1шт.

2

359141R1

RING, SNAP

picker drive sprocket shaft

1шт.

3

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

ASSY, picker drive pinion & sprocket

2шт.

4

114735

KEY, 3/16 x 1-1/8 Woodruff 16

1шт.

5

660706R1

SHAFT

picker drive sprocket

1шт.

70120D

SLOTTED NUT,7/8"-14

7/8-14 slt hex. jam

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

181429

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

1/2-20 x 1-1/4 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

551659R1

WASHER

29/32 x 1-1/2 x 22 ga

1шт.

6

659711R91

SEAL

drive shaft oil

1шт.

7

10728P

PLUG

1/2 sq-hd dld pipe

1шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

9

15R

CAP

picker drive shaft bearing

1шт.

17510R1

BOLT, 3/8 x 1-7/8 hex-hd mach

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

10164R

GASKET

bearing cap

1шт.

11

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

ASSY, drive sprocket shaft upper

1шт.

12

10156R

SHIM

drive gear .0149 (or as required)

3шт.

12

10157R1

SHIM, drive gear .010 (or as required)

3шт.

13

660704R1

RETAINER

bearing

1шт.

14

656630R1

GASKET

bearing retainer

1шт.

15

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

pinion shaft oil

1шт.

16

656141R1

RETAINER

pinion shaft bearing

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

17

656168R1

GASKET

pinion shaft bearing

1шт.

18

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

ASSY, pinion shaft

1шт.

19

656166R1

SHIM

picker drive pinion .0149 (or as required)

3шт.

19

656167R1

SHIM

picker drive pinion .010 (or as required)

3шт.

20

656163R1

SPACER

picker drive pinion

1шт.

21

656142R2

SHAFT

picker drive pinion

1шт.

22

656140R1

HOUSING

picker drive

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

1/2 x 1-1/2 sq-nk crg

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

102637

NUT,1/2"-13, G5

4шт.

23

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2 sq-hd pipe

2шт.

24

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4 sq-hd pipe

1шт.

25

11926R

SHIM

picker drum drive sprocket (or as required)

3шт.

26

668847R1

SPROCKET ASSY.

picker drum drive

1шт.

27

672449R91

CHAIN (AG)

ASSY, drum drive

1шт.

28

662503R1

SPROCKET ASSY.

spindle & doffer drive 38T

1шт.

29

673489R1

CHAIN (AG)

ASSY, spindle & doffer drive

1шт.

30

10169RA

SPROCKET ASSY.

water distributor drive

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

Pin, 1/4" x 7/8", Slotted

1шт.

31

672485R91

CHAIN (AG)

ASSY, moistener drive

1шт.

32

18503D

RETAINER, picker drive sprocket shaft bearing

1шт.

33

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga

1шт.
