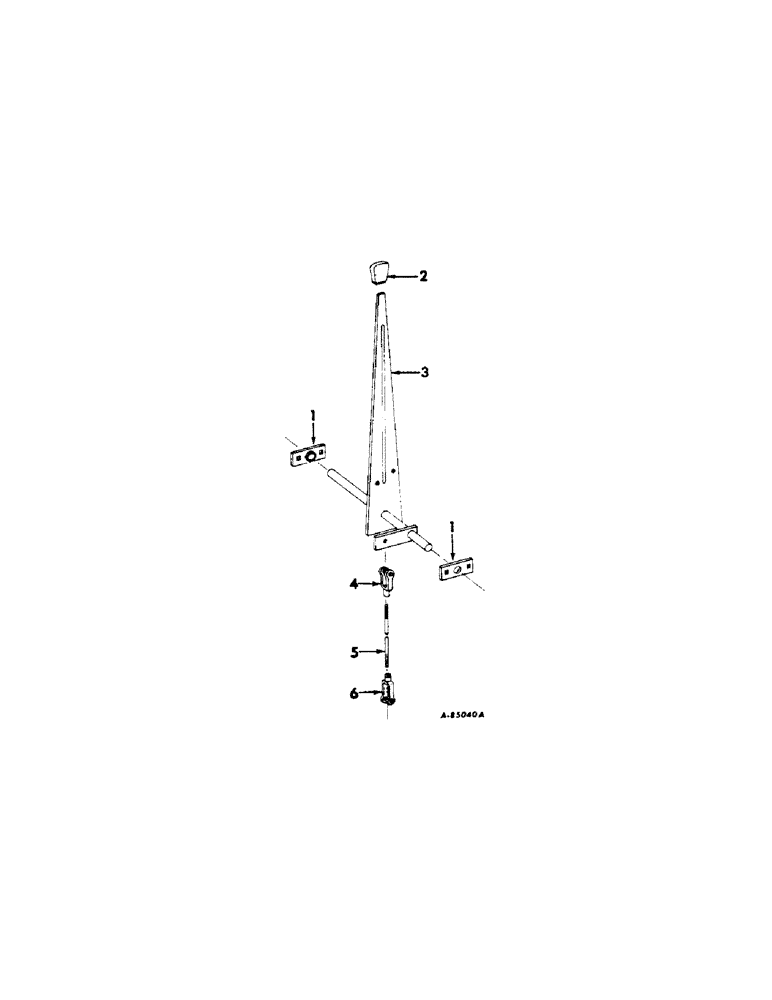

Запчасти Case IH 622 (H-17[1]) - BASKET CONTROL LEVER Controls

1

674725R1

PLATE ASSY, control support, replaces 673096R1

2шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

1/4 x 5/8 znd sq-nk drg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

382805R1

KNOB

control

1шт.

3

673462R1

ASSY, basket control

1шт.

4

213-315

CLEVIS

5/16-24 x 1-15/16 short adj rod end

1шт.

121741

FENDER

5/16 x 31/32 C-Z rod end

1шт.

137159

COTTER PIN

3/32" x 5/8"

1шт.

5

673476R1

control

1шт.

120368

NUT,5/16"-24, G5

1шт.

6

673477R1

control rod

1шт.

20286R1

SPLIT PIN/SAFETY PIN

3/16 x 1-1/32 C-Z std-hd

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.
