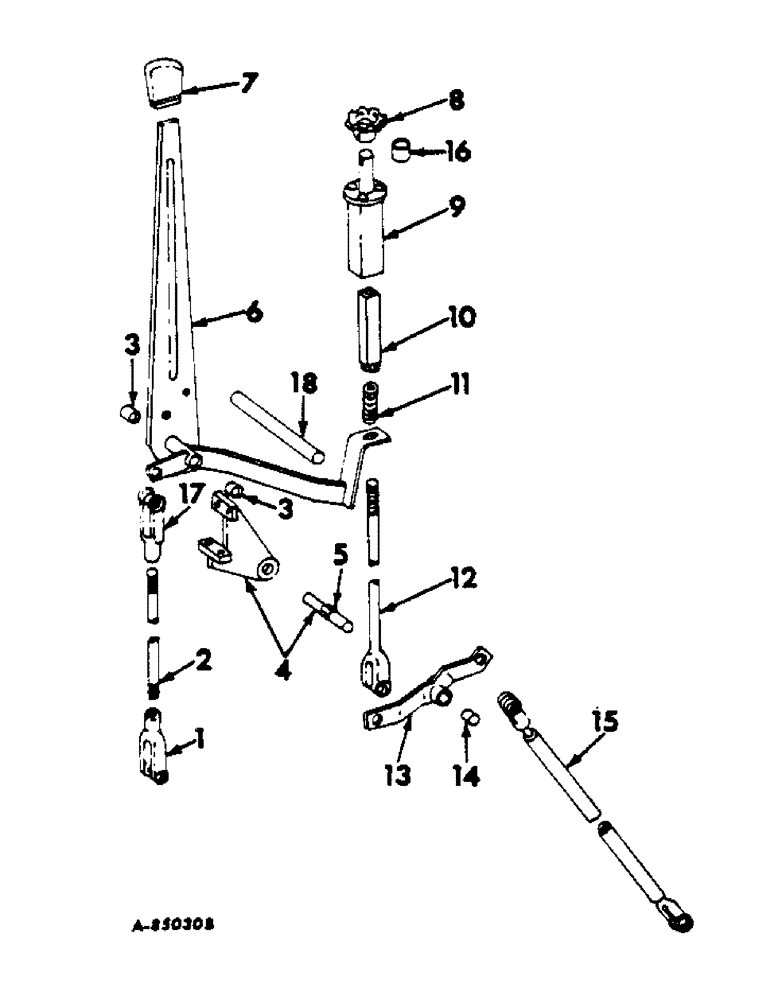

Запчасти Case IH 622 (H-16) - CONTROLS, DRUM HEIGHT AND DOWN STOP CONTROLS Controls

1

673477R1

control rod end

2шт.

20286R1

SPLIT PIN/SAFETY PIN

3/16 x 1-1/32 C-Z std-hd

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

2

673476R1

control

2шт.

120368

NUT,5/16"-24, G5

2шт.

3

48227D

BUSHING

drum control lever, 8 used w/hydraulic drum control

4шт.

4

672676R11

ASSY, drum down stop rockshaft

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

551177R1

WASHER

21/32 x 1-1/4 x .0598

2шт.

103375

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

2шт.

5

673325R1

drum down stop rockshaft support

1шт.

6

673465R1

ASSY, drum control LH

1шт.

6

673469R1

ASSY, drum control RH

1шт.

6

201093C1

ASSY, drum control LH, used with hydraulic drum control attachment

1шт.

6

201094C1

ASSY, drum control RH, used with hydrualic drum control attachment

1шт.

7

382805R1

KNOB

control

2шт.

8

672684R1

KNOB

down stop adj control

2шт.

9

672680R91

ROD

ASSY, drum downstop adj upper

2шт.

10

673867R1

SLEEVE ASSY, drum downstop sliding

2шт.

23299R1

3/32 x 3/8 C-Z slt-spring

2шт.

11

514726R2

drum downstop adj upper

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

12

672677R91

ASSY, drum downstop threaded

2шт.

121741

FENDER

5/16 x 31/32 C-Z rod end

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

13

672673R91

ASSY, drum downstop rocker LH

1шт.

13

673202R91

ASSY, drum downstop rocker RH

1шт.

14

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

drum downstop rocker arm

2шт.

15

672671R91

ASSY, drum downstop lower

2шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

Rod end 5/16" x .940", HDN

4шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

16

30460V

SPACER, downstop adj control knob

2шт.

23296R1

PIN, 1/8 x 3/4 C-Z slt-spring

2шт.

17

213-315

CLEVIS

5/16-24 x 1-15/16 shord adj rod end

2шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

5/16 x 31/32 C-Z rod end

2шт.

137159

COTTER PIN

3/32" x 5/8"

2шт.

18

673473R1

propulsion control, for hydrostatic drive only

1шт.
