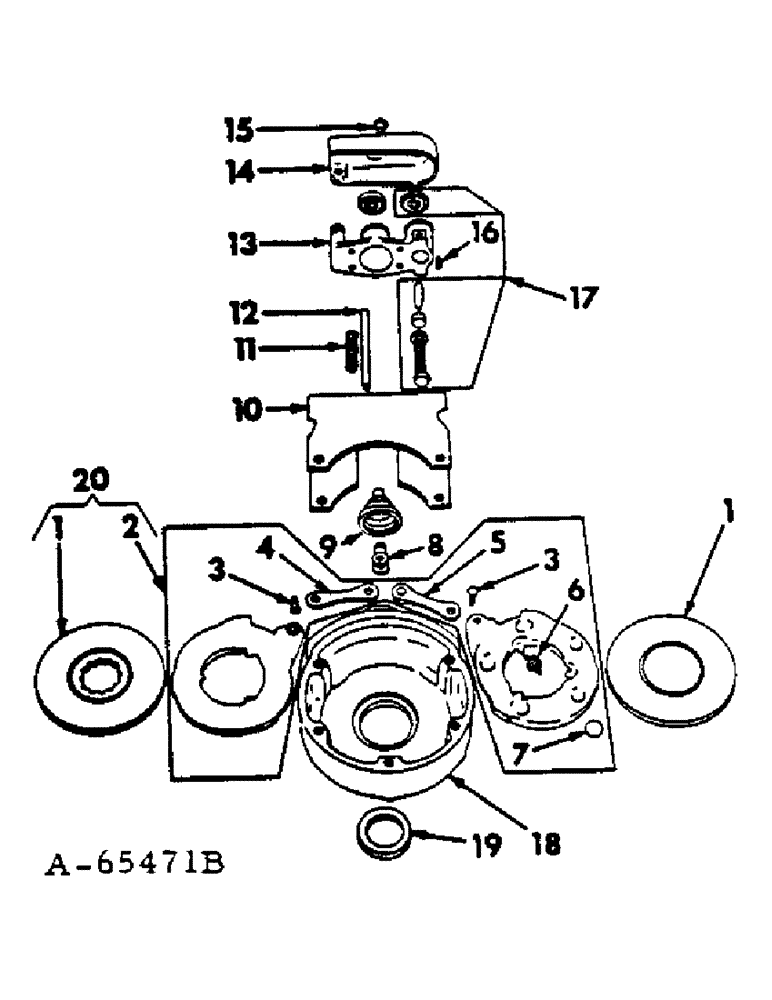

Запчасти Case IH 622 (H-11) - CONTROLS, BRAKES Controls

1

368179R91

BRAKE

DISC ASSEMBLY, middle

1шт.

2

366182R92

BRAKE DISC

ASSEMBLY, actuating, composed of (5) ball 16028R1, link 357113R1, link 357114R91, nut 5/16NF 103025, (3) spring 619731C1, (2) stud 354642R1

2шт.

3

354642R1

STUD

4шт.

114493

JAM NUT,Jam, 5/16"-24, G5

4шт.

4

357113R1

LINK

actuating plain

2шт.

5

357114R91

LINK

actuating yoke

2шт.

6

619731C1

SPRING

extension, replaces 357116R1

6шт.

7

16028R1

BALL

10шт.

8

357043R1

CLEVIS,3/8" - 24

YOKE, brake actuating

2шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

7/16 x 1-15/16 rod end

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

9

381699R1

BOOT

wheel brake

2шт.

10

665986R2

brake wheel cylinder

2шт.

186292

BOLT,Hex, 7/16" - 14 x 4 1/4", Gr 5

SCREW, 7/16-14 x 4-1/4 hex-hd cap

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

11

667480R1

SPRING

brake compression

2шт.

12

665995R1

ROD

brake pull

2шт.

425-117

NUT,7/16"-20, G5

7/16-20 hex.

6шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

13

663920R11

CYLINDER

ASSEMBLY, brake wheel left, includes Ref. 17

1шт.

13

662614R11

BRAKE ASSY.

CYLINDER brake wheel right, includes Ref. 17

1шт.

17445R1

BOLT,Hex, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd mach

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

8шт.

14

665998R1

brake

2шт.

441373

1/2 x 2-1/4 str 1/2" x 2 1/4"

2шт.

15

354630R1

NUT

ball seat

2шт.

16

660901R1

VALVE

bleeder

2шт.

17

665989R91

PISTON

KIT, brake service, consists of (1) plunger (NSS), (1) spacer (NSS), (2) cups (NSS), (1) piston (NSS), (1) spring (NSS), (1) boot (NSS)

1шт.

18

574914R2

HOUSING

wheel brake

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

10шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

6шт.

19

380637R91

SEAL,44.45mm ID x 66.72mm OD x 5.08mm Thk

brake housing dirt

2шт.

20

368178R91

BRAKE

ASSEMBLY, wheel

2шт.
