Запчасти Case IH 622 (H-10) - CONTROLS, BRAKE PEDALS AND LINES Controls

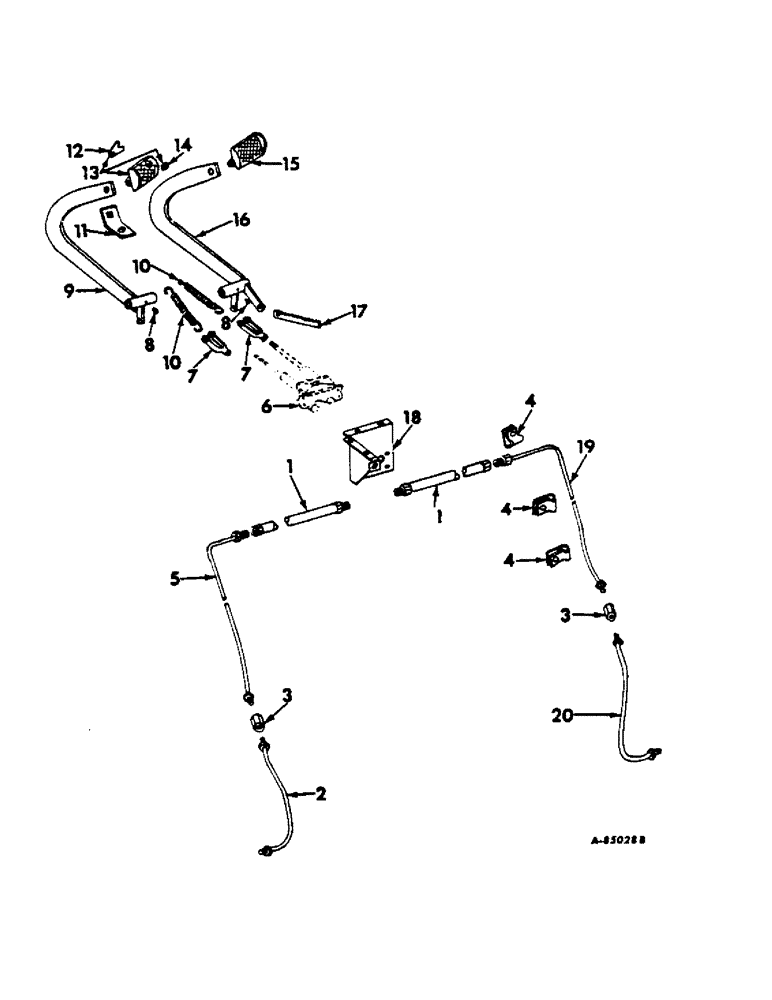

Схема запчастей Case IH 622 - (H-10) - CONTROLS, BRAKE PEDALS AND LINES Controls
4
1
9
7
16
4
18
8
7
5
10
17
20
19
1
2
10
3
12
9
11
3
13
14
15
4

Артикул

Название

Примечание

Количество

1

201902C1

HOSE ASSY.

brake, 616 000656 and up, 622 001315 and up

2шт.

2

672831R11

ASSY, brake lower LH, belt drive

1шт.

2

674646R11

ASSY, brake lower LH, hydrostatic drive

1шт.

3

NLS

NO LONGER SERVICED

7/16-24 inverted flared tube (PN 137413)

2шт.

4

64121D

line

1шт.

4

6885H

CLIP

brake

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

672829R11

ASSY, brake upper LH, 616 CH501M thru 000655, 622 CH501M thru 001314

1шт.

5

202096C1

ASSY, brake upper LH, 616 CH000656 and up, 622 CH001315 and up

1шт.

6

CYLINDER ASSY, brake master, see section H brake master cylinder

1шт.

7

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

3/8-24 light adj rod end

2шт.

74158H

CLEVIS PIN,3/8" x 1.344"

3/8 x 1-11/32 rod end

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

8

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 drive type str lub, replaces 443567

2шт.

9

672833R91

PEDAL ASSY.

brake LH

1шт.

10

48599DA

SPRING

brake pedal return

2шт.

11

662387R1

ANCHOR

CLIP, spring

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

43751DB

LATCH, PEDALS

LOCK, brake

1шт.

13

627511R91

PAD ASSY, brake pedal LH

1шт.

14

51293D

SPRING

brake lock

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 small b-hd

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

627510R1

PAD, brake RH

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

672836R91

ASSY, brake RH

1шт.

17

672838R1

brake pedal lock

1шт.

B921/2

PIN, 3/8 x 7/8 std-hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

672839R1

brake master cyl

1шт.

14990R1

BOLT

5/16 x 5/8 sq-nk crg

3шт.

17407R1

BOLT,5/16" - 18 x 5/8"

5/16 x 5/8 hex-hd mach

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

102639

NUT,5/8"-11, G5

3/8-24 hex. lock

2шт.

19

672830R11

ASSY, brake upper RH, 616 CH501M thru 000655, 622 CH501M thru 001314

1шт.

19

202097C1

ASSY, brake upper RH, 616 CH000656 and up, 622 CH001315 and up

1шт.

20

672832R11

LINE ASSY, brake lower RH

1шт.

Выбрано товаров: 49
