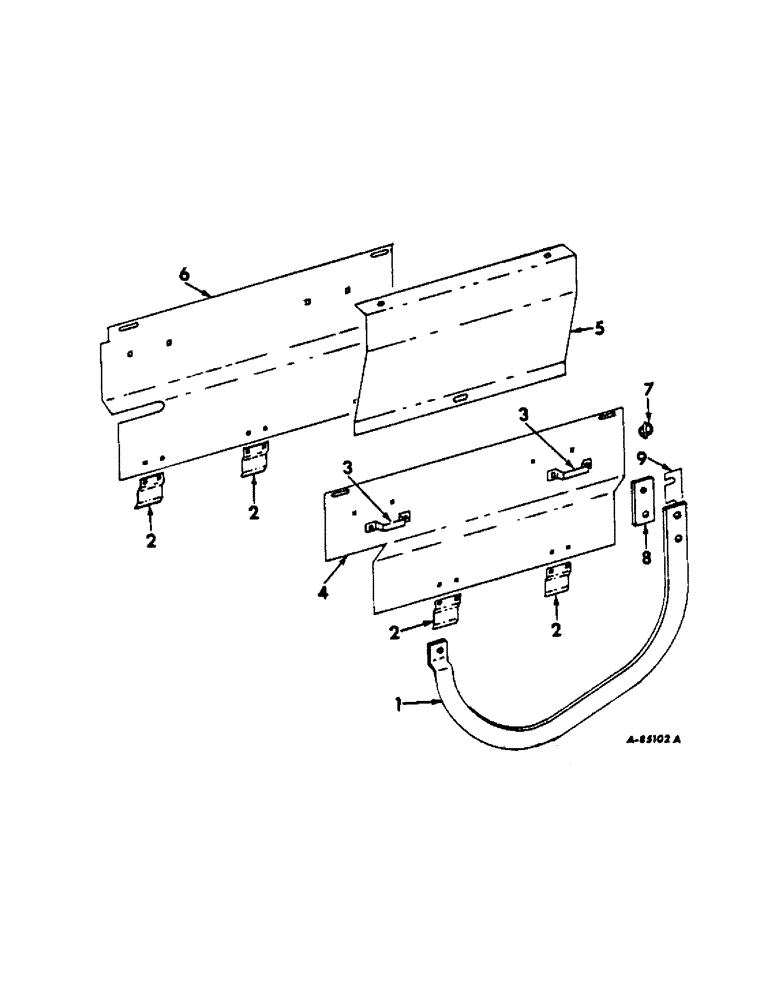

Запчасти Case IH 622 (A-12) - CHASSIS, RADIATOR AND SHEET METAL, MUD GUARD AND SHIELD Chassis, Radiator & Sheet Metal

1

200640C1

SCRAPER, mud LH

1шт.

1

200641C1

SCRAPER, mud RH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

200644C1

SUPPORT ASSY.

CLEAT, mud shield, 5 for belt drive, 4 for hydrostatic drive

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 x 3/4 znd sq-nk crg, 10 for belt drive, 8 for hydrosttic drive

1шт.

120376

NUT,5/16"-18, G5

10 for belt drive, 8 for hydrostatic drive 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 10 for belt drive, 8 for hydrostatic drive 5/16"

1шт.

3

200645C1

mud shield

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

201388C1

mud LH, hydrostatic drive

1шт.

5

204773C1

mud upper LH

1шт.

5

204774C1

mud upper RH, replaces 201387C1

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

201389C1

mud RH

1шт.

6

200643C1

mud guard, belt drive

1шт.

7

479696R91

AXLE PIN

ASSY, mud shield retainer, replaces 200647C1, note A

4шт.

8

200642C1

mud scraper

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 x 4 znd hex-hd cap

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

9

668754R1

SHIM

mud scraper

6шт.
